Hazardous-duty version

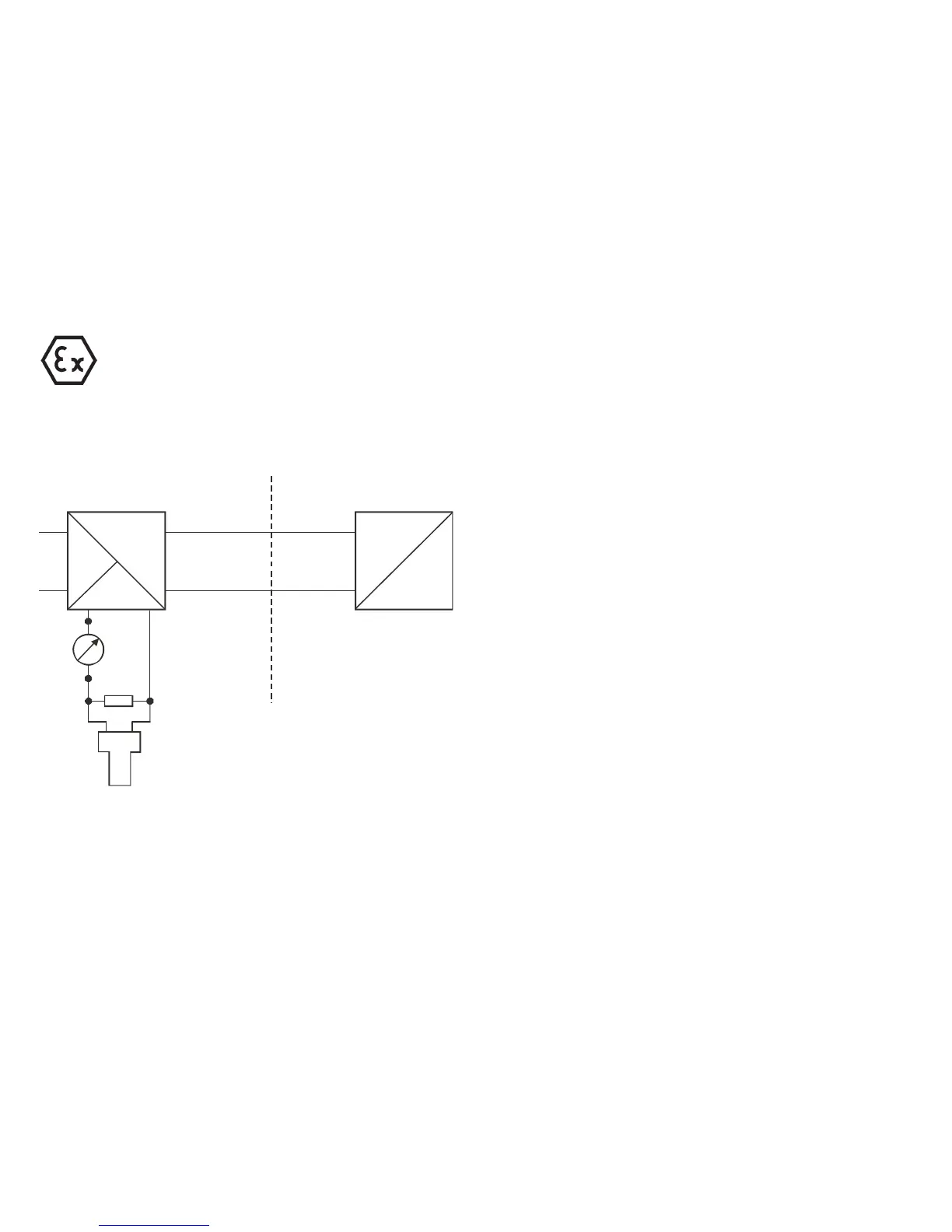

Connect the wires of the current loop to terminals 2 and 3 (any polarity).
The intrinsically safe certified device may only be used in conjunction with an other intrinsically safe certified equipment.
All the allowed electrical safety data indicated on the nameplate must be observed.
R
A
=
non area Ex
Ex area
HART
Mi roTREK 2c-wire
mA
L
[Ex ia]
4-20mA
Ex ia
An ’Ex’ repeater power supply unit must be used.
For calculation of the supply voltage the same applies as for the
standard non-’Ex’ version.
The connected Ex repeater must be HART®-compatible so that
it can be operated with the PCSTAR2 communication software or
the HART® communicator.
The HART adapter should be connected to the intrinsically safe
input of the Ex repeater!
The units with plastic coating can only be used in IIB gas class
hazardous area.
