Nobles Marksman 412 - Floor Tool; Herramienta para Pisos

OPTIONS
OPCIONES
41
Marksmant 412 (01–00)

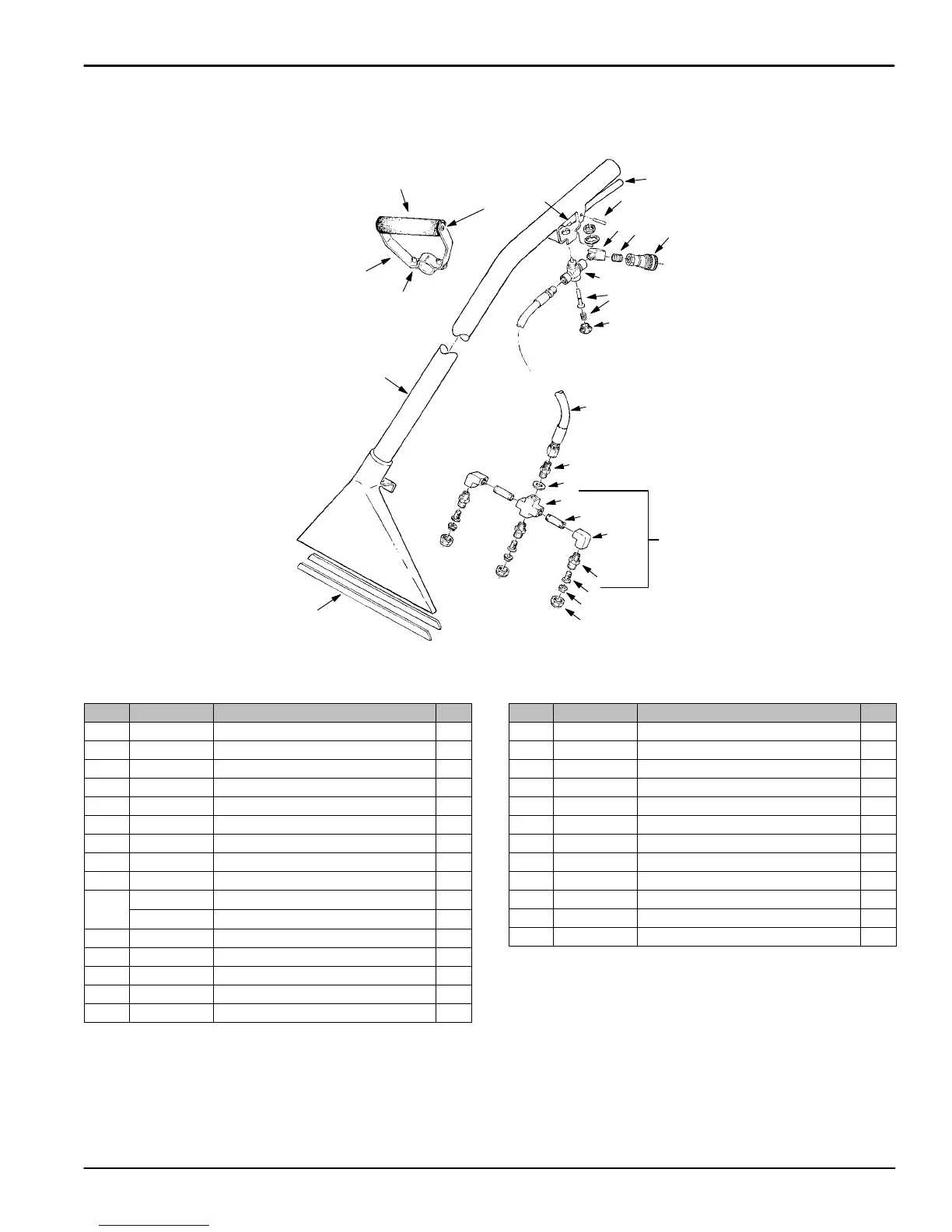

FLOOR TOOL
HERRAMIENTA PARA PISOS
3
1
2
5
4
6
7
8
10
11
9
12
13
14
15
16
17
20
21
22
19
23
24
25
18
5a
REF PART # DESCRIPTION QTY.
600048 FLOOR TOOL (COMPLETE) 1
1 200403.BK TOOL, FLOOR 1
2 200939 SHOES, S/S, FLOOR TOOL 2
∇3 200927 GRIP, ADJUSTABLE (COMPLETE) 1
Y4 200912 FOAM, GRIP 1
Y5 140259 SCREW, 1/4–20X5/8 2
Y5a 140834 SCREW, 1/4–20x3/4 2
6 200902 TRIGGER, FLOOR TOOL 1
7 200809 SLEEVE, TRIGGER 1
140605 PIN 1
8
140520 NUT, PUSH (NOT SHOWN) 2
9 210150 VALVE, FLOW CONTROL 1
10 190603 KIT, VALVE PIN & SPRING 1
11 N/A CAP, HEX, VALVE 1
12 150403 ELBOW, 1/4–45° 1
13 150615 NIPPLE, CLOSE 1/4 1
∇ ASSEMBLY
Y INCLUDED IN ASSEMBLY
∇ CONJUNTO
Y INCLUIDO EN EL CONJUNTO
REF PART # DESCRIPTION QTY.
14 150913 COUPLER, QUICK SER. 60 1
15 160170 HOSE, SOLUTION, LP 1
16 150606 NIPPLE, HEX 1/4” 1
17 140058 WASHER 1
∇18 700062 ASM., SPRAY BAR 1
Y19 150700 CROSS 1
Y20 150600 NIPPLE 2
Y21 150401 ELBOW, 90_ 1/4FX1/4F 2
Y22 200993 SPRAY BODY 3
23 200996 SCREEN, SPRAY BODY 3
24 200964 TIP 3
25 200994 CAP, SPRAY BODY 3
