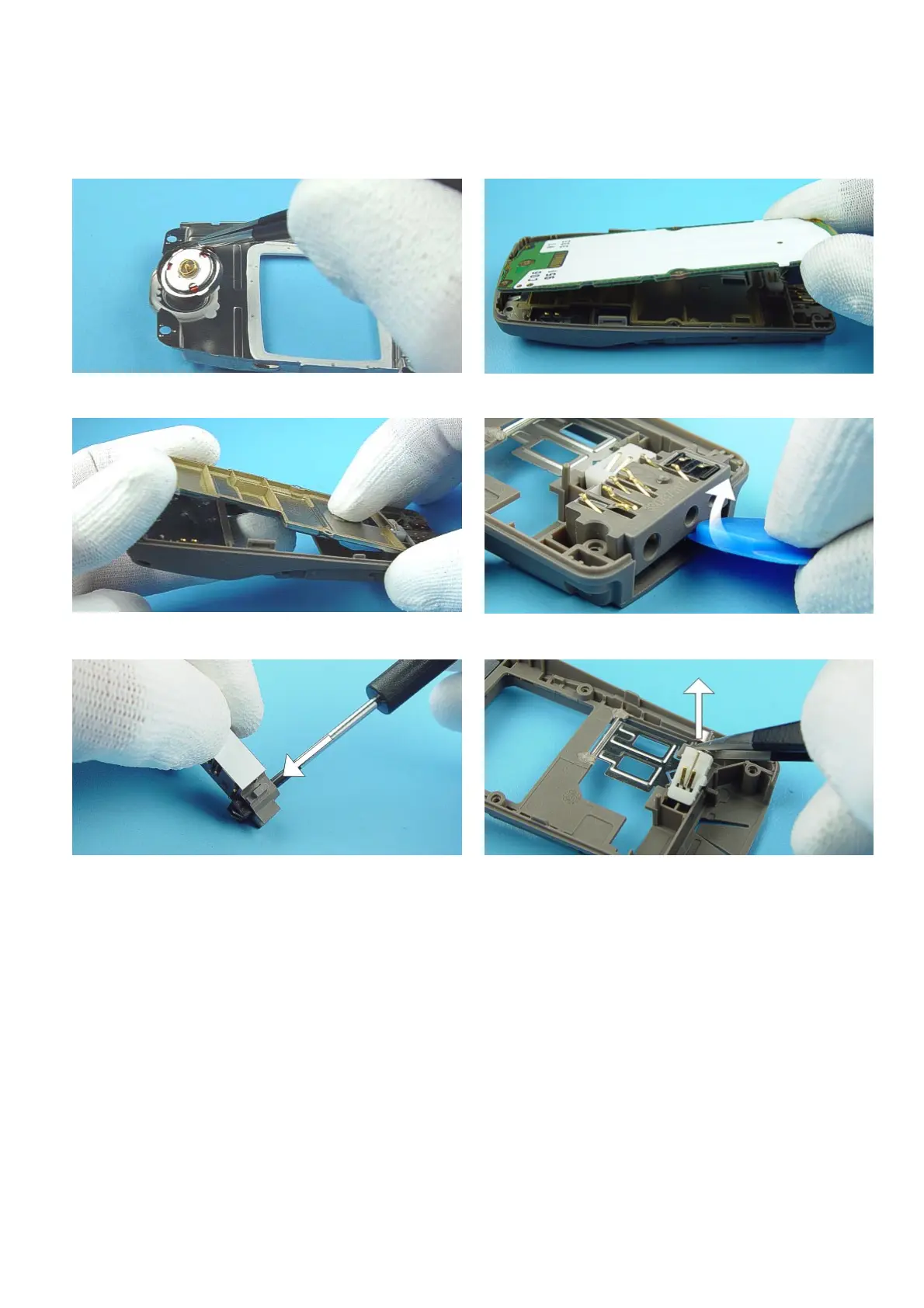

Use tweezers when removing the Speaker.
Take Engine Module from D-Cover.
Lever out Shielding.
If System Connector is tight in the D-Cover, SRT-6
should be used to loosen it.
Note that Microphone fits very tight in its guidance.
Carefully push out Microphone from System Connector.
Moderate force is required for this action.
Lever out Vibra Motor with tweezers.
