Configure a Gatewa
y 3 (G-240W-E)
114
Nokia WiFi Gateway 3 Product Guide
3FE-47464-AAAA-TCZZA
Issue: 01
Procedure 41
Restore factory defaults
1
Select Maintenance > Factory Default from the top-level menu in the Ethernet Gateway
window, as shown in Figure
49
.

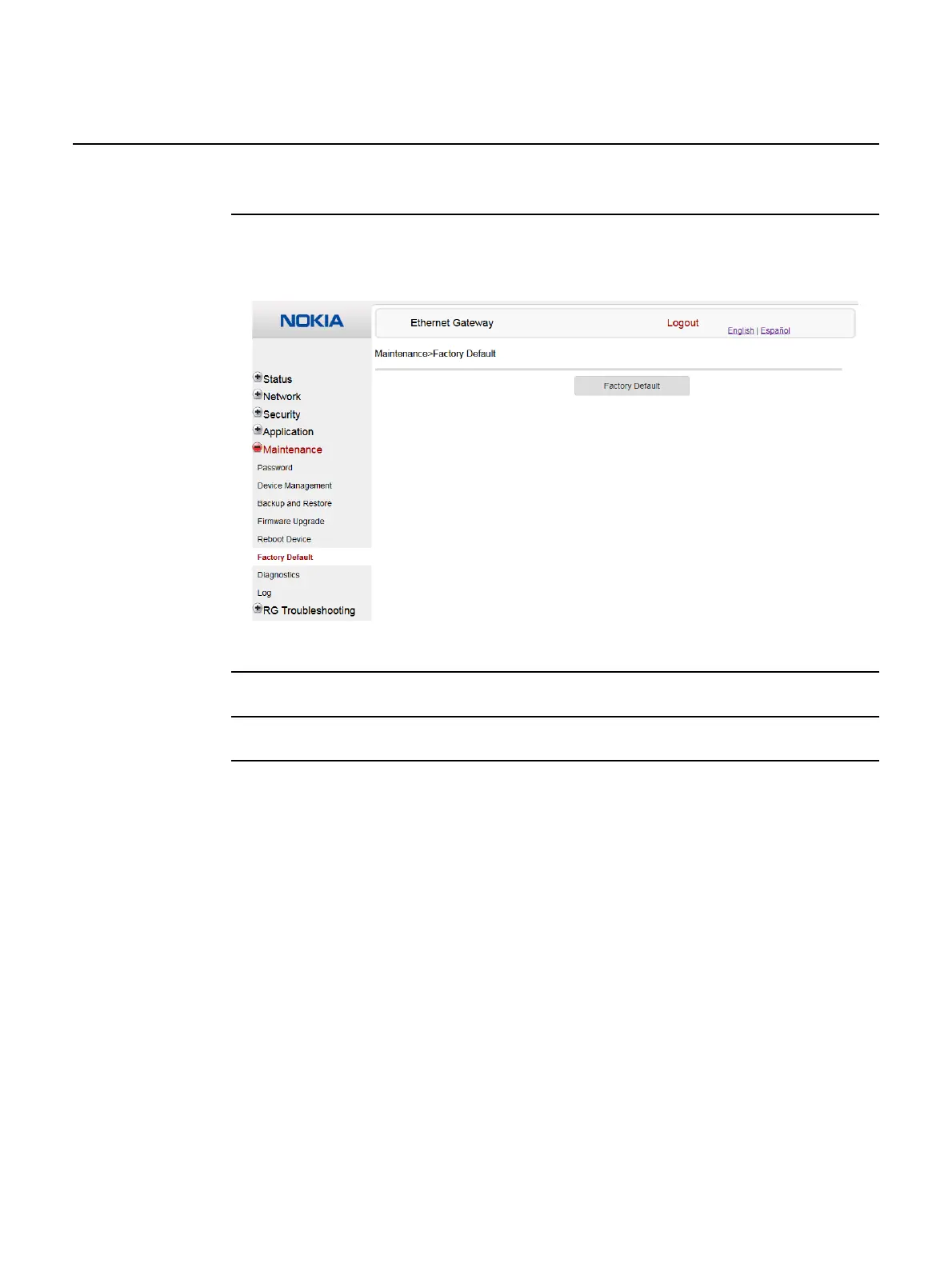

Figure 49
Factory Default window
2
Click Factory Default to reset the Gateway 3 (G-240W-E) to its factory default settings.
3
STOP. This procedure is complete.
