Replace a Gateway 3 (G-240W-E)
56
Nokia WiFi Gateway 3 Product Guide
3FE-47464-AAAA-TCZZA Issue: 01
5 Connect the fiber optic cable with the SC/APC adapter into the SC/APC connector.
i Remove the fiber optic connection cover (white cylinder), as shown in Figure 12.

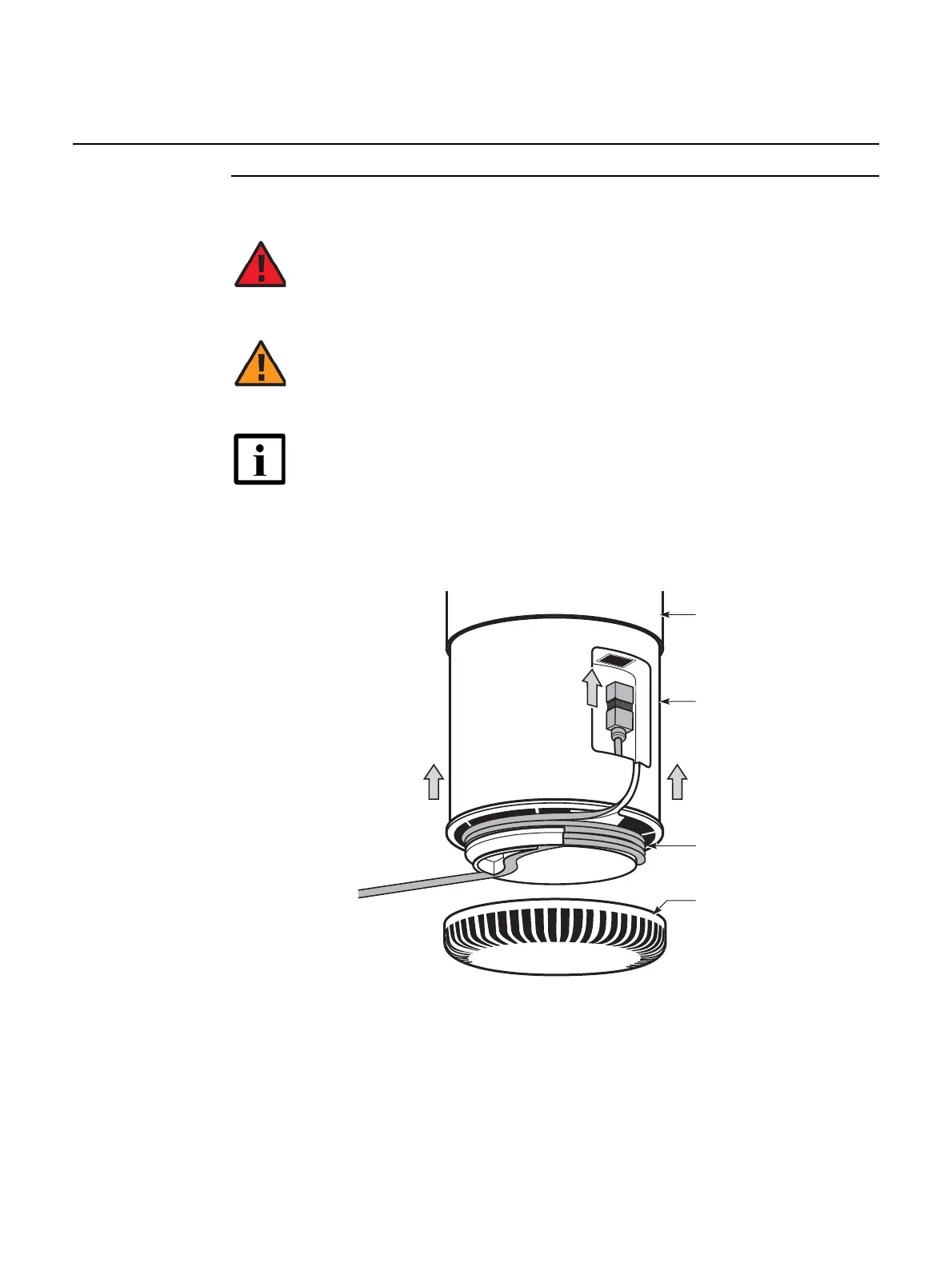

Figure 12 Gateway 3 (G-240W-E) cylinder removal
ii Detach the bottom cover.
iii Plug the fiber optic cable with the SC/APC adapter into the fiber optic connector, as
shown in Figure 12.
Danger — Fiber cables transmit invisible laser light. To avoid eye
damage or blindness, never look directly into fibers, connectors, or
adapters.
Warning — Be careful to maintain a bend radius of no less than 1.5 in.
(3.8 cm) when connecting the fiber optic cable. Too small of a bend radius
in the cable can result in damage to the optic fiber.
Note — Fiber cable preparation varies depending on the type and size
of the inside or outside plant fiber cable being spliced to the SC/APC fiber
optic pigtail cable.
Fiber raceway
Cylinder
Bottom cover
Fiber optic cable
and connector
28292
