Nokia WiFi Gateway 3 Product Guide Install a Gateway 3 (G-240W-E)
Issue: 01 3FE-47464-AAAA-TCZZA 51

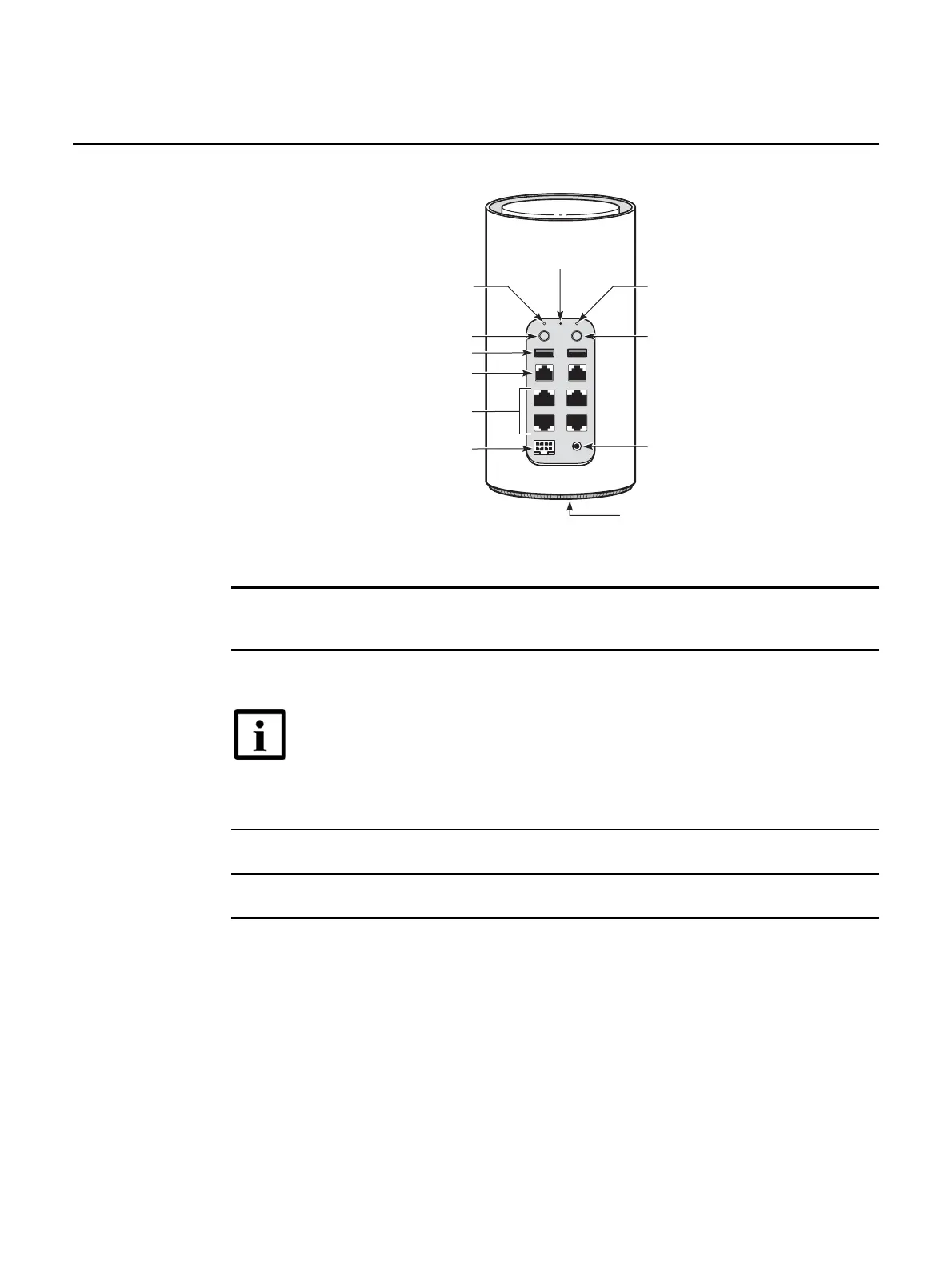

Figure 10 Gateway 3 (G-240W-E) connections
4 Connect the Ethernet cables to the RJ-45 ports; see Figure 10 for the location of the RJ-45
ports.
5 Connect the power cable to the power connector.
6 Power up the unit by using the On/Off power switch.
7 Verify the LEDs and voltage status.
8 Activate and test the services.
Note — Observe the following:
• Units must be powered by a Listed or CE approved and marked
limited power source power supply with a minimum output rate of
12 V dc, 3 A. The polarity of the power adapter plug must match the
Gateway 3.
ON/OFF
RESETGPON VOIP
WPS
LAN 1 LAN 2
LAN 3
POWERUPS
LAN 4
TEL 1 TEL 2
USB 1 USB 2
Power input
Bottom cover
Wi-Fi security button
VOIP LEDGPON LED
Reset
button
On/off button
USB ports (2)
POTS ports (2) RJ-11
Ethernet ports (4) RJ-45
UPS connector
28281
