Nomadic P1000 - Page 19

19

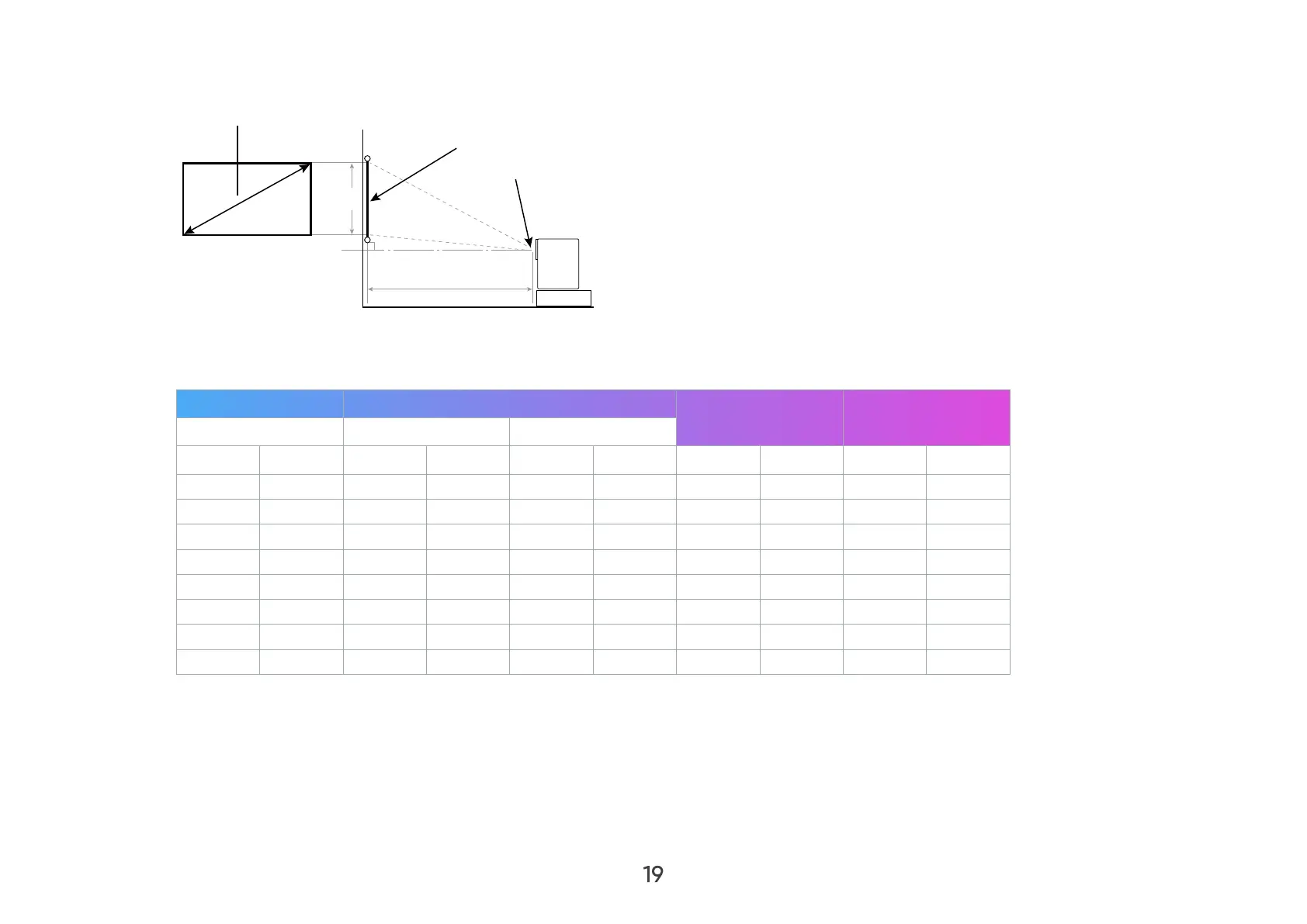

• 16:9 Image on a 4:3 Screen
(a)
(c)
(e)
(f)
(b)
NOTE:  (e) = Screen
(f) = Center of Lens
(a) Screen Size (b) Projection Distance
(c) Image Height (d) Vertical Offset
minimum maximum
inch mm inch mm inch mm inch mm inch mm
60 1524 32.9 835 39.4 1002 27 686 0.7 17
70 1778 38.3 974 46.0 1169 32 800 0.8 20
80 2032 43.8 1113 52.6 1336 36 914 0.9 23
90 2286 49.3 1252 59.2 1503 41 1029 1.0 26
100 2540 54.8 1391 65.7 1670 45 1143 1.1 29
120 3048 65.7 1670 78.9 2003 54 1372 1.4 34
150 3810 82.2 2087 98.6 2504 68 1715 1.7 43
180 4572 98.6 2504 118.3 3005 81 2057 2.0 51
NOTE: 
• It is recommended that if you intend to permanently install the projector, please physically test the projection size and distance
using the actual projector in situ before you permanently install it.
• To ne-tune the image focus, use the remote control or the projector OSD menus.
