Nomadic P1000 - Projection Dimensions

18

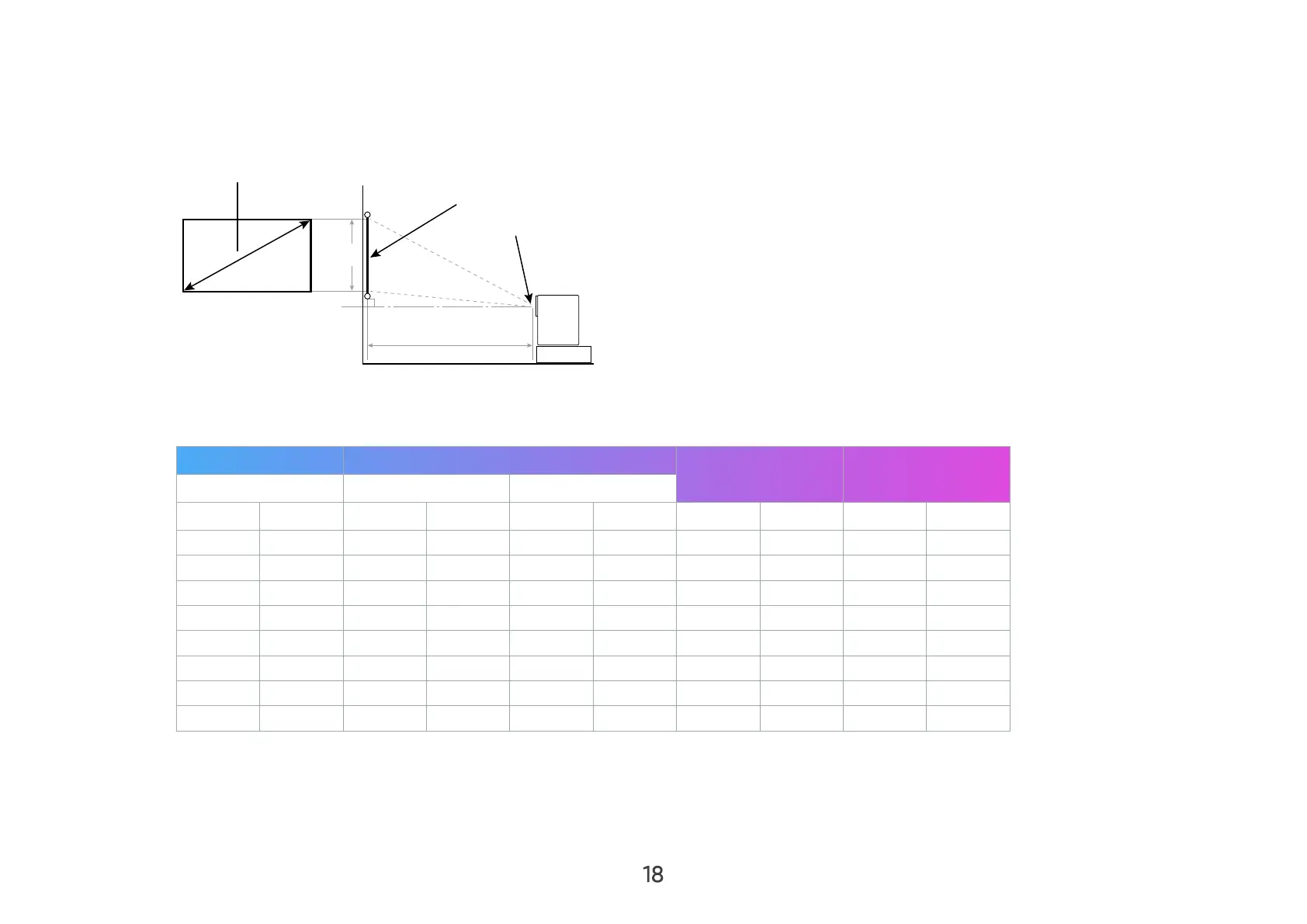

Projection Dimensions
• 16:9 Image on a 16:9 Screen
(a)
(c)
(e)
(f)
(b)
NOTE:  (e) = Screen
(f) = Center of Lens
(a) Screen Size (b) Projection Distance
(c) Image Height (d) Vertical Offset
minimum maximum
inch mm inch mm inch mm inch mm inch mm
60 1524 35.8 909 43.0 1091 29.4 747 0.7 19
70 1778 41.8 1061 50.1 1273 34.3 872 0.9 22
80 2032 47.7 1213 57.3 1455 39.2 996 1.0 25
90 2286 53.7 1364 64.5 1637 44.1 1121 1.1 28
100 2540 59.7 1516 71.6 1819 49.0 1245 1.2 31
120 3048 71.6 1819 85.9 2183 58.8 1494 1.5 37
150 3810 89.5 2274 107.4 2728 73.5 1868 1.8 47
180 4572 107.4 2728 128.9 3274 88.2 2241 2.2 56
