29

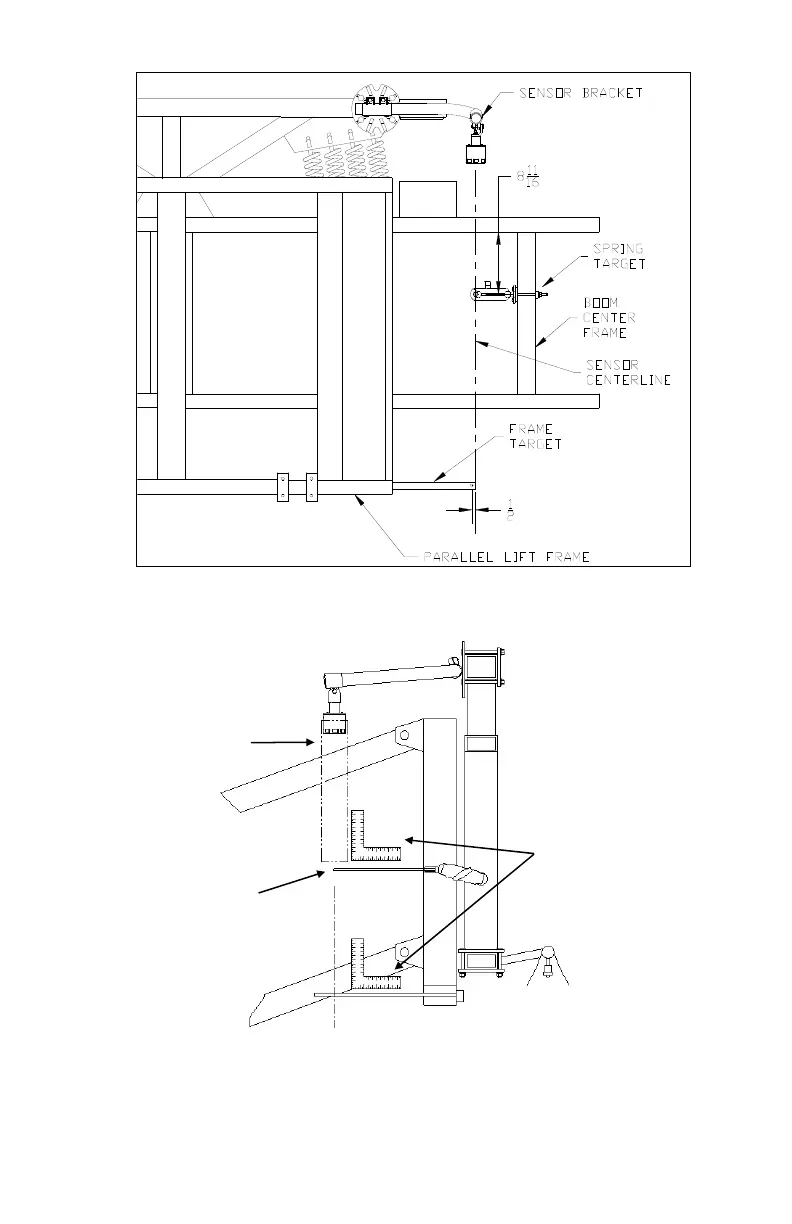

Figure 7 – Active Roll Rod and Sensor Details for a John Deere 47XX
(Front View)
Figure 8 – Active Roll Rod and Sensor Details for a John Deere 47XX
(Side View)
NOTE: Spring target cut 2”
past alignment tube
NOTE: Both targets are
perpendicular to
sensor axis
Sensor Alignment Tube
