ACTIVE ROLL SYSTEMS
An additional target rod is used on Active Roll systems. The following
includes additional details for mounting and adjusting the second rod.
Before installing or adjusting, ensure sprayer is level and the booms are
level.
The spring target should cross directly below the sensor centerline
(Figure 7).
The frame target should be located 1/2" off the centerline (Figure 7).
Trim spring target flush with the central axis of the sensor (Figure 8).
Both the spring and frame target should be perpendicular (90) to the
central axis of the sensor (Figure 8).
Ensure the sensor view of the ground is not obstructed by anything
other than the targets (e.g. hydraulic hoses from the wheel motor or the
lower parallel lift arm).
- a 12" diameter clear view of the ground is usually sufficient.

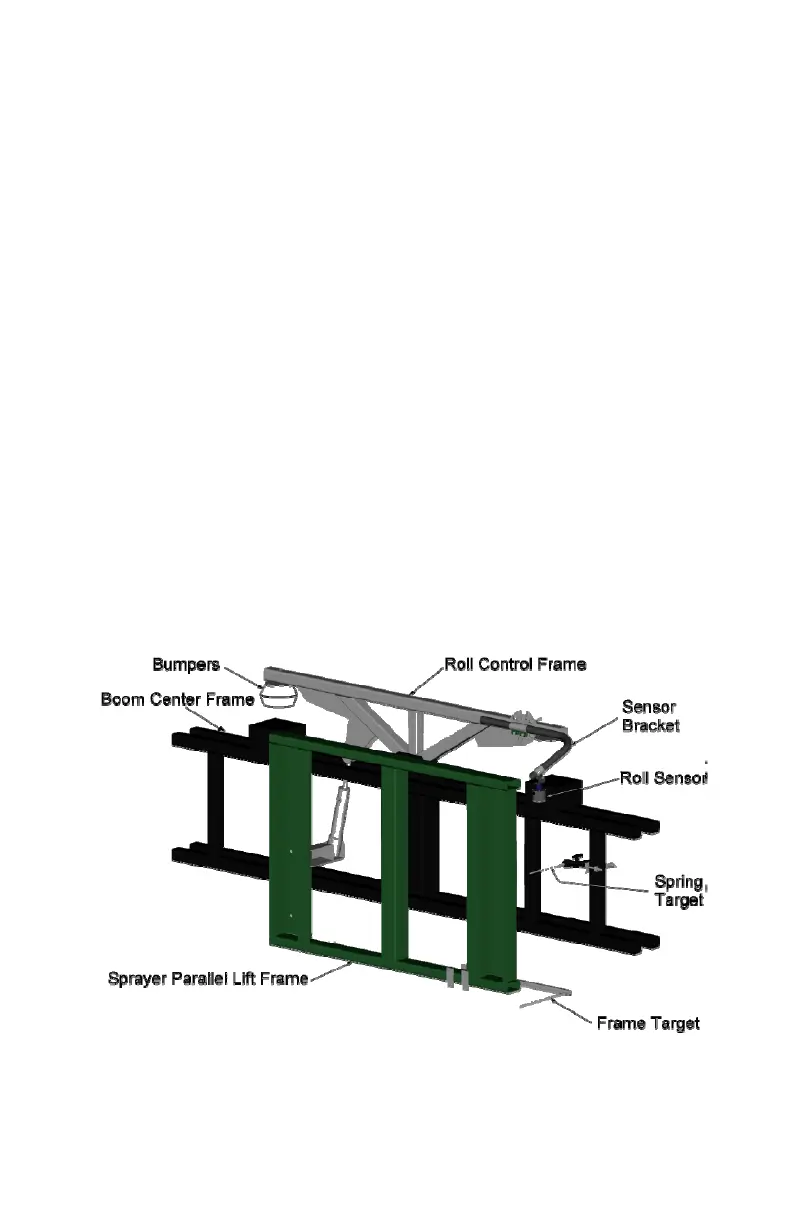

Figure 6 – 47XX Active Roll Setup
