Lubrication and Maintenance - Grader Components
Battery - Replace
The 12 volt battery is "Maintenance Free" and does not require electrolyte level checks.
NOTICE: Whenever working around the battery, disconnect the Master Switch.
NOTICE: Disconnecting battery too soon will prevent purging of the DEF lines after engine is shut down.
Damage to the DEF system and emission control system can occur.
• If equipped with a CAT engine, DO NOT turn master switch OFF while lamp is illuminated.
Lamp remains ON approximately 2 minutes after engine is shut down.
• If equipped with a Cummins engine, DO NOT turn master switch OFF for approximately 2 min-
utes after engine is shut down.
Keep the battery clean and protect terminals with terminal boots.
1. Turn ignition switch OFF and remove key.
2. Turn master switch OFF and remove key.
3. Remove the top panel.
4. Disconnect negative cable from battery.
5. Disconnect positive cable from battery.

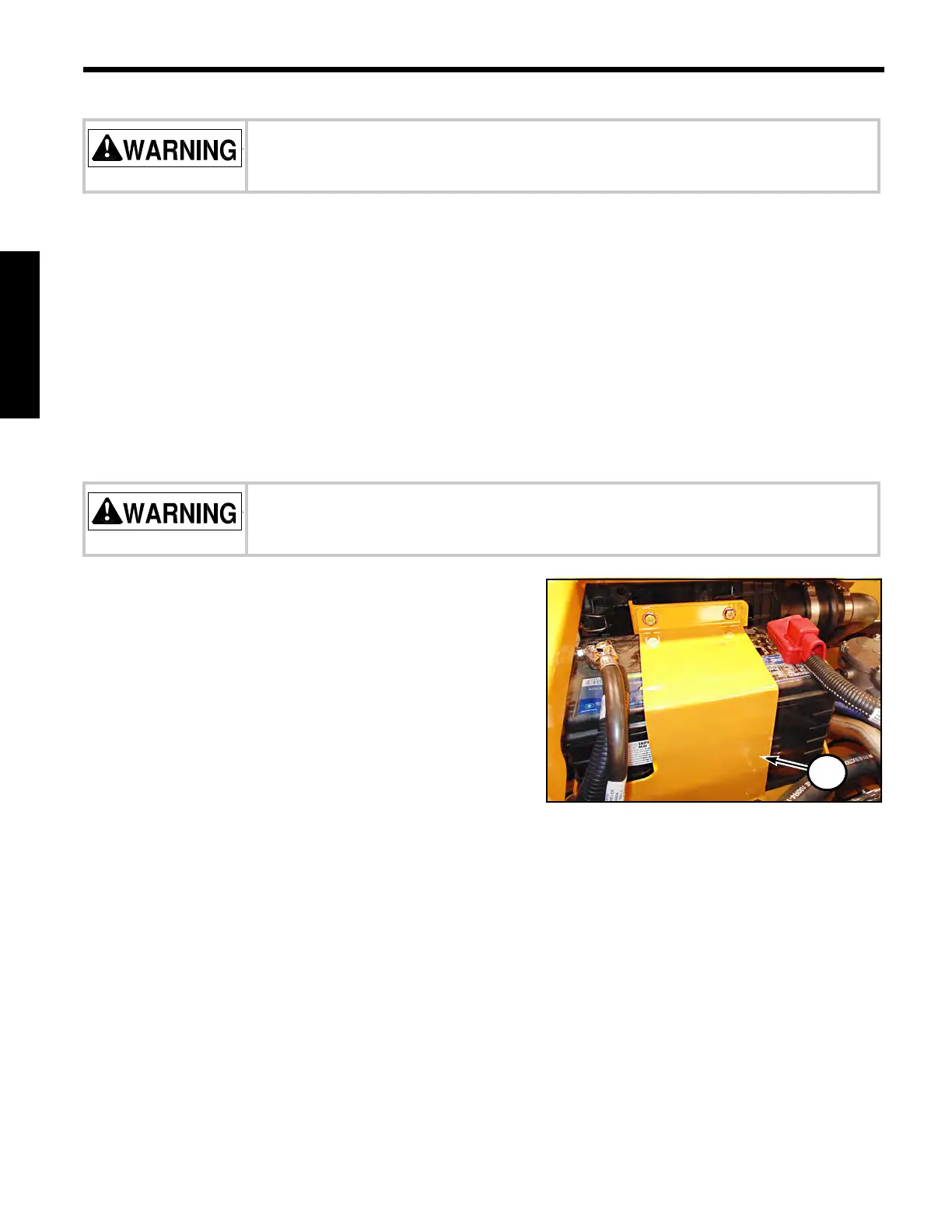

6. Remove nuts from retaining bracket
(1). Remove
bracket.
7. Remove battery. Dispose of old battery according to federal, state and local laws.
8. Secure new battery in place with bracket. Torque bolts to 34 N•m (25 lb-ft).
9. Connect positive cable to positive terminal on battery.
10. Connect negative cable to negative terminal on battery.
11. Install top panel. Torque bolts to 122–136 N•m (90–100 lb-ft).
Extinguish all smoking materials and open flames when working around
batteries. Battery gas is highly flammable.
Battery posts, terminals and related accessories contain lead compounds,
chemicals known to the state of California to cause cancer and reproductive
harm. Wash hands after handling.
