NORAM 65ET GRADER
2-7
General Information
2
Component Identification and Locations

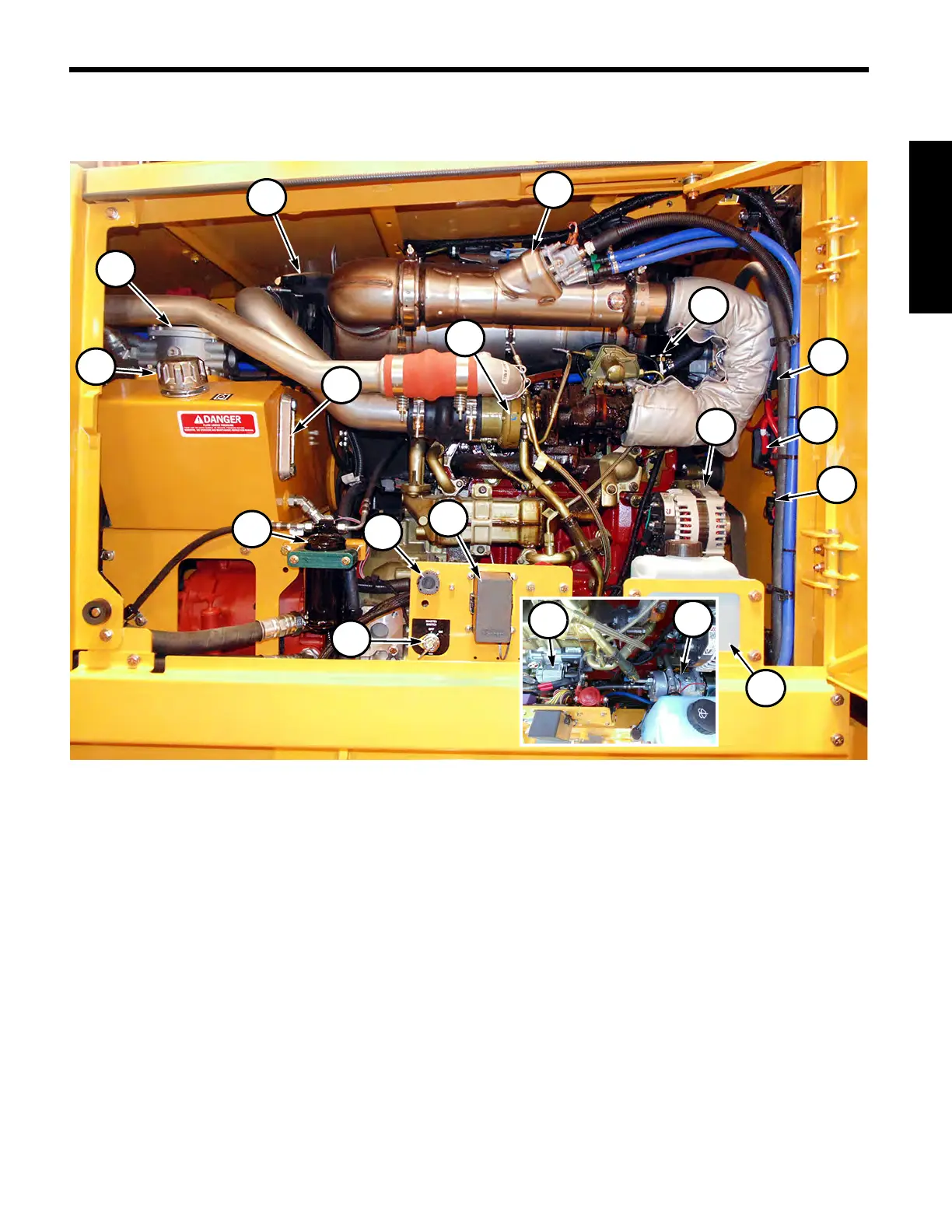

When equipped with the Cummins QSF3.8 Tier 4 Final engine, opening the right side engine
compartment door provides access to the following:
1
Air Filter Indicator
10
SCR System
2
Hydraulic Tank Filter
11
Heater Core Shutoff Valve
3
Hydraulic Tank Fill
12
Heater Control Circuit Breaker
4
Hydraulic Tank Sight Gauge
13
Stud Fuse
5
A/C Dryer
14
Main Power Circuit Breaker
6
Master Switch
15
Alternator
7
Engine Diagnostic Port
16
Washer Fluid Tank
8
Fuse Panel
17
Starter
9
Turbocharger
18
A/C Condenser
Cummins QSF3.8 Tier 4 Final
1
10
2
3
4
6
5
7
8
9
11
13
14
15
16
17
18
12
