NORAM 65ET GRADER
2-8
General Information
2
Component Identification and Locations

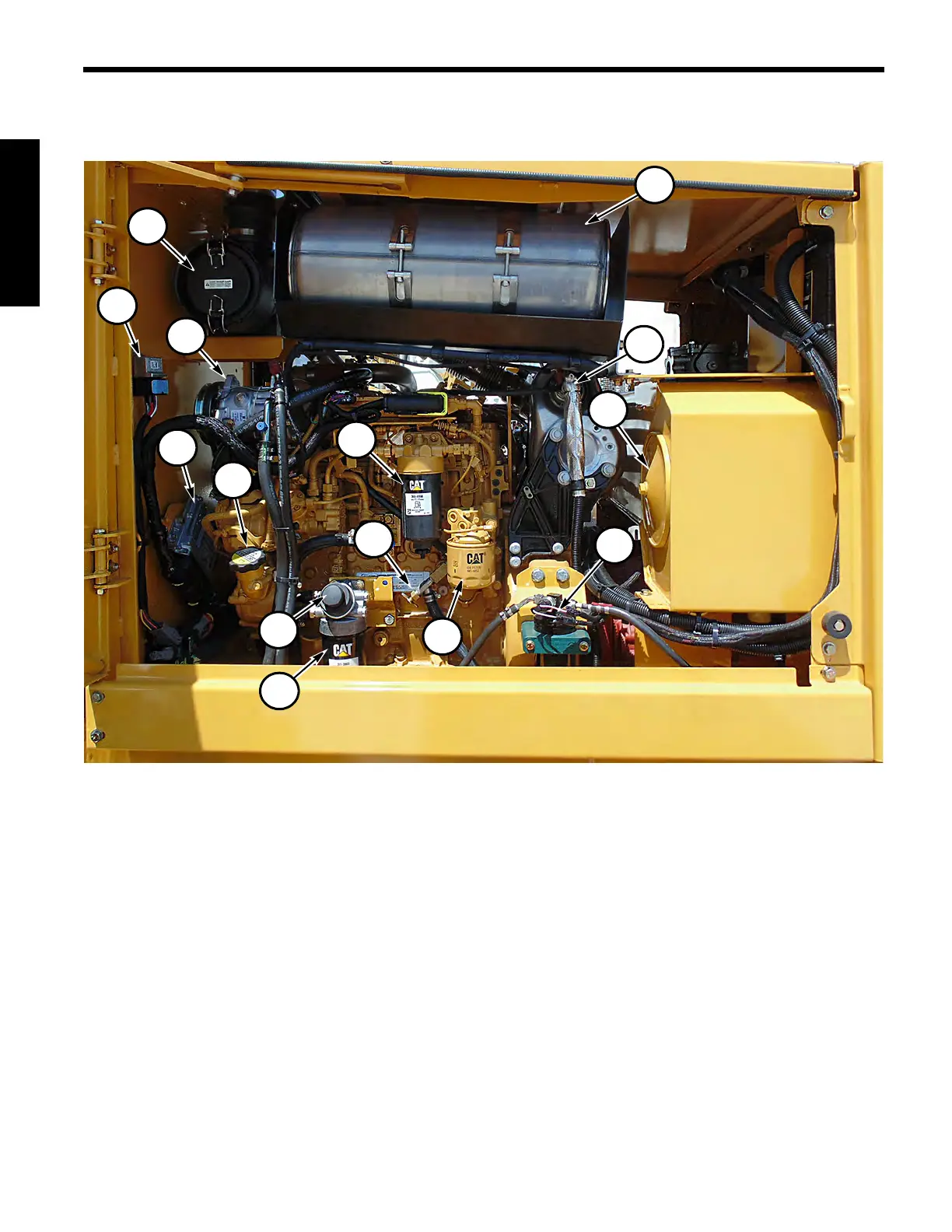

When equipped with the CAT C3.4B Tier 4 Final engine, opening the left side engine compartment
door provides access to the following:
1
Engine Electronic Control Module (ECM)
8
Fuel Primer
2
Glow Plug Control Unit (GPCU)
9
Water Separator
3
Diesel Exhaust Fluid (DEF) Injector
10
Fuel Filter
4
Selective Catalytic Reduction (SCR)
11
Engine Oil Filter
5
A/C Compressor
12
Engine Oil Fill
6
A/C Dryer
13
Hydraulic Tank Access Cover
7
Heater Core Shutoff Valve
14
Air Cleaner
2
5
1
3
CAT C3.4B Tier 4 Final
10
9
13
8
12
11
4
6
7
14
