NORAM 65ET GRADER
2-9
General Information
2
Component Identification and Locations

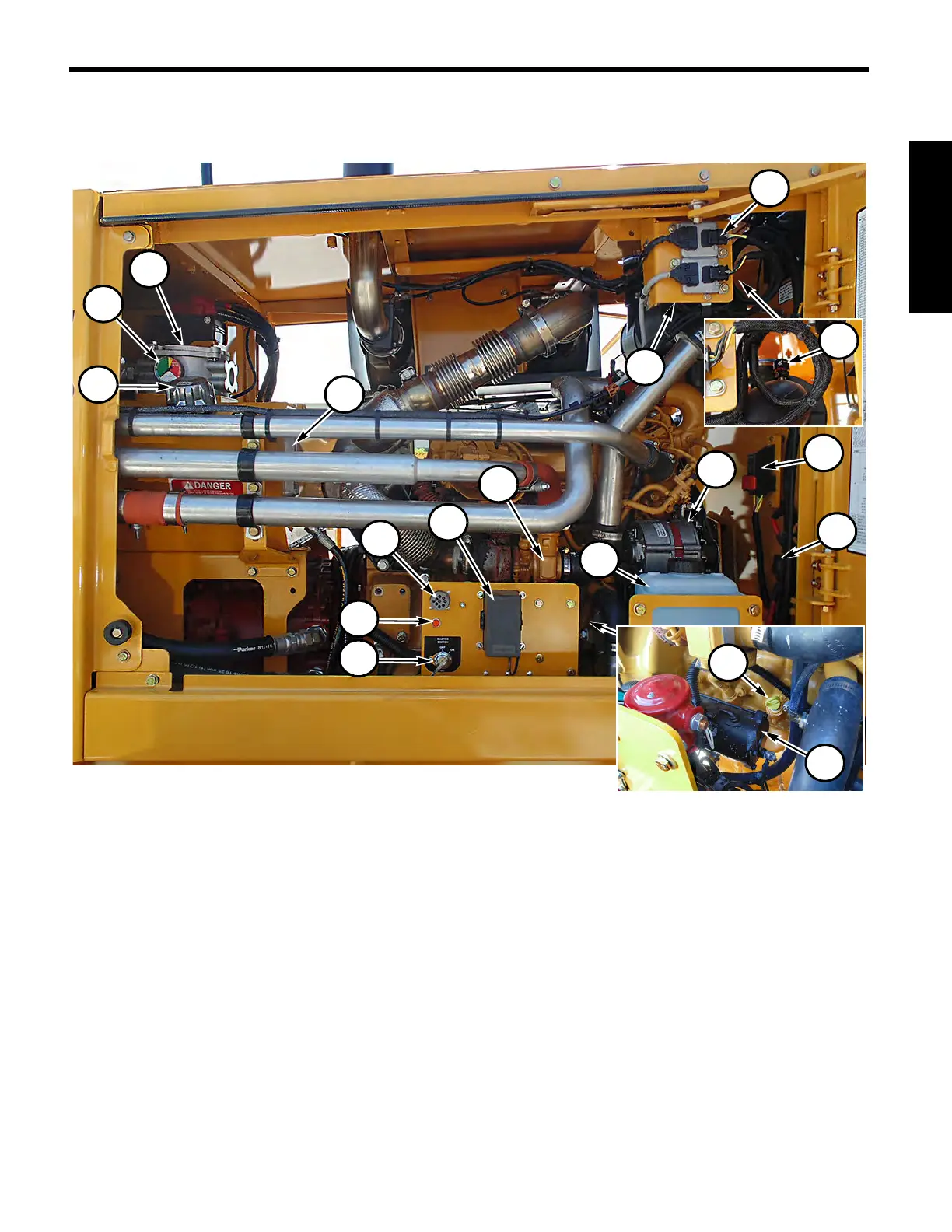

When equipped with the CAT C3.4B Tier 4 Final engine, opening the right side engine
compartment door provides access to the following:
1
Hydraulic Tank Filter
10
NOx Sensors
2
Hydraulic Filter Gauge
11
Ammonia Sensor (on back of panel)
3
Hydraulic Tank Fill
12
Air Filter Indicator
4
Hydraulic Tank Sight Gauge
13
Heater Control Circuit Breaker
5
Master Switch
14
Main Power Circuit Breaker
6
Wait To Disconnect Lamp
15
Alternator
7
Engine Diagnostic Port
16
Washer Fluid Tank
8
Fuse Panel
17
Engine Oil Dipstick
9
Turbocharger
18
Starter
1
CAT C3.4B Tier 4 Final
10
2
3
4
6
5
7
8
9
11
12
13
14
15
16
18
17
To Next Page
