Component Identification and Locations
Right Side Console
Throttle Control Lever

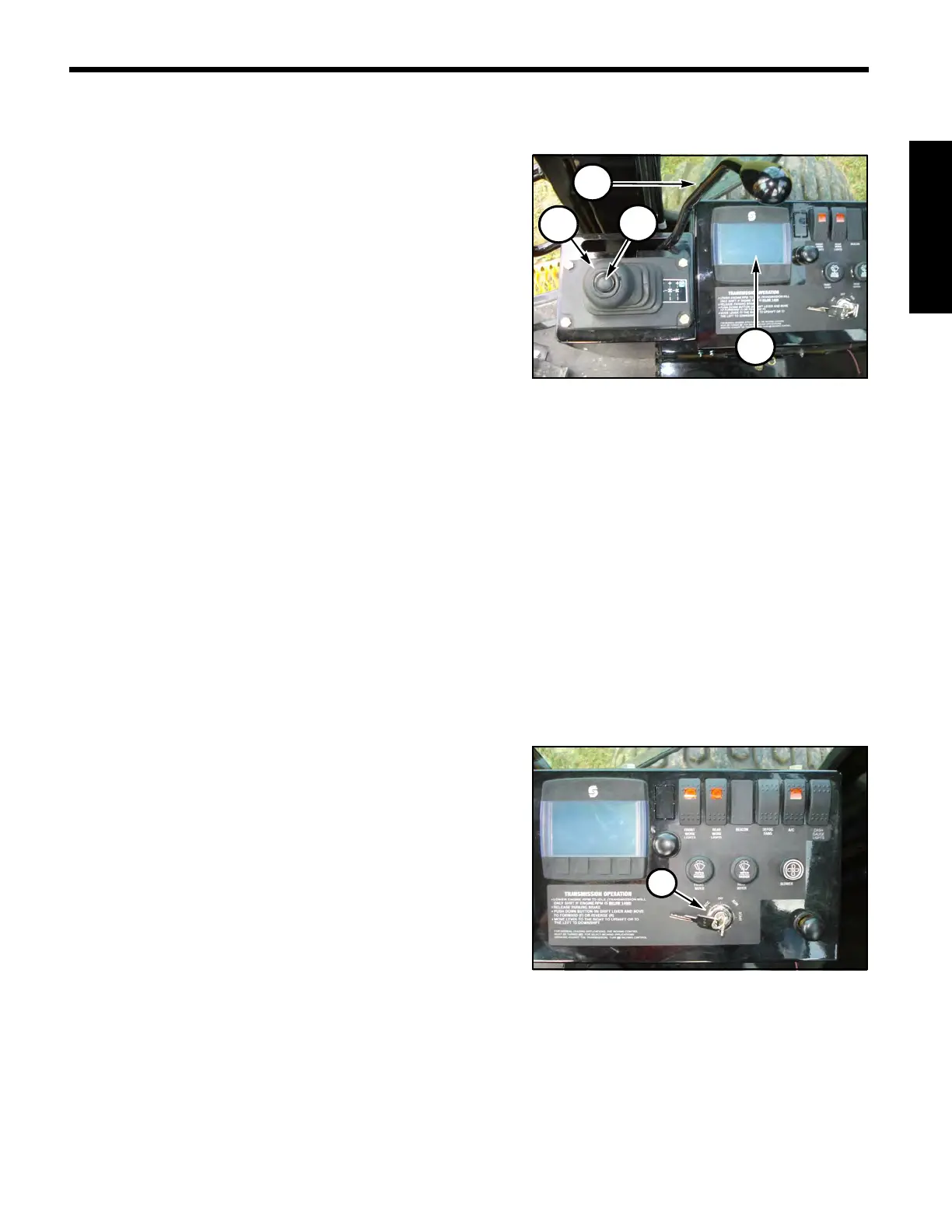

Lever (1) controls engine speed. Move the lever rearward
to decrease engine speed or forward to increase engine
speed.
Transmission Control Lever
NOTE: The transmission will not shift into gear if
the parking brake is applied. A message that the park
brake is applied appears in the display
(4).
Lever
(2) selects direction of travel and the desired speed (gear ratio). While holding down on the
Transmission Interlock Button
(3) move the shift lever forward to select forward movement or
rearward to select rearward movement. The transmission will shift into first gear forward or first
gear reverse. Move the lever to the right to increase transmission speeds and to the left to decrease.
The selected gear will be displayed on the Electronic Display
(4).
When shifting from forward to reverse, or increasing or decreasing gears it is not necessary to push
down on the interlock button, nor is it necessary to stop the machine. Decreasing engine speed when
shifting is recommended to reduce drive line shock loads and surging of the grader between gears.
When in reverse a backup alarm will sound.
Ignition Switch
Switch (1) is a key-operated, four-position rotary switch
that controls engine starting, stopping and accessories.
ACC - Accessories are on and the engine is off.
OFF - Engine and accessories are off. Rotating beacon,
turn signals, panel lights and flashers continue to
operate.
RUN - Engine operating position. All systems are
operating.
START - Activates the starter.
