NORAM 65ET GRADER
3-13
Operation
3
Moldboard and Implement Operation
Moldboard Side Shift

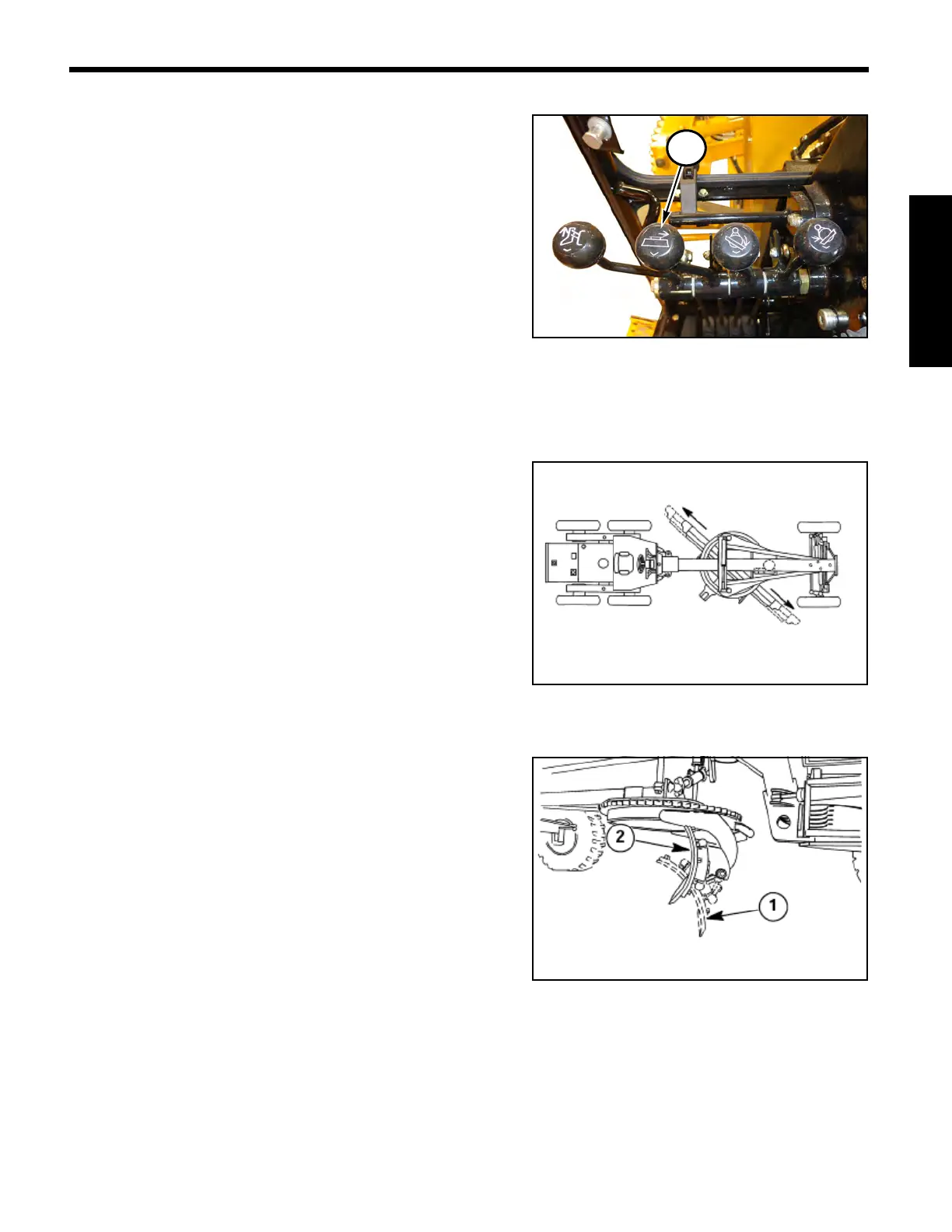

The Moldboard Side Shift Lever (1) moves the moldboard
side to side. The side shift function adjusts moldboard
position without changing the relative grade angle. Shift
the moldboard to one side to:
• Prevent tires from traveling too close to an edge.
• Work around objects such as mailboxes, bridge
abutments and utility poles.
• Place discharge of material.
Material is normally discharged between the rear tires or beyond the rear tires. Avoid driving on
discharged material.
The Moldboard Side Shift Lever moves the moldboard
right or left. Move lever forward to shift moldboard to the
right. Pull lever rearward to shift moldboard to the left.
Release lever to neutral to stop moldboard movement.
Moldboard Pitch
Moldboard pitch determines how aggressively the
material is handled. Tilt the moldboard forward
(1) to
create a rolling action of the material. Tilt the moldboard
back
(2) to slice or cut the material.
