NORAM 65ET GRADER
3-14
Operation
3
Moldboard and Implement Operation
Manual Moldboard Pitch Adjustment
1. Lower moldboard to the ground and apply Parking Brake. Moldboard should rest lightly on
ground with no downward pressure.
2. Pull hairpin clip and remove pin from pitch adjuster link.
3. Raise both ends of the moldboard with the moldboard height control levers to allow the moldboard
to tilt forward. To tilt moldboard back, lower moldboard. It may also be necessary to move the
grader slightly to allow moldboard to rotate back.
4. Set Parking Brake.
5. Insert pin into an appropriate slot where the inner and outer sleeves align on the adjuster link.
Secure with hairpin clip.

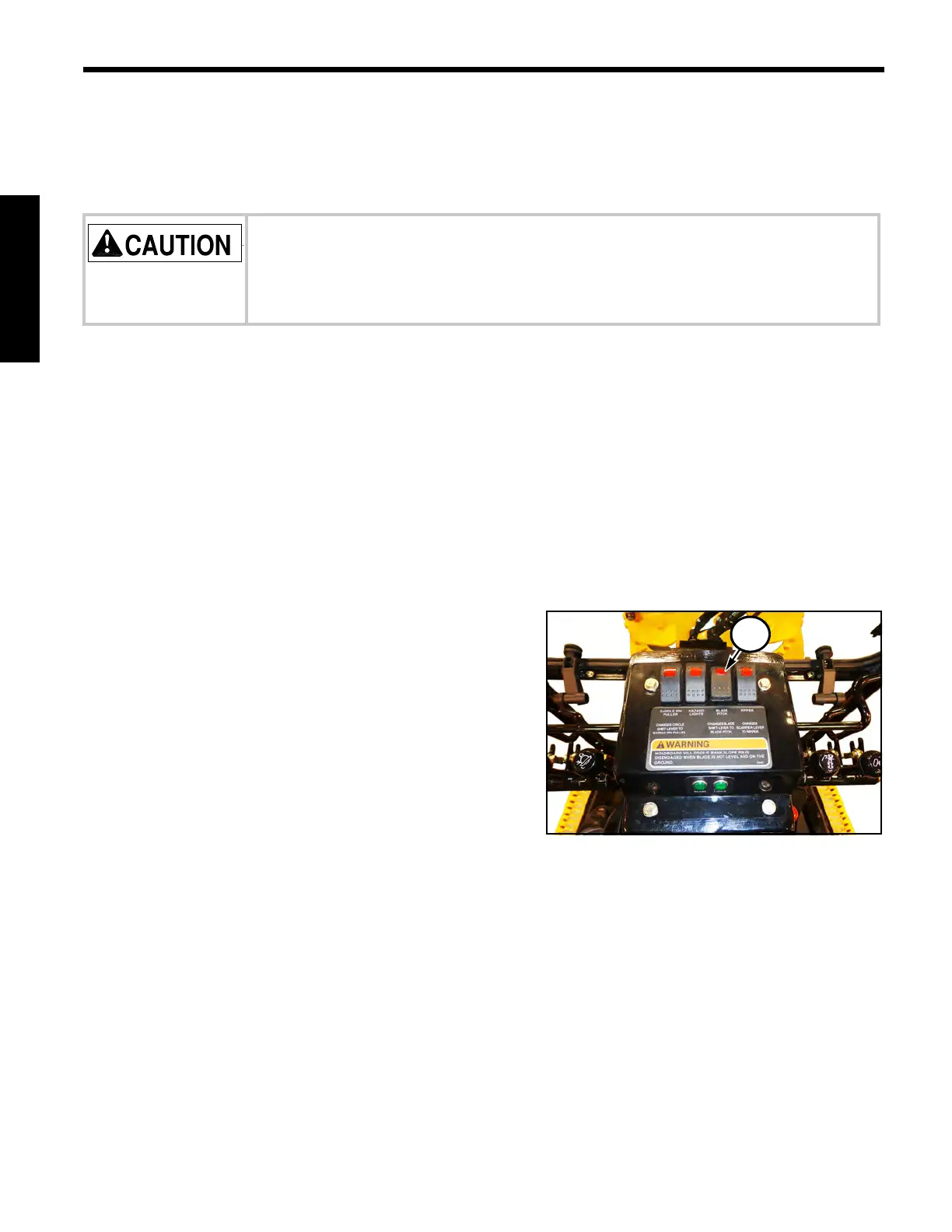

Hydraulic Moldboard Pitch (Optional)
An optional hydraulic moldboard pitch cylinder is
available to allow adjustment from the operator's seat.
The hydraulic moldboard pitch is controlled by the Side
Shift Control Lever when the Blade Pitch Switch
(1) is
activated. Move the lever forward to tilt the moldboard
forward. Move the lever rearward to tilt back. Release
the lever to stop moldboard movement.
Moldboard may fall forward and strike and injure you when pitch adjuster link pin
is removed.
Keep moldboard on the ground with the moldboard height control levers when
adjusting link.
