MITX-6922 Mini-ITX Motherboard Based on Intel QM67/QM77 Chipset
9

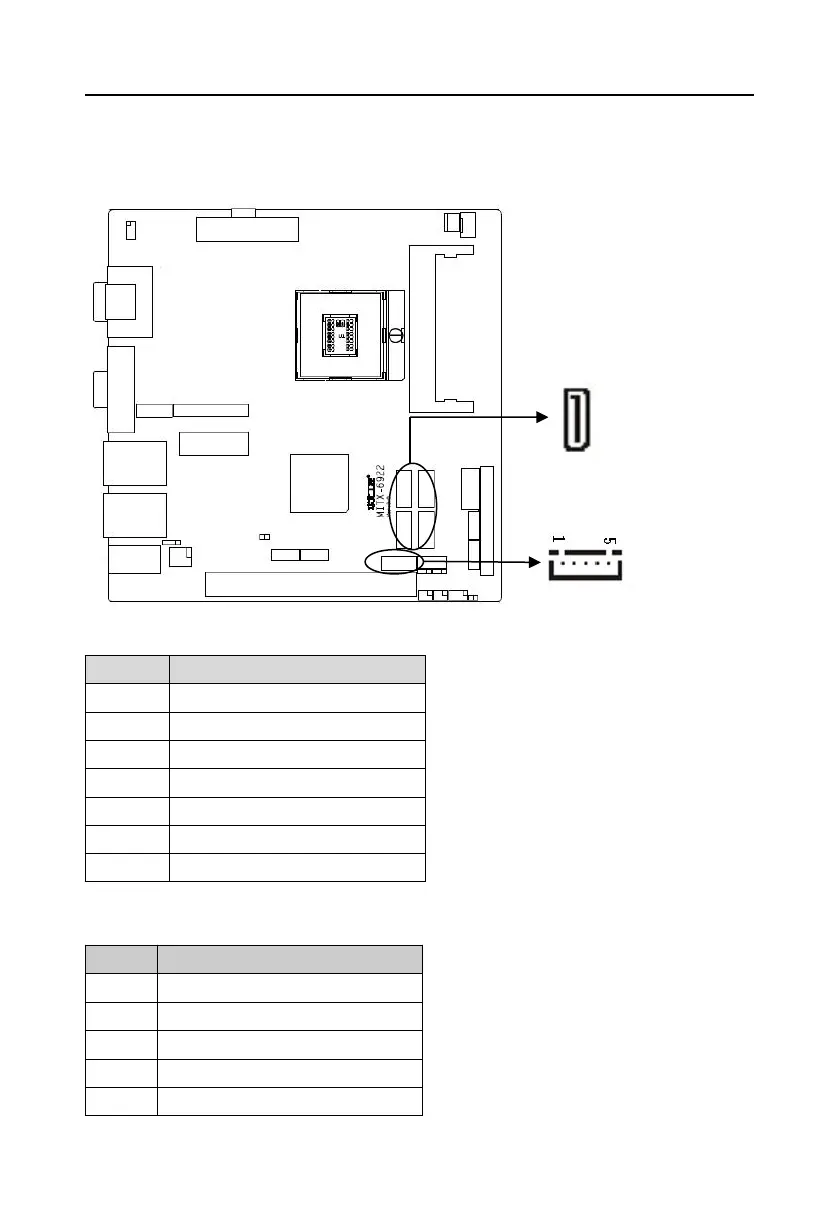

2.5.1 SATA Port（SATA1-SATA4，HDD_POWER）
On board 4xSATA port，provide 1x5Pin HDD power supply voltage interface.
SATA：
Pin
Signal Name
1
GND
2
TX+
3
TX-
4
GND
5
RX-
6
RX+
7
GND
JSATAPWR：
Pin
Signal Name
1
+3.3V
2
GND
3
+5V
4
GND
5
+12V
SATA1-SATA4
HDD_POWER
