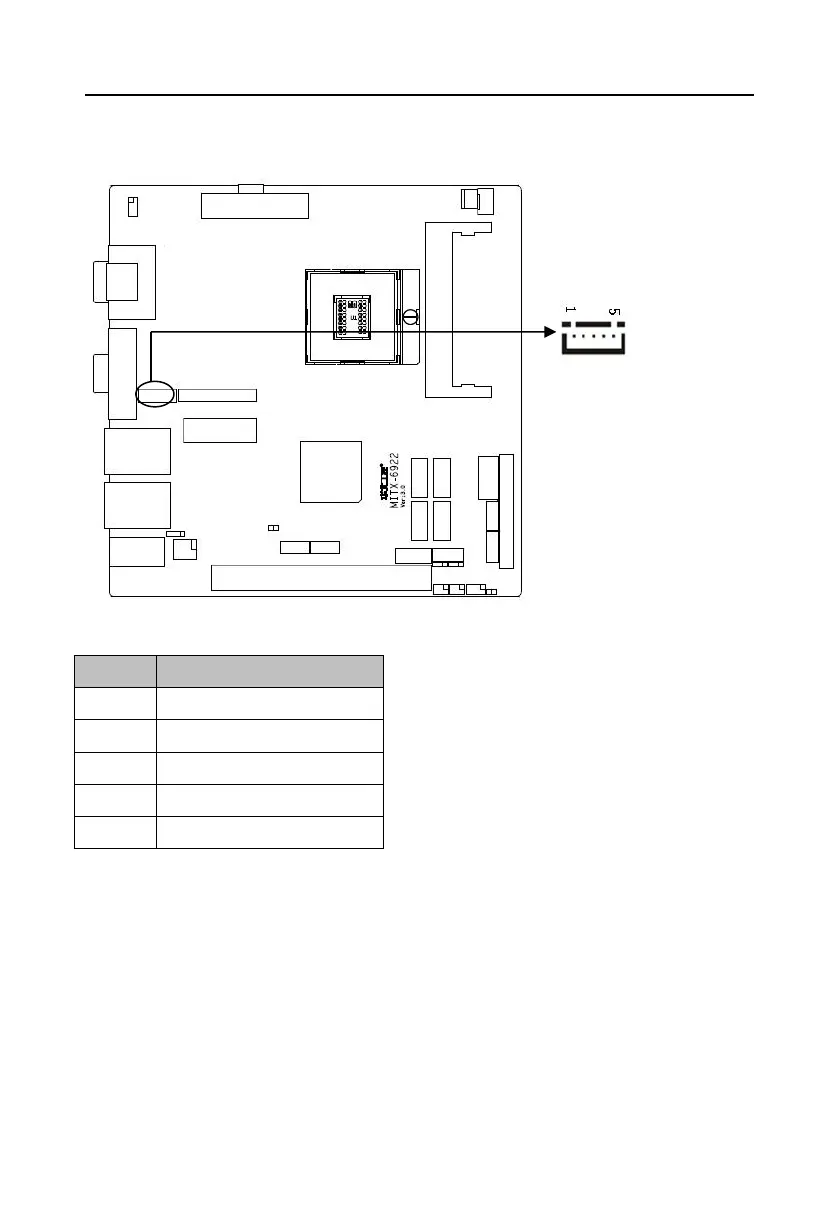

2.5.4 LVDS Power Supply Voltage（LVDS_BKLT）
LVDS_BKLT：
Pin
Signal Name
1
+5V
2
BKLT_CTRT
3
GND
4
BKLT_EN
5
+12V
2.5.5 USB Port（USB_12，USB_34，USB56_LAN1，USB78_LAN2）
External USB port and network interface，2x independent socket. Separately provide 2x
standard USB 2.0 port and 1 x standard RJ45 port. USB_12、USB_34 are built-in USB port，two
2×5Pin pin，can be transferred to 4 x standard USB.
LVDS_BKLI
