Norco MITX-6922 - Keyboard and Mouse Interface（Kbms

MITX-6922 Mini-ITX Motherboard Based on Intel QM67/QM77 Chipset
16

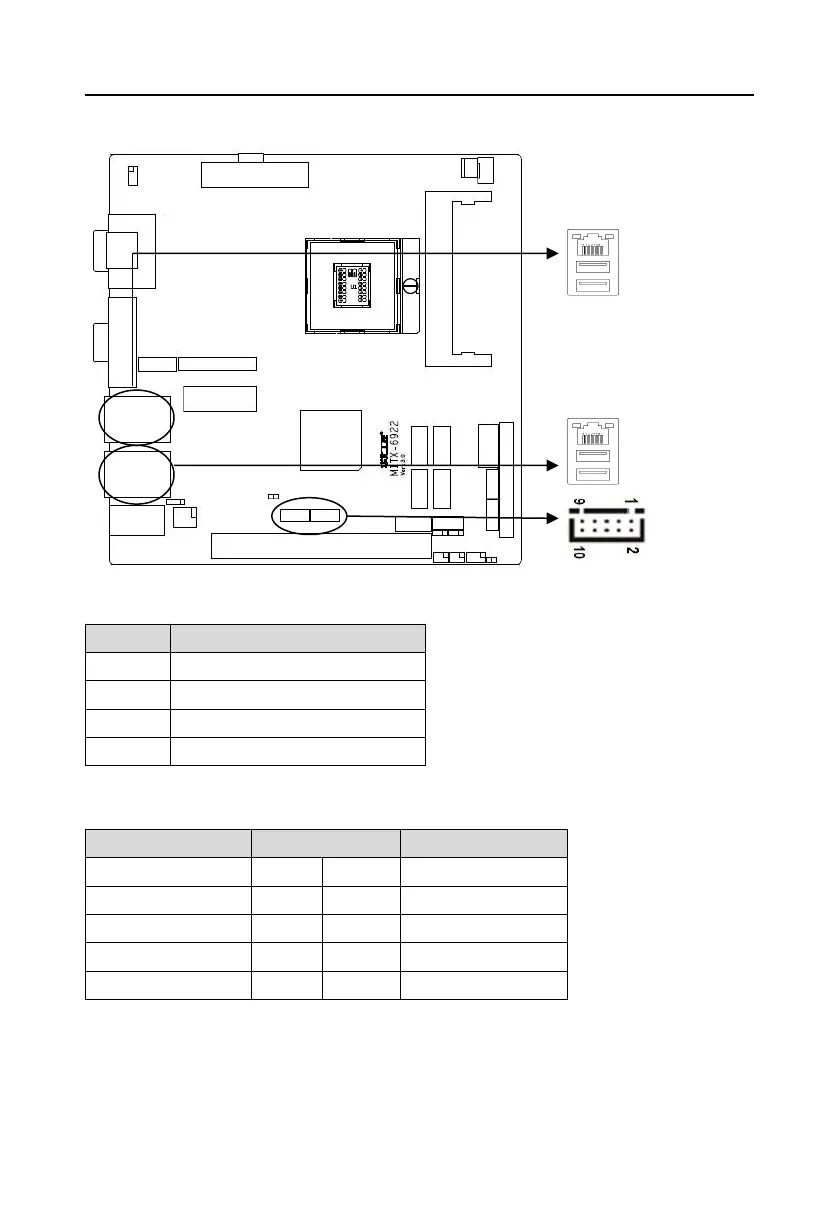

Standard USB port：
Pin
Signal Name
1
+5V
2
USB DATA-
3
USB DATA+
4
GND
USB_12，USB_34：
Signal Name
Pin
Signal Name
VCC
1
2
GND
USB DATA-
3
4
GND
USB DATA+
5
6
USB DATA+
GND
7
8
USB DATA-
GND
9
10
VCC
2.5.6 Keyboard & Mouse Interface（KBMS）
Provide 1x keyboard and mouse interface.
USB56_LAN1
USB78_LAN2
USB1-4
