Hardware description

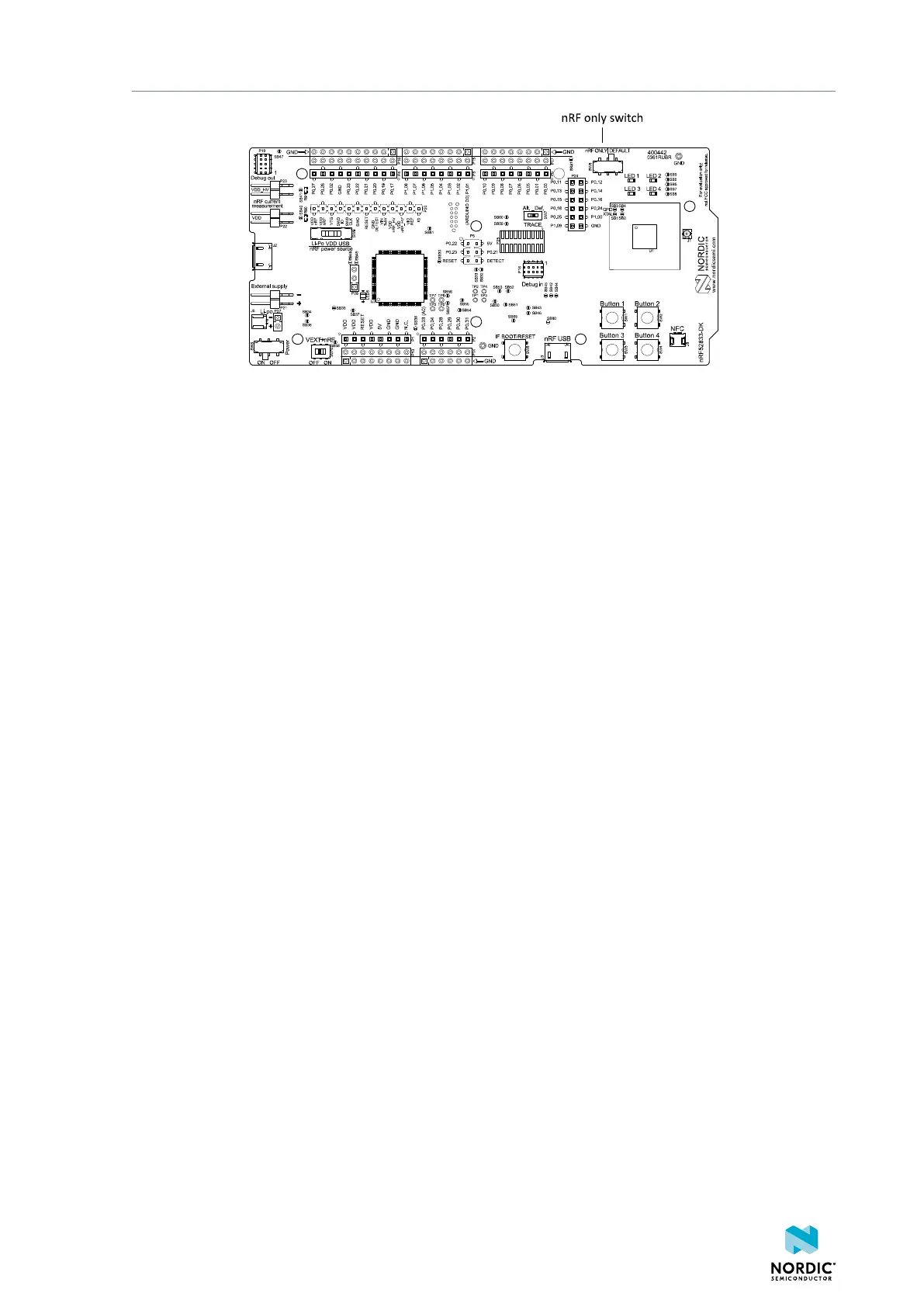

Figure 16: nRF ONLY switch (SW6)
8.4.3 Signal switches
On the nRF52833 DK, there are multiple analog switches that are used to connect and disconnect signals
based on different scenarios.
4452_198 v1.0.1
25
