Hardware description
The nRF5340 PDK board PCA10095 can be used as a development platform for the nRF5340 SoC. It
features an onboard programming and debugging solution.
In addition to radio communication, the nRF5340 SoC can communicate with a computer through USB and
a virtual COM port provided by the interface MCU.
5.1 Hardware drawings

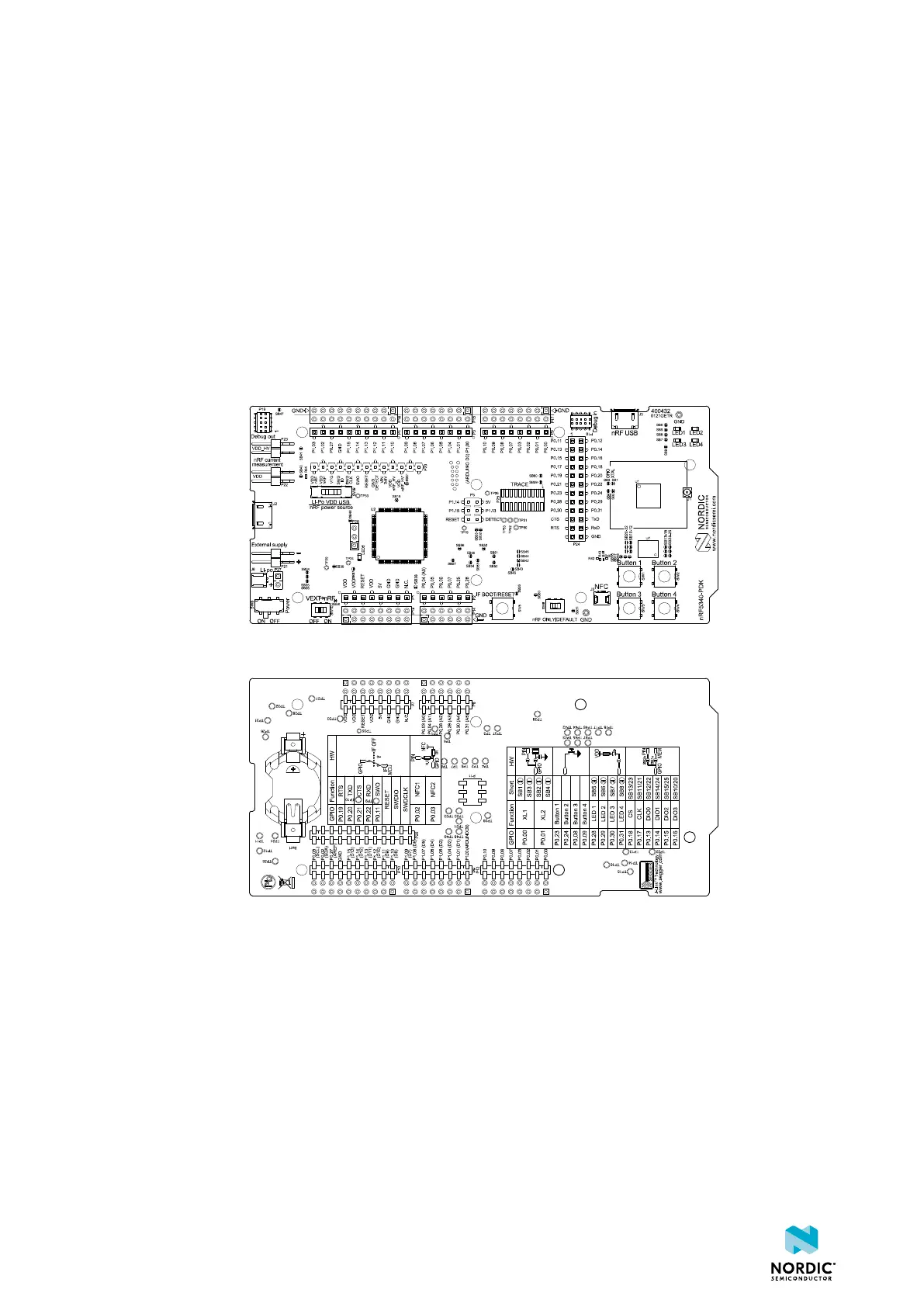

nRF5340 PDK hardware drawings show both sides of the PCA10095 board.
Figure 3: nRF5340 PDK board (PCA10095) front view
Figure 4: nRF5340 PDK board (PCA10095) back view
5.2 Block diagram
The nRF5340 PDK block diagram shows the connections between the different blocks.
