Nordic nRF9160 DK

Hardware description

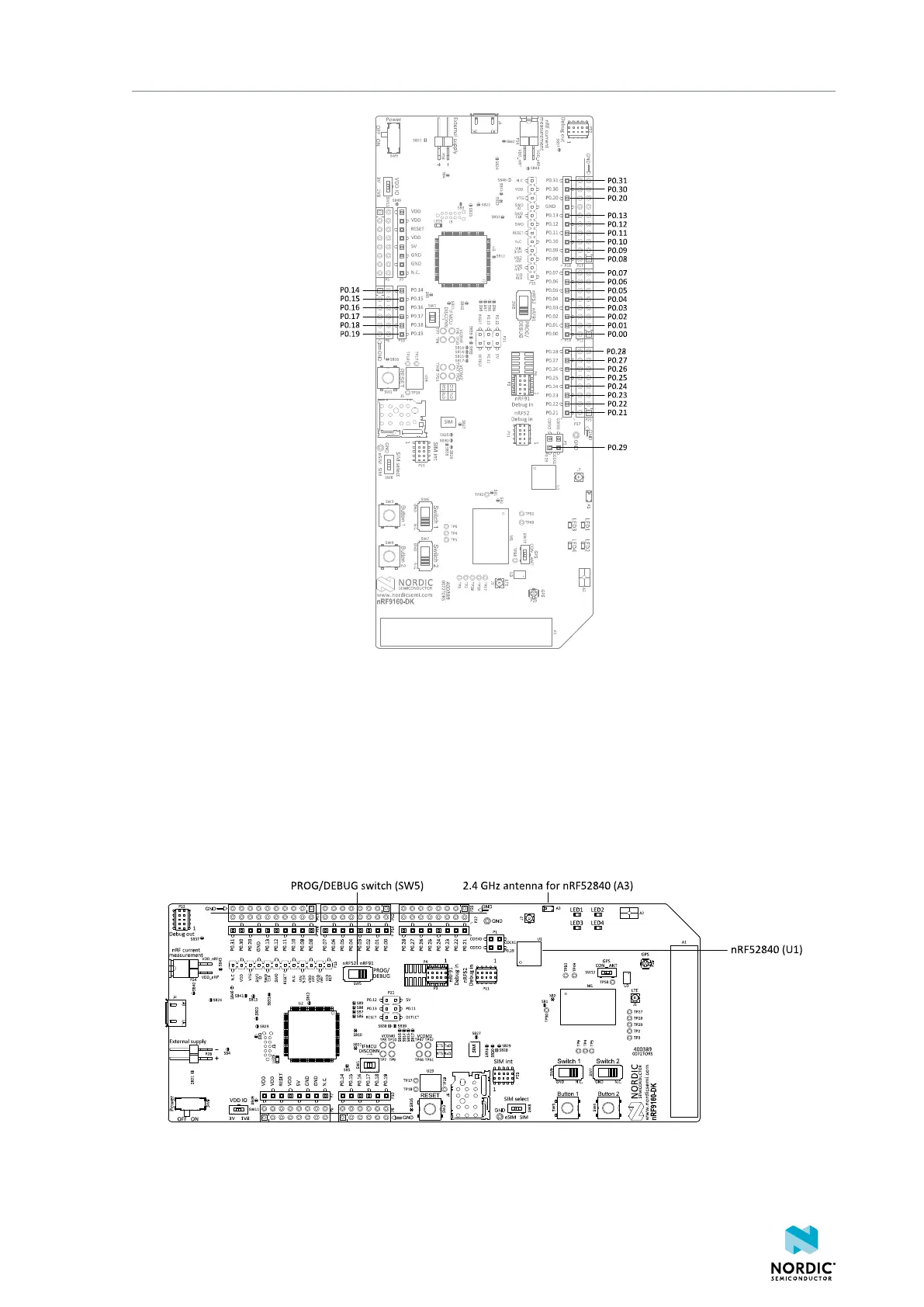

Figure 14: nRF9160 DK pins
4.7 nRF52840
An nRF52840 Bluetooth/IEEE 802.15.4 System on Chip (SoC) is included on the nRF9160 DK.
This device has two functions:
• nRF9160 DK control
• Bluetooth/IEEE 802.15.4 network processor
Figure 15: nRF52840 SoC on the nRF9160 DK
4418_1216 v0.9.1
20
