Hardware description

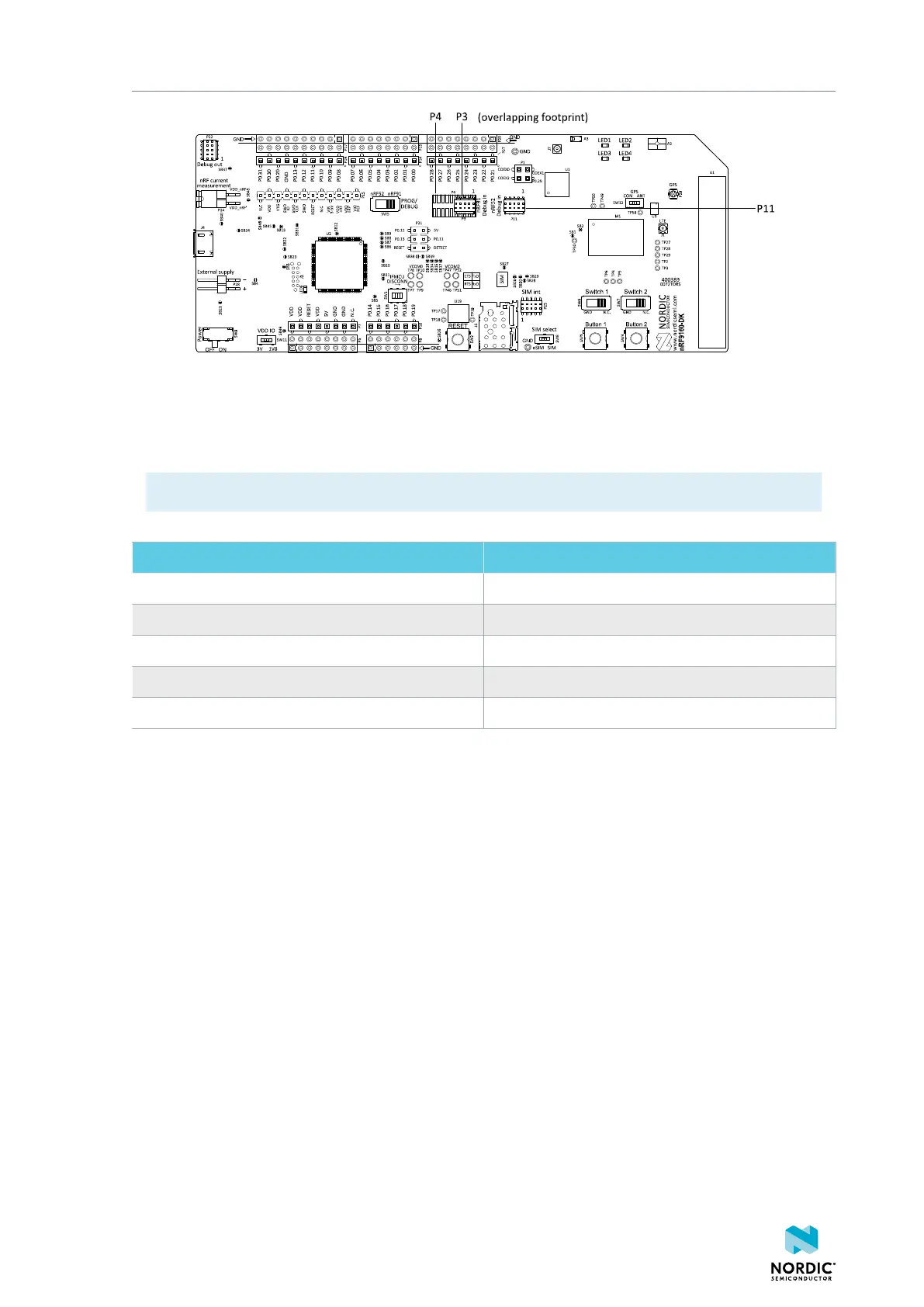

Figure 19: Debug input connector and trace footprint
To utilize the SW trace feature on nRF9160, a footprint for a 20-pin connector is available (P4). If trace
functionality is required, a 2×10 pin 1.27 mm pitch surface mount connector can be mounted. nRF9160
GPIOs used for the trace interface will not be available for application firmware use during trace.
Note: Connectors P3 and P4 overlap and share the same footprint.
GPIO Trace
P0.21 TRACECLK
P0.22 TRACEDATA[0]
P0.23 TRACEDATA[1]
P0.24 TRACEDATA[2]
P0.25 TRACEDATA[3]
Table 6: nRF9160 trace interfaces
4.10 Debug output
The nRF9160 DK supports programming and debugging external boards with Nordic SoCs and SiPs.
To debug an external board with SEGGER J-Link OB IF, connect the Debug out connector P22 to your target
board with a 10-pin flat cable.
4418_1216 v0.9.1
25
