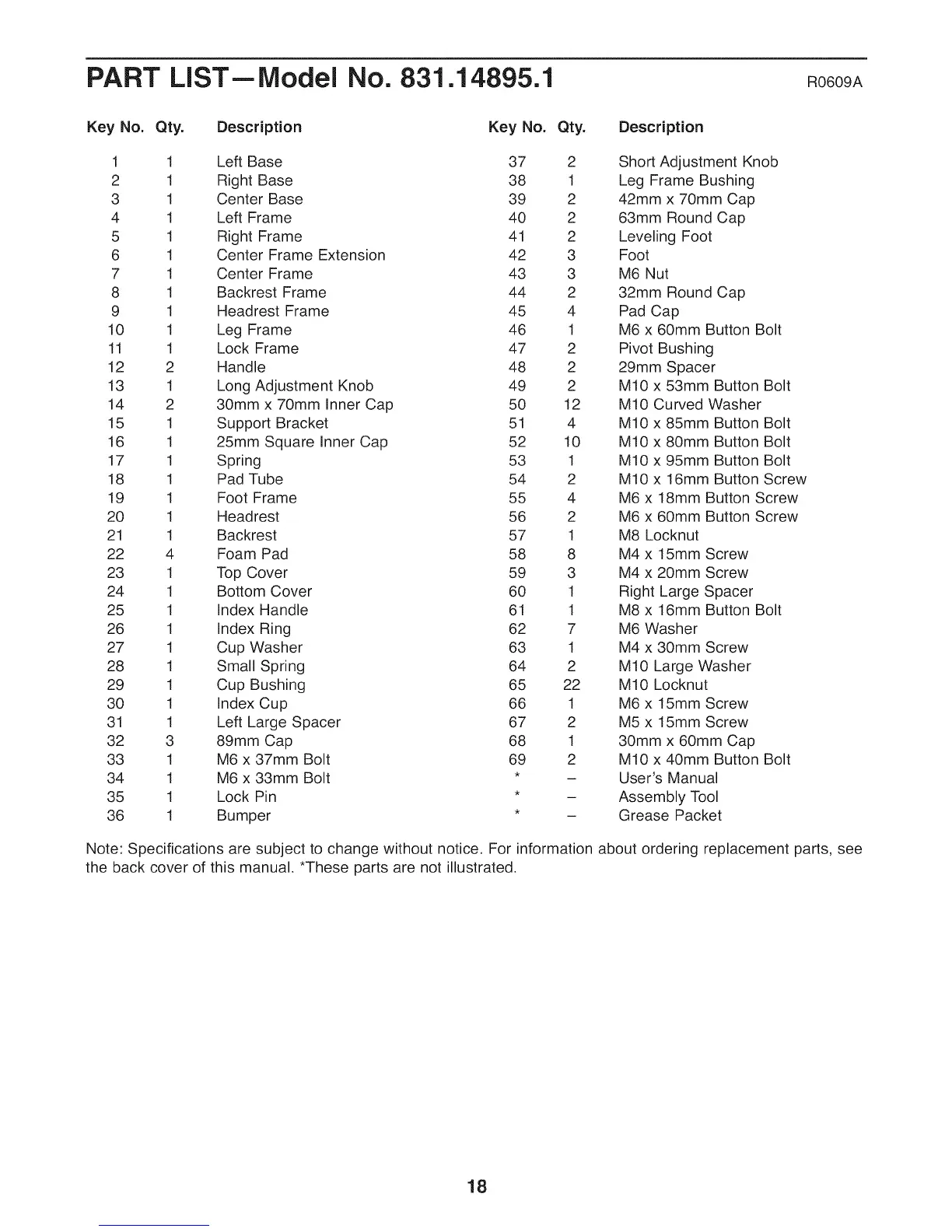

PART LISTmlVlodel No. 831.1 4895.1 ROG09A
Key No. Qty. Description Key No. Qty. Description
1 1 Left Base 37 2 Short Adjustment Knob
2 1 Right Base 38 1 Leg Frame Bushing
3 1 Center Base 39 2 42mm x 70mm Cap
4 1 Left Frame 40 2 63mm Round Cap
5 1 Right Frame 41 2 Leveling Foot
6 1 Center Frame Extension 42 3 Foot
7 1 Center Frame 43 3 M6 Nut
8 1 Backrest Frame 44 2 32mm Round Cap
9 1 Headrest Frame 45 4 Pad Cap
10 1 Leg Frame 46 1 M6 x 60mm Button Bolt
11 1 Lock Frame 47 2 Pivot Bushing
12 2 Handle 48 2 29mm Spacer
13 1 Long Adjustment Knob 49 2 M10 x 53mm Button Bolt
14 2 30mm x 70mm Inner Cap 50 12 M10 Curved Washer
15 1 Support Bracket 51 4 M10 x 85mm Button Bolt
16 1 25mm Square Inner Cap 52 10 M10 x 80mm Button Bolt
17 1 Spring 53 1 M10 x 95mm Button Bolt
18 1 Pad Tube 54 2 M10 x 16mm Button Screw
19 1 Foot Frame 55 4 M6 x 18mm Button Screw
20 1 Headrest 56 2 M6 x 60mm Button Screw
21 1 Backrest 57 1 M8 Locknut
22 4 Foam Pad 58 8 M4 x 15mm Screw
23 1 Top Cover 59 3 M4 x 20mm Screw
24 1 Bottom Cover 60 1 Right Large Spacer
25 1 Index Handle 61 1 M8 x 16mm Button Bolt
26 1 Index Ring 62 7 M6 Washer
27 1 Cup Washer 63 1 M4 x 30mm Screw
28 1 Small Spring 64 2 M10 Large Washer
29 1 Cup Bushing 65 22 M10 Locknut
30 1 Index Cup 66 1 M6 x 15mm Screw
31 1 Left Large Spacer 67 2 M5 x 15mm Screw
32 3 89mm Cap 68 1 30mm x 60mm Cap
33 1 M6 x 37mm Bolt 69 2 M10 x 40mm Button Bolt
34 1 M6 x 33mm Bolt * - User's Manual
35 1 Lock Pin * - Assembly Tool
36 1 Bumper * - Grease Packet
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
18
