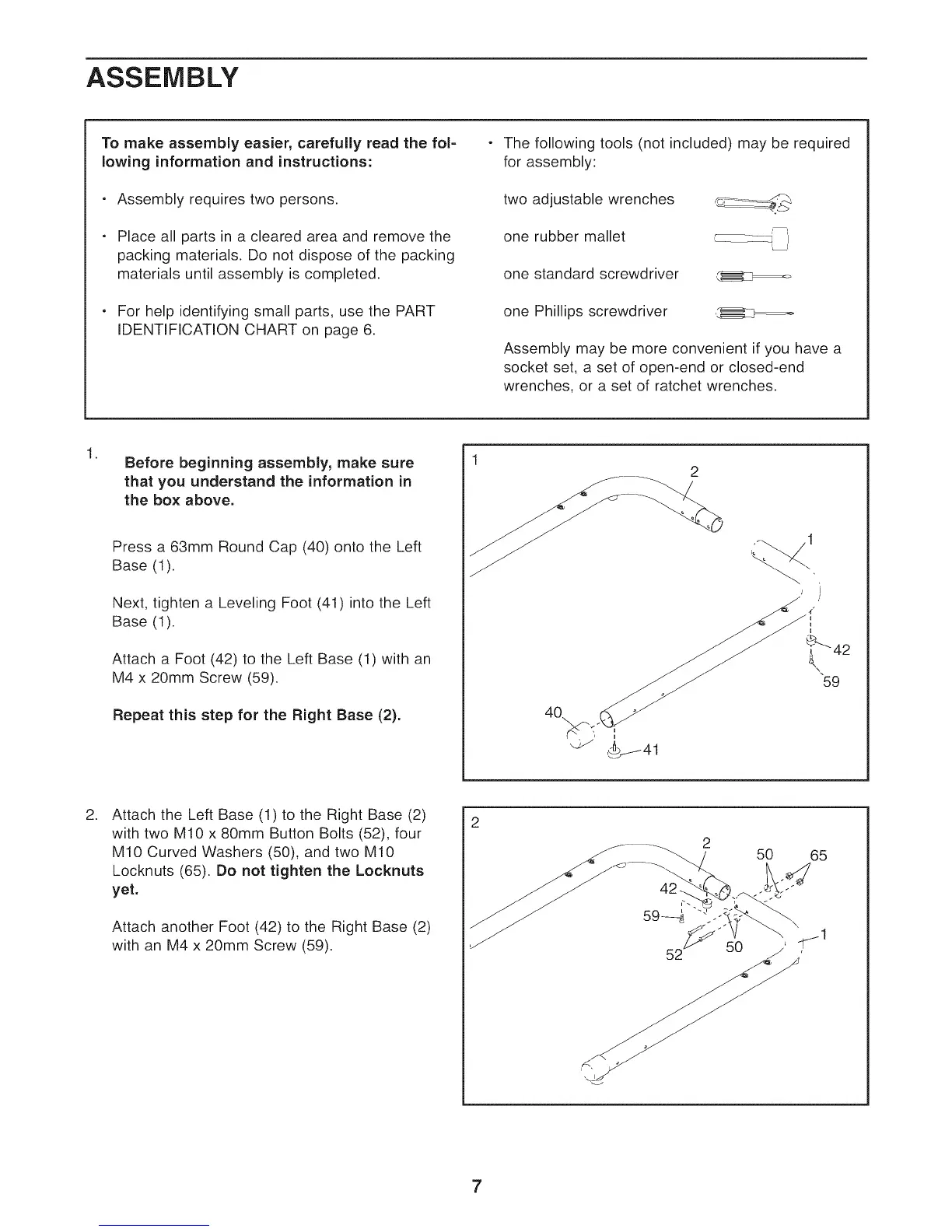

ASSEMBLY
To make assembly easier, carefully read the fol-
lowing information and instructions:
- Assembly requires two persons.
- Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
- For help identifying small parts, use the PART
IDENTIFICATION CHART on page 6.
- The following tools (not included) may be required
for assembly:
two adjustable wrenches ,_
one rubber mallet _i'--')
one standard screwdriver
one Phillips screwdriver ,_
Assembly may be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
,
Before beginning assembly, make sure
that you understand the information in
the box above.
Press a 63mm Round Cap (40) onto the Left
Base (1).
Next, tighten a Leveling Foot (41) into the Left
Base (1).
Attach a Foot (42) to the Left Base (1) with an
M4 x 20mm Screw (59).
Repeat this step for the Right Base (2).
1
2
" )
i
42
40.s . "59
,
Attach the Left Base (1) to the Right Base (2)
with two M10 x 80mm Button Bolts (52), four
M10 Curved Washers (50), and two M10
Locknuts (65). Do not tighten the Locknuts
yet.
Attach another Foot (42) to the Right Base (2)
with an M4 x 20mm Screw (59).
2
