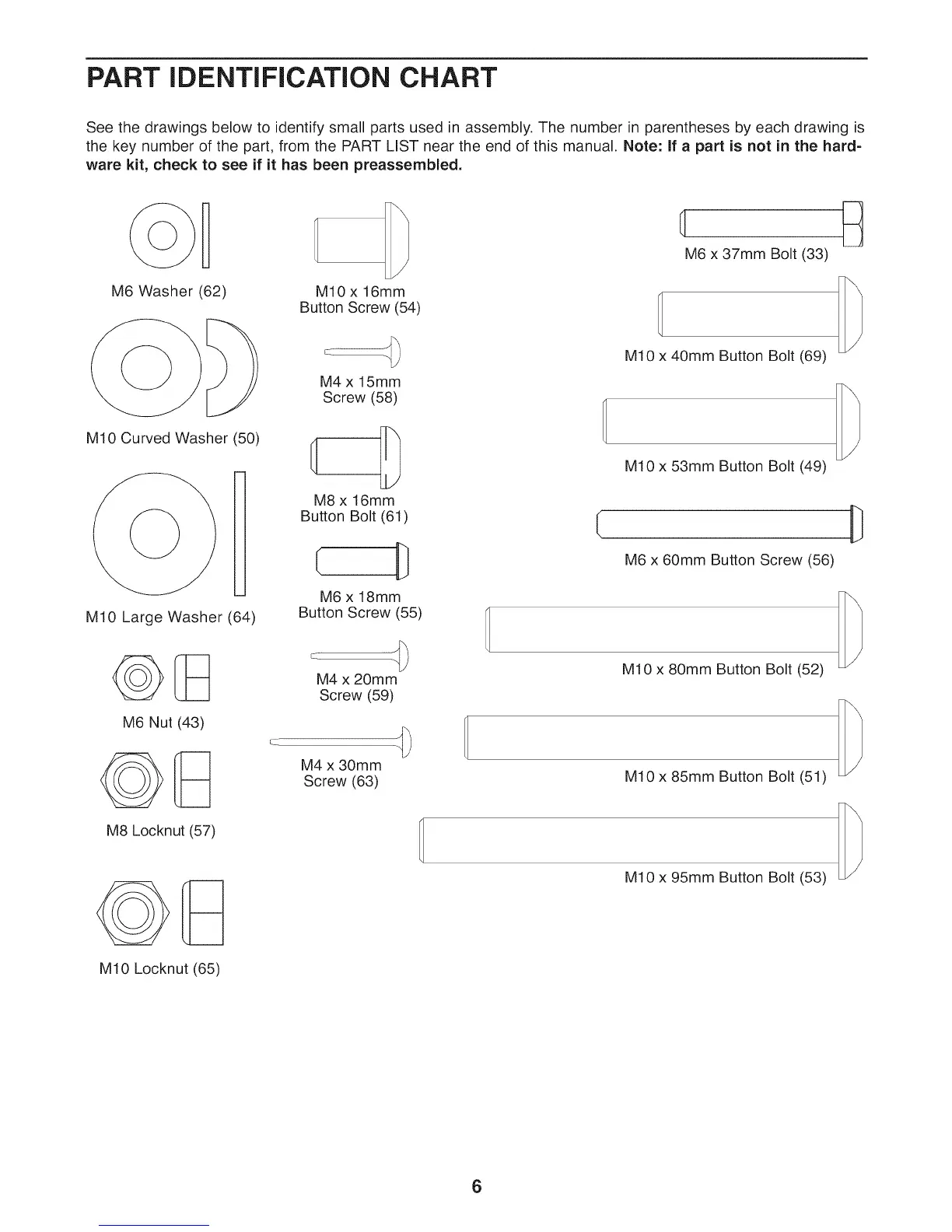

PART iDENTiFiCATiON CHART
See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
the key number of the part, from the PART LIST near the end of this manual. Note: If a part is not in the hard-
ware kit, check to see if it has been preassembled.
M6 Washer (62)
MIO Curved Washer (50)
I
M10 Large Washer (64)
M10 x 16mm
Button Screw (54)
M4 x 15mm
Screw (58)
M8 x 16mm
Button Bolt (61)
M6 x 18mm
Button Screw (55)
q
M6 x 37mm Bolt (33)
M10 x 40mm Button Bolt (69)
M10 x 53mm Button Bolt (49)
M6 x 60mm Button Screw (56)
M6 Nut (43)
M8 Locknut (57)
M4 x 20mm
Screw (59)
cC
M4 x 30mm
Screw (63)
M10 x 80mm Button Bolt (52)
M10 x 85mm Button Bolt (51)
M10 x 95mm Button Bolt (53)
M10 Locknut (65)
