Notifier ACM-16AT User Manual

Product Overview
PN 15842:K 7/23/2002 15
2.5 Cabinet & Panel Hardware
2.5.1 Surface-Mount Backboxes
These backboxes provide a surface-mount enclosure
for remote mounting annunciators. Knockouts are
provided for use with 1/2" conduit. Dimensions are
provided in Table 2-1.
ABS-1B, ABS-1. Mounts one annunciator directly
to the ABS-1/1B without a dress plate. ABS-1 only
fits ACM-16AT/ACM-32A series; the “B” version is
black and is slightly deeper to fit either series.
Note: This backbox will not support the installation
of the Annunciator Key Switch or the Annunciator
Phone Jack for Firefighters' Telephone.
ABS-2B, ABS-2. Mounts two annunciators
directly to the ABS-2/2B without a dress plate.
ABS-2 only fits ACM-16AT/ACM-32A series; the
“B” version is black and is slightly deeper to fit either
series. Note: This backbox will not support the
installation of the Annunciator Key Switch or the
Annunciator Phone Jack.
ABS-4D, ABS-4R. Mounts four annunciators, or two annunciators to the right
of an NCA. This surface box can also be mounted semi-flush. Note: This
backbox will not support the installation of the Annunciator Key Switch or the
Annunciator Phone Jack for Firefighters' Telephone.
ABS-1TB, ABS-1T. Mounts one
annunciator. Unlike the ABS-1/1B and
ABS-2/2B, the ABS-1T/1TB has an
increased depth that allows mounting of
the Annunciator Phone Jack for
Firefighters' Telephone and Annunciator
Key Switch. ABS-1T only fits
ACM-16AT/ACM-32A series; the “B”
version is black and is slightly deeper to fit
either series.
2.5.2 Flush-mount
Backboxes
These backboxes provide a flush-mount
enclosure for remote mounting of
annunciators. Knockouts are provided for
use with 1/2" conduit. Dimensions are
listed in Table 2-1. Backboxes include a trim plate and an adhesive-backed
annunciator label for the dress plate (15824).
ABF-1B, ABF-1. Mounts one annunciator. ABF-1 only fits ACM-16AT/
ACM-32A series; the “B” version is black and is slightly deeper to fit either
series.
50439d2.tif

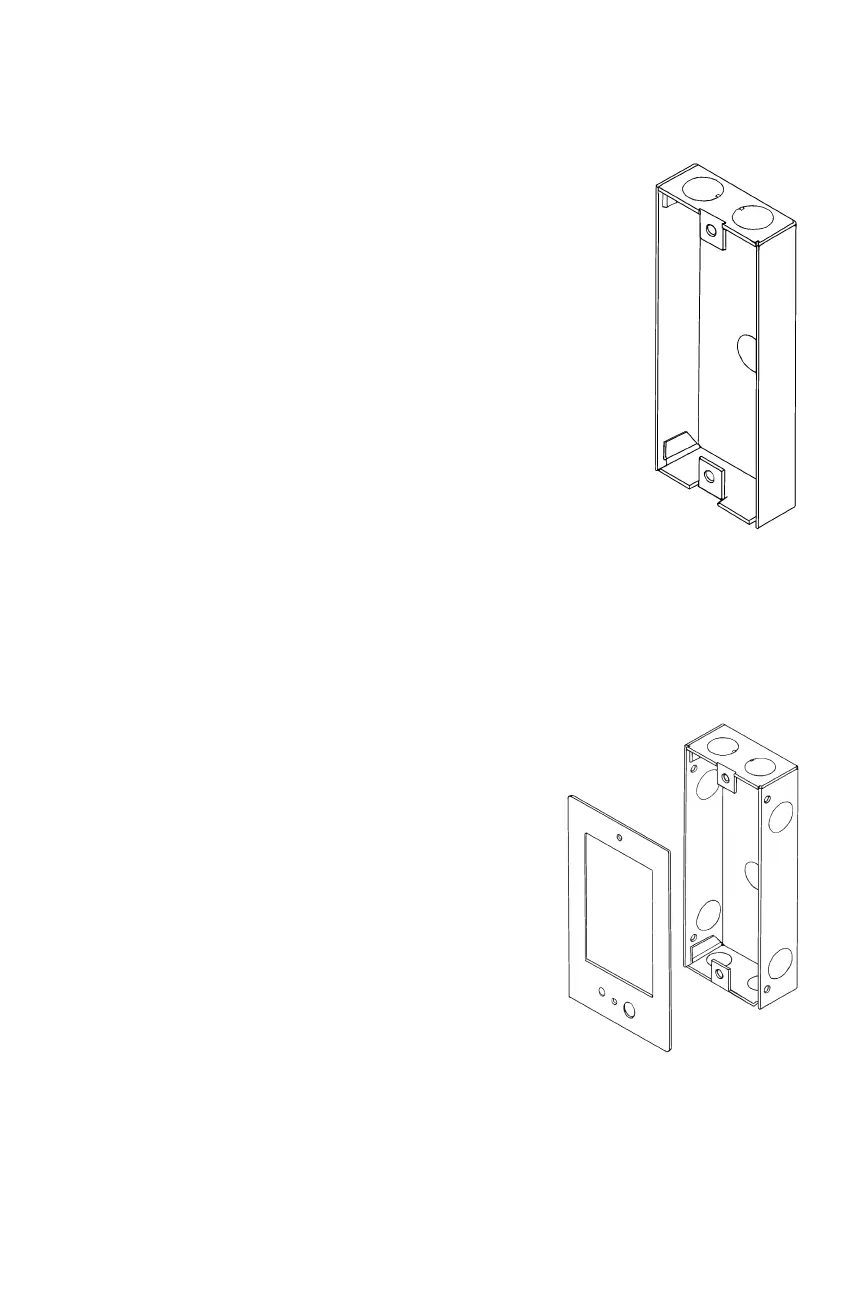

ABS-1B, ABS-1
ABF-1B, ABF-1
abf-1-iso.cdr
