Notifier ACM-24AT Installation Manual

Installation, Configuration, and Programming
PN 15842:K 7/23/2002 33
-
+
+
+
+
+
+
+
TB2 PWR SUPPLY
TB2 PWR SUPPLY
TB2 PWR SUPPLY
+24 VDC In
+24 VDC Out
Reference Out
Reference In
Note: On ACM-24AT and ACM-48A, earth
ground is on TB1 with the EIA-485 connection.

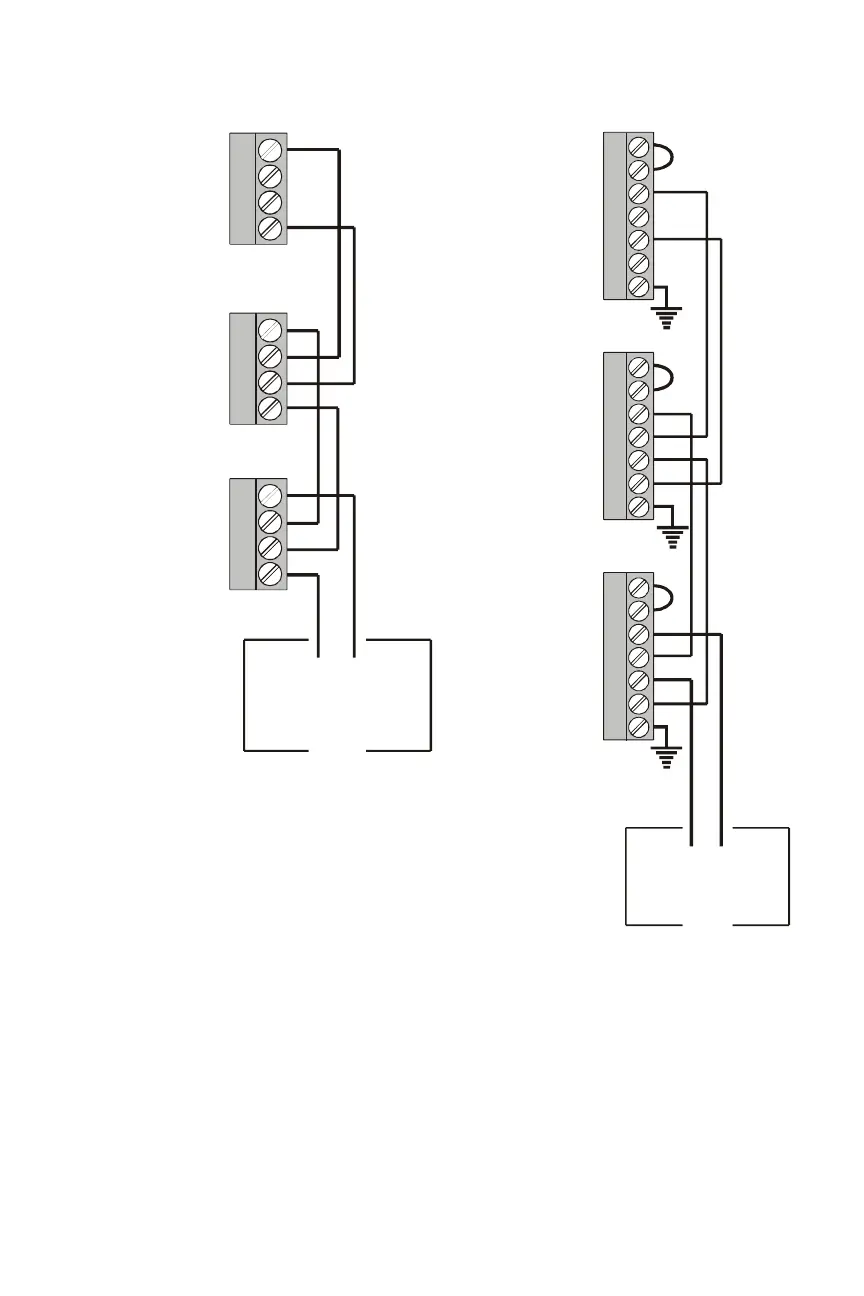

Figure 4-13 Power Circuit for
ACM-24AT and ACM-48A
24 VDC Power
ACM-24-48-pwr.cdr
+24 VDC In
+24 VDC Out
Reference Out
Reference In
+24 VDC In
+24 VDC Out
Reference Out
Reference In
+
-
+
+
-
-
-
-
-
-
-
-
+
+
+
+
Figure 4-14 Power Circuit for
ACM-16AT and ACM-32A
24 VDC Power
TB1
Jumper for
supervisory
devices (see
Section 4.14)
ACS16-32-pwr.cdr
N.C. Trouble Inputs
N.C. Trouble Inputs
Common In
Common Out
Power In
Power Out
Earth Ground
N.C. Trouble Inputs
N.C. Trouble Inputs
Common In
Common Out
Power In
Power Out
Earth Ground
N.C. Trouble Inputs
N.C. Trouble Inputs
Common In
Common Out
Power In
Power Out
Earth Ground
TB1
TB1
