Product Overview
18 PN 15842:K 7/23/2002
2.5.4 Additional Hardware
ADP-4B, ADP-4. The Annunciator Dress Panel-4 provides for the cabinet
mounting of one to four modules (all of the same series). Annunciators and
expanders mount directly to threaded studs on the dress panel. The gray ADP-4
hinge-mounts to a CAB-3 series backbox. The black ADP-4B hinge-mounts to a
CAB-4 series backbox; chassis CHS-4L can be mounted behind it.
DP-DISP. Dress Panel Display provides for the cabinet mounting of one to four
annunciators, including applications where two annunciators are mounted to the
right of an NCA or control panel keypad. The DP-DISP hinge-mounts to a
CAB-4 series backbox; chassis CHS-4L can be mounted behind it.
Annunciators and expanders mount directly to threaded studs on the dress panel.
ABM-1. The Annunciator Blank Module is a two-sided dress plate identical in
appearance to the front panels of the ACM-16AT and AEM-16AT modules on
one side, and the front panels of the ACM-32A and AEM-32A modules on the
other side. The blank module covers unused module positions in the annunciator
backbox or dress panel.
BMP-1. Blank module dress plate is a flat, black metal plate which covers
unused module positions in the annunciator backbox or dress panel and
optionally provides an additional mounting position for some modules. For use
with black backboxes and dress panels.
VP-2B, VP-2. Use the VP-2/2B Vented Dress Panel when annunciators are to
be installed in the top row of a Notifier cabinet with the ADP-4/4B. It covers the
adp-4b-with24at.cdr

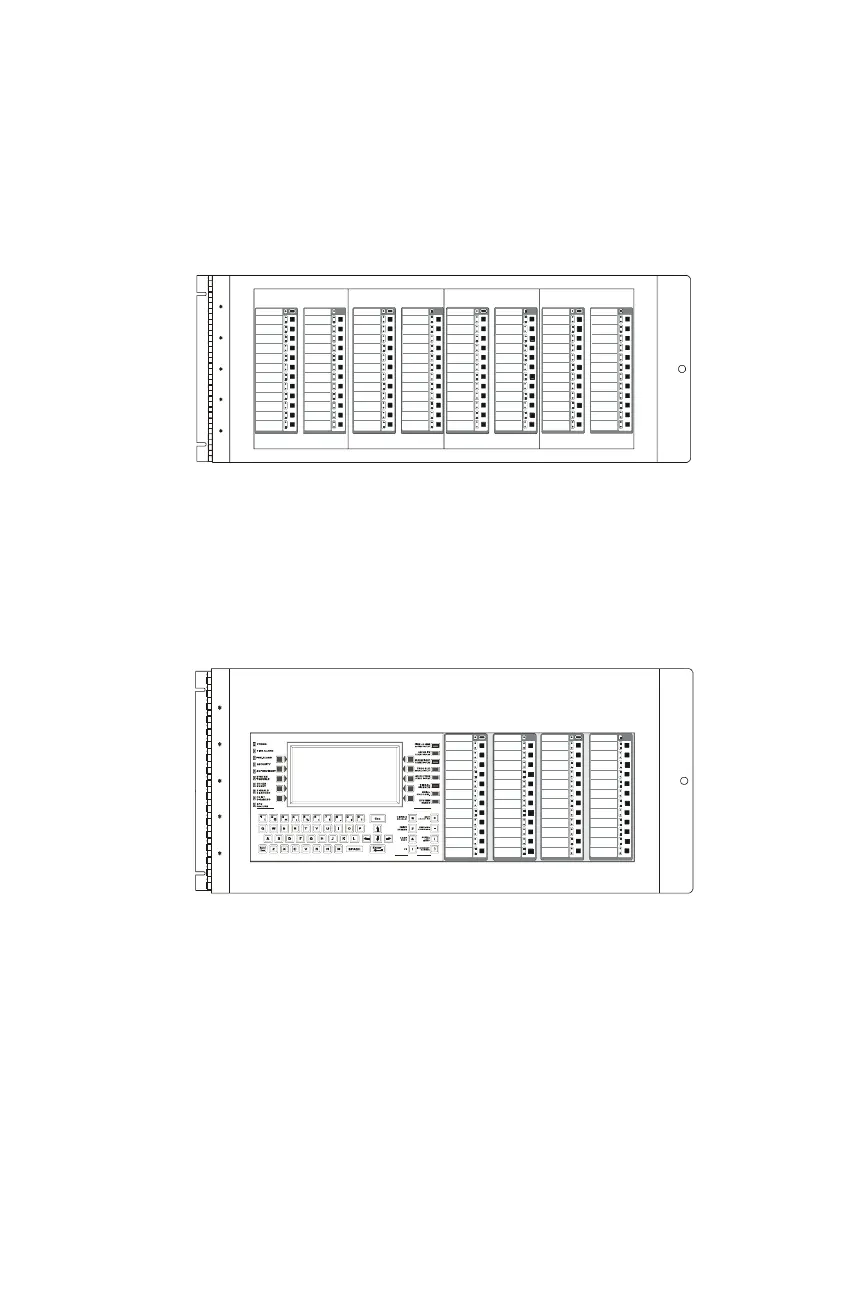

ADP-4/4B (Shown with ACM-24AT Modules)
dp-disp
DP-DISP (Shown with an NCA and Two ACM-24AT Modules)
