24 AFP-3030 Programming Manual — P/N DOC-01-032:A 26/06/2015
PrealarmProgram Panel Program

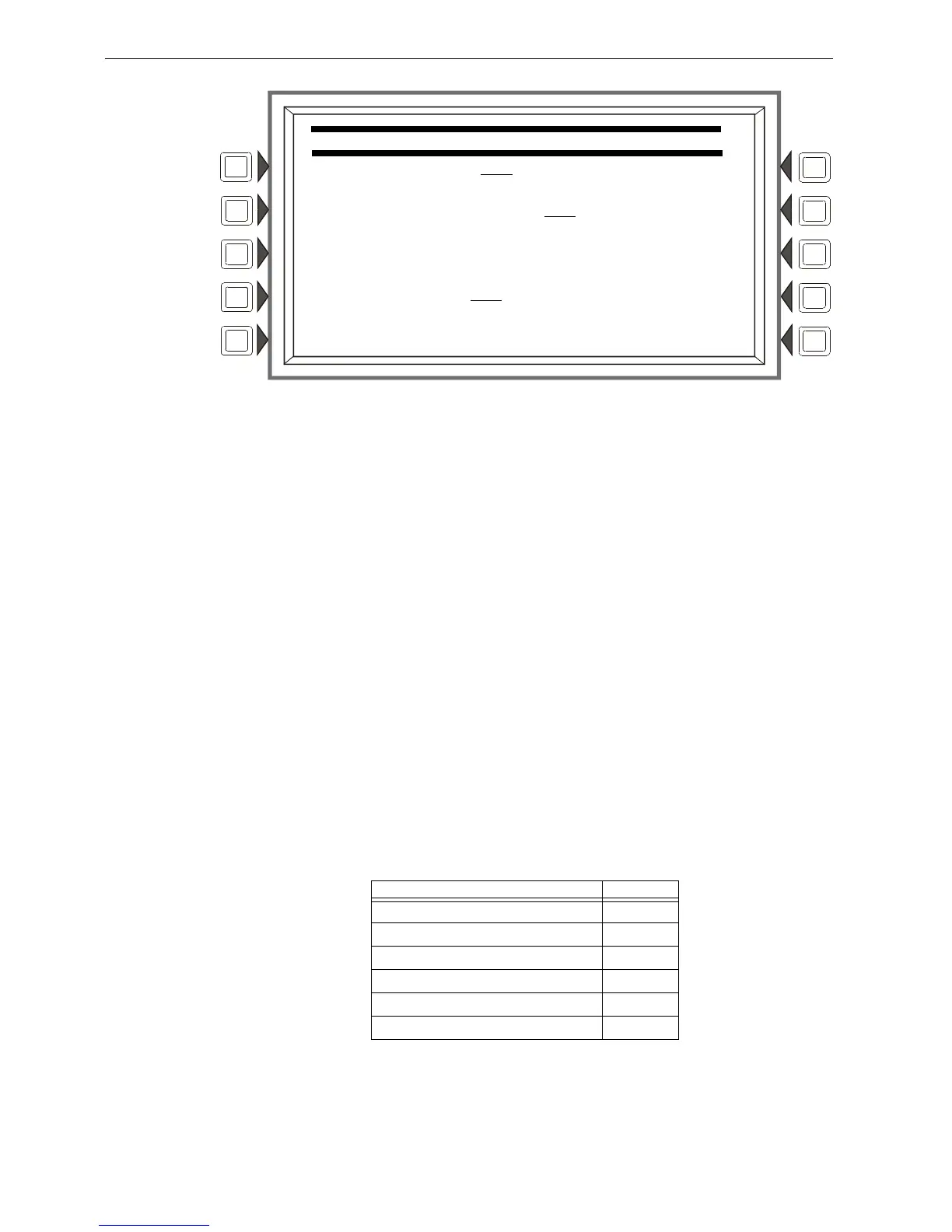

Figure 3.7 Panel Settings (2) Screen
Soft Keys
LCM LOCAL MODE: Press this soft key to toggle between YES and NO. Enter YES to enable all
SLCs to participate in local mode. When enabled, all LCMs will operate together in a limited
fashion when communication is lost with the AFP-3030 CPU. Inputs on LCM loops (and
associated LEM loops, if installed) will activate outputs on all loops
• for those inputs and outputs that have been set with point programming to participate in local
mode, and
• when type codes are the same point type: that is, an input with a fire type code will activate an
output with a fire type code. (Refer to
Appendix F, “Type Codes”, on page 122 for point types).
Default: NO
POWER MANAGEMENT MODE: Select ON to invoke the power management mode to conserve
power consumption. In this mode, the number of LEDs that can be turned ON on a particular loop
will be limited. A maximum of 30 input device (monitor modules and detectors) LEDs will be
allowed ON at a time. No output module LEDs will turn ON. When the limit of 30 LEDs is
reached, every time a new LED is turned ON, the oldest LED activation will turn OFF and will poll
in red rather than the usual green. Default: OFF
RAPID ALL CALL: Set YES to invoke Rapid All Call for XP Series transponder modules. This
setting causes these modules to activate more quickly. Rapid All Call is used with the “Speaker”
type code. Default: NO
DEFAULT SETTINGS: Press this soft key to activate default settings for the following:
SCS SETTINGS: Press this soft key to proceed to the SCS Settings screen.
MORE: Press this key to progress to the third Panel Settings screen.
Program Setting for: Default:
Local Control YES
Piezo ON
Display Address YES
LCM Local Mode NO
Power Management OFF
Rapid All Call NO
Table 3.1 Default Settings
