3.2.9 Supervision
From the Panel Program Menu (1), select SUPERVISION to display the following screen.

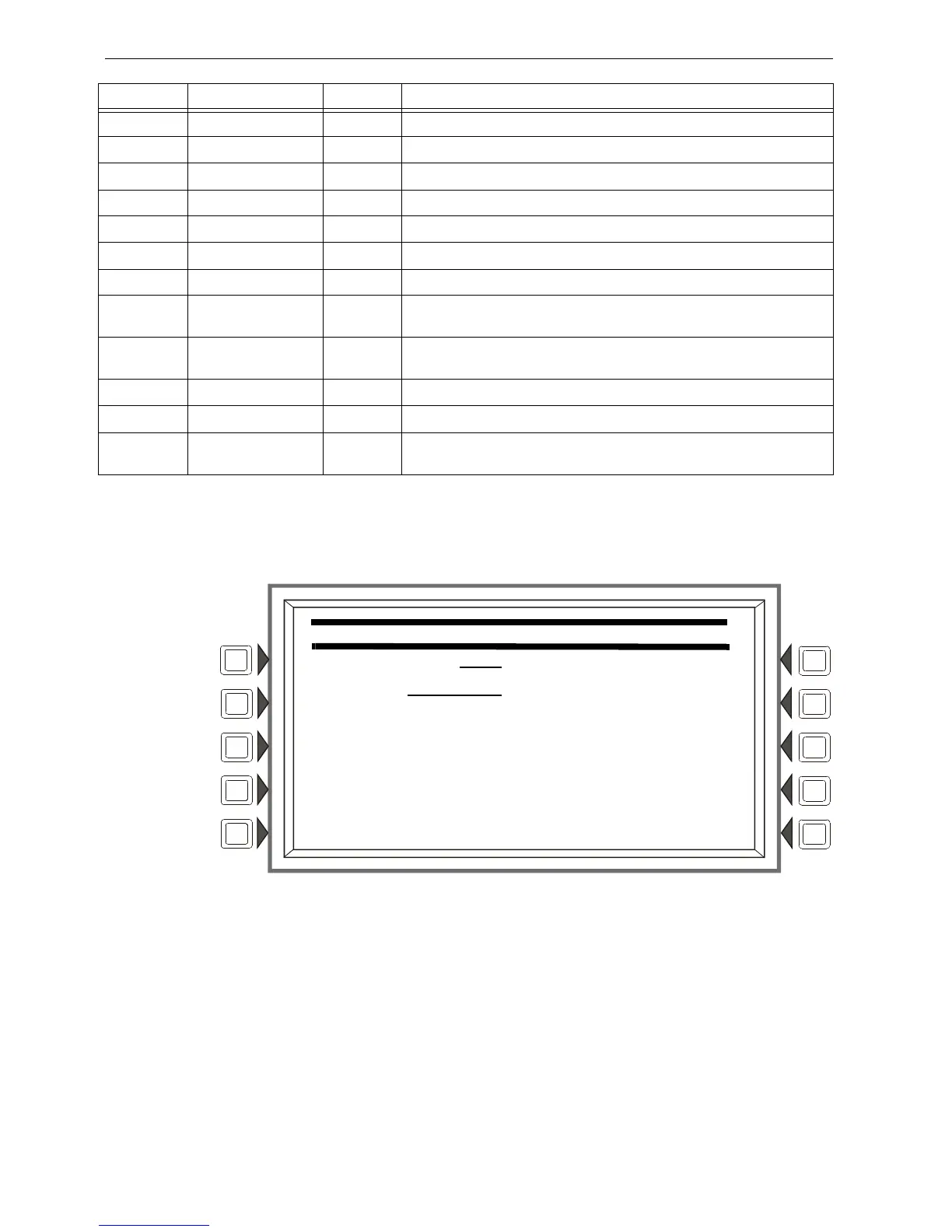

Figure 3.22 Supervision Screen
Soft Keys
MAIN PS NODE: Press to enter the node address of the system associated with the main power
supply. Enter the power supply’s node address and press ACCEPT. If the local power supply is the
main power supply, enter 000 for the node address. Default: 000
AXP19 A.R.E. Fault Fault An A.R.E. Fault input activated
AXP20 A.R.E. Disabled Fault An A.R.E.Disabled input activated
AXP21 MCP Fault Fault An ACM MCP fault has occurred
AXP22 MCP Alarm Fire Alarm An ACM MCP Alarm has occurred
AXP23 PSU Low Fault Fault A PSU Low fault has occurred
AXP24 Charger Fault Fault A charger fault has occurred
AXP25 Battery Fault Fault A battery fault has occurred
AXP26 Field Power 1
Overload
Fault A Field Power 1 overload has occurred
AXP27 Field Power 2
Overload
Fault A Field Power 2 overload has occurred
AXP28 PSU Feed Fault Fault A Power Supply Unit Feed fault has occurred
AXP29 Battery Feed Fault Fault A battery feed fault has occurred
AXP30 PSI External Fault
Monitor
Fault Monitors for external power supply fault has occurred
ACS Point: Point Text: Point Type: Explanation:
Table 3.6 ACS Point Mapping: Explanation of ACM-PSI Point Modes (2 of 2)
