Notifier AFP-3030 Programming Manual

56 AFP-3030 Programming Manual — P/N DOC-01-032:A 26/06/2015
PrealarmProgram Point Program
FLASHSCAN CODE LABEL: Press this soft key to scroll through the point type choices: stop at
the appropriate selection (
Table F.4 on page 126 for codes and descriptions). Choose NONE if the
point type is not FlashScan.
POINT LABEL: Press this soft key to place the cursor at this field. Type in a 20-character
maximum point label that will appear in message formats. If no entry is made, the field will default
to the point address.
EXTENDED LABEL: Press to place the cursor at this field. Type in a 12-character maximum
extended label to further define the location or nature of the point.
MORE: Press to proceed to the next screen for more point programming.
ACCEPT: Press to save entries made on this screen.
Module Point Programming (Monitor Module)
Pressing the MORE soft key at the Module Point Programming screen will display this screen if the
module type was monitor.

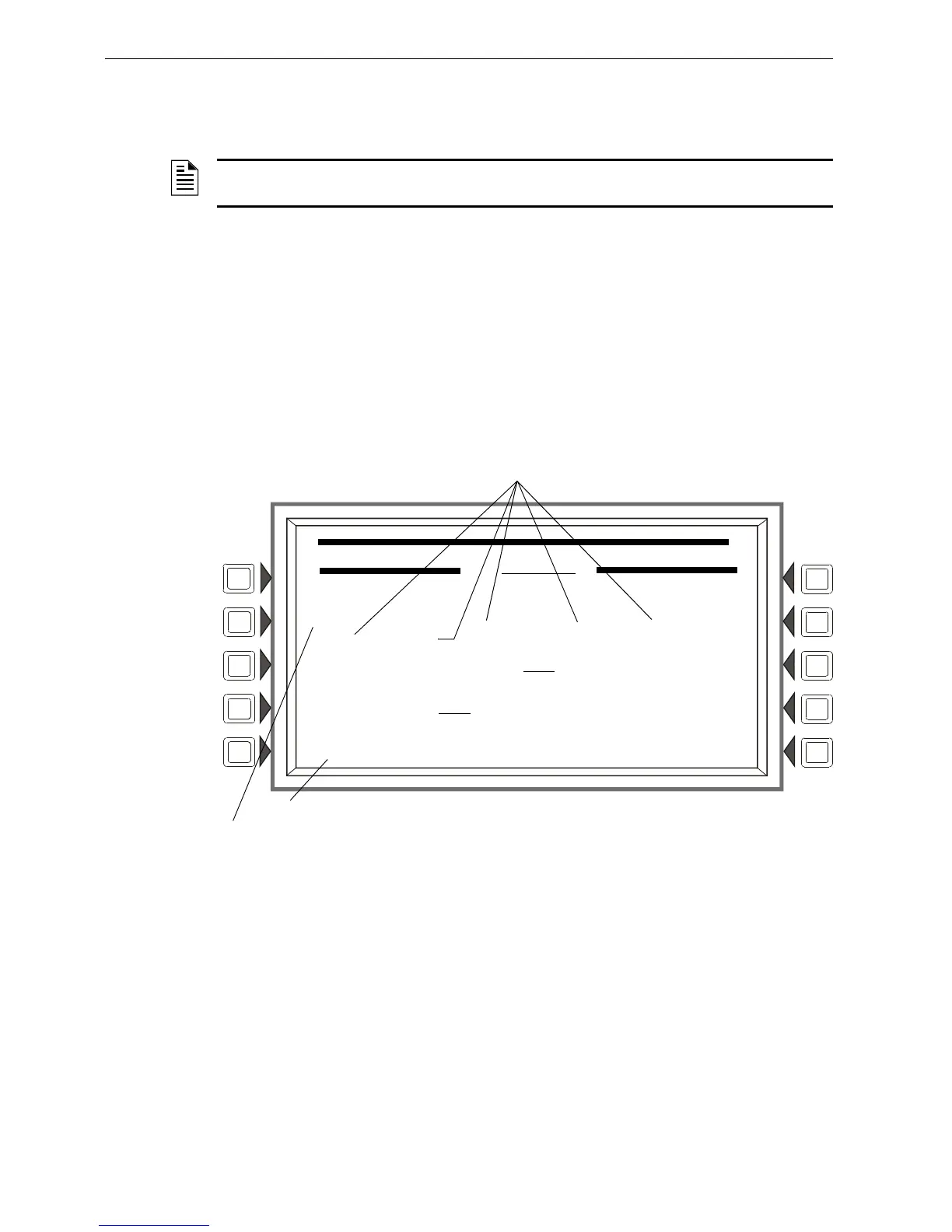

Figure 3.42 Module Point Programming Screen 2 (Monitor)
Soft Keys
CUSTOM ACTION MESSAGE: Displays the custom action message number (a value of one
through 100). The default value is 0 (no message). Press this soft key to progress to the Custom
Action Message screen (shown in
Figure 3.35) to view the message or to choose a different
message for viewing when this point activates. To create a new custom action message, refer to
Section 3.3.4, “Custom Action Message”, on page 44.
ZONE MAP: Displays the zones mapped to this point. During initial programming, zone map
position one for each monitor module is set to Z0YY, where YY represents the loop number where
the module resides. In
Figure 3.42 above, zone position one has a value of Z003 (YY = 03). The
module in the example resides on loop 3.
NOTE: If the point is not installed, MODULE TYPE:, TYPE CODE LABEL:, and FLASHSCAN
CODE LABEL: must be entered before any entries can be saved using the ACCEPT key.
MODULE POINT PROGRAMMING
L03M123
CUSTOM ACTION MESSAGE:020
ZONE MAP:
Z003 , Z104 , Z105 , Z106 , Z107
Z110 , Z114 , Z115 , Z116 , Z117
ALARM VERIFICATION: OFF MORE
LOCAL MODE: OFF ACCEPT
4-20 DEVICE SETUP BACK
Zone Map Position 1 - Use for group zone disable participation.
This menu selection will appear when 4-20MA has been entered as the module’s Type Code Label.
FMM-4-20 only - Positions 3 - 7 in the zone map are
automatically assigned to thresholds 1 - 5 respectively.
