60 AFP-3030 Programming Manual — P/N DOC-01-032:A 26/06/2015
PrealarmProgram Point Program
Module Point Programming (Control Module)
Pressing the MORE soft key at the Module Point Programming screen will display this screen if the
module type was control.

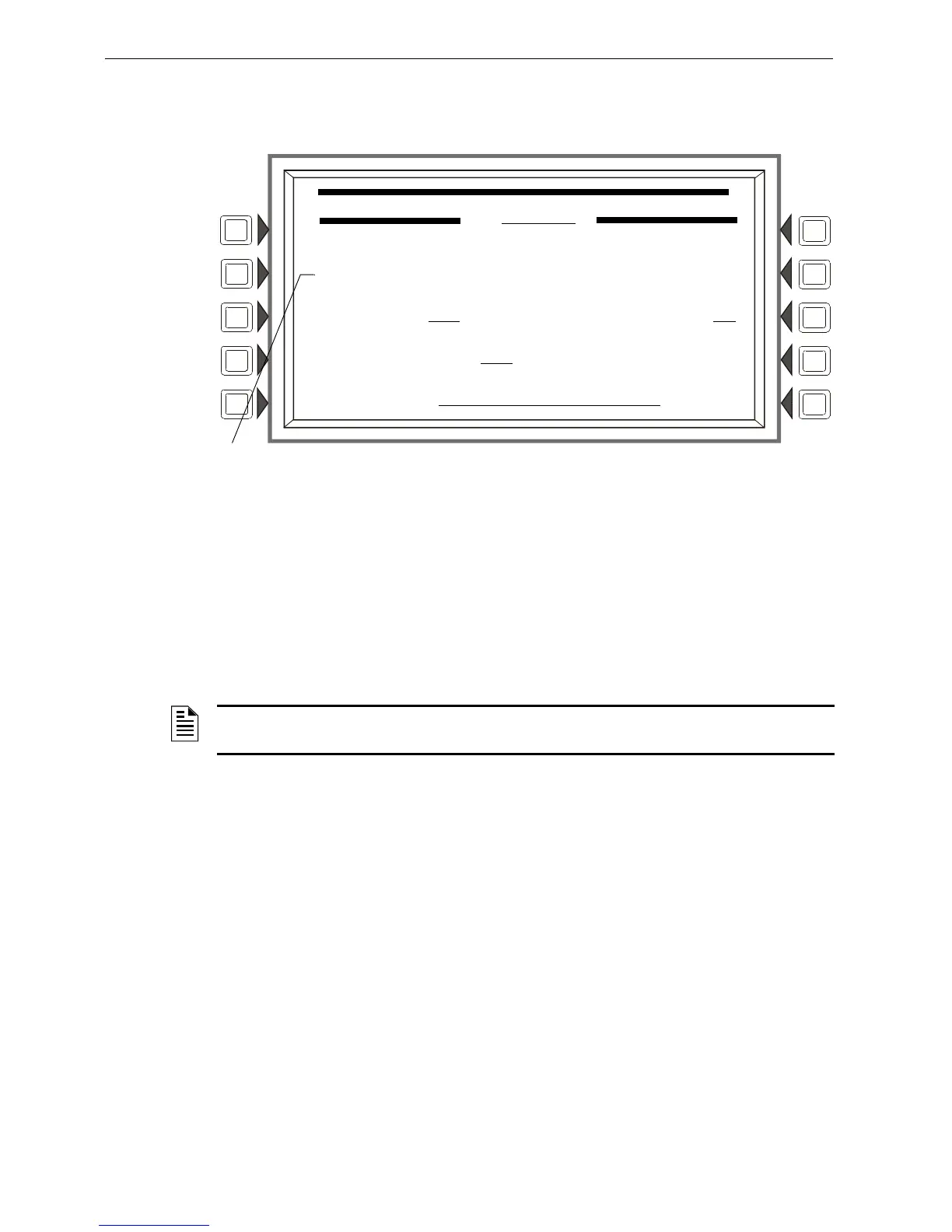

Figure 3.46 Module Point Programming Screen 2 (Control)
Soft Keys
LOCAL MODE: Press to toggle between Local Mode (ON) or no Local Mode (OFF). When there is
a communication loss between the panel and its LCM/LEMs, SLC devices that have been selected
for Local Mode participation (ON) will continue to function across all the panel’s SLCs in a limited
manner as follows: input points will activate output points of the same Type Code point type
designations. For example, SLC inputs with “fire” point types will activate SLC outputs with “fire”
point types. Refer to
Appendix F.4, “Type Codes for Input Devices”, on page 122 for Type Code
point types. Default: OFF
ZONE MAP: Displays the zones mapped to this point. The default value assigned to control modules
during initial programming is Z000 at Position 1 (refer to
Figure 3.46), with the exception of control modules
with the following Type IDs: GEN ALARM, GEN SUPERVIS, GEN FAULT, and FAULT PEND.
To add or delete zones, press this soft key to proceed to the Module Zone Map screen. Refer to
“Zone Map” on page 48 for an illustration and explanation of the Detector Zone Map screen. The
Module Zone Map screen is the same except that Module replaces Detector in the title and the
module address appears instead of the detector address. Up to ten general, logic, release, special or
fault zones may be mapped to a control module. Position 1 has additional functionality.
Position 1 - This position is checked when a group zone disable command is issued. If the zone
number in the group zone disable command matches the zone number in the first position of
the zone map, the module point will be disabled.
Note that the group zone disable command has no effect on general alarm zone Z000.
MODULE POINT PROGRAMMING
L03M150
ZONE MAP:
Z000 , Z104 , Z105 , Z106 , Z107
Z110 , Z114 , Z115 , Z116 , Z117
WALK TEST: OFF LOCAL MODE:ON
SWITCH INHIBIT: YES ACCEPT
SILENCEABLE:NO BACK
Zone Map Position 1 - Use for group zone
disable participation.
