13 AFP-3030 Installation Manual — P/N DOC-01-037:B 25/08/2016
Installation Attaching Option Boards
Fasten option board
to the plate with four
screws (included).
OptionBoard-Door.wmf, OptionBoardInstalled-Door.wmf
Mount option board
onto stand-offs
(included) to the blank
plate
Mount single-space blank
plate onto the door.

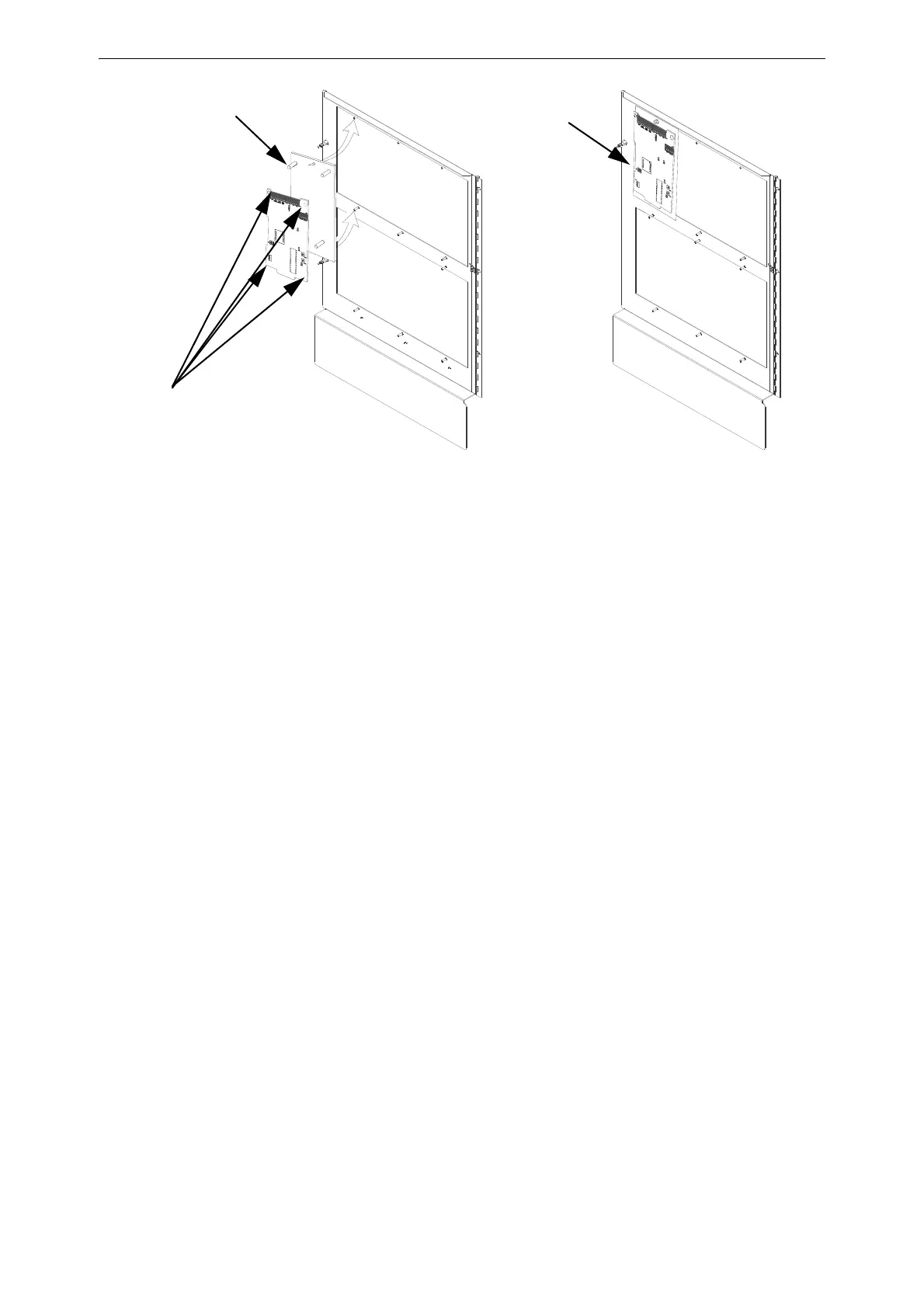

Figure 3.2 Door-Mounting Option Boards with a Single-space Blank Plate
