Notifier AFP-3030 - 2: Connecting Local and Remotely Powered Devices

23 AFP-3030 Installation Manual — P/N DOC-01-037:B 25/08/2016
Installation Connecting Power Sources and Outputs
3.10.2 Connecting Local and Remotely Powered Devices
Refer to Figure 3.16 for power connections for a locally powered device. Refer to Figures 3.17 and
3.18 for power connections to a remote or secondary device from a locally powered device.

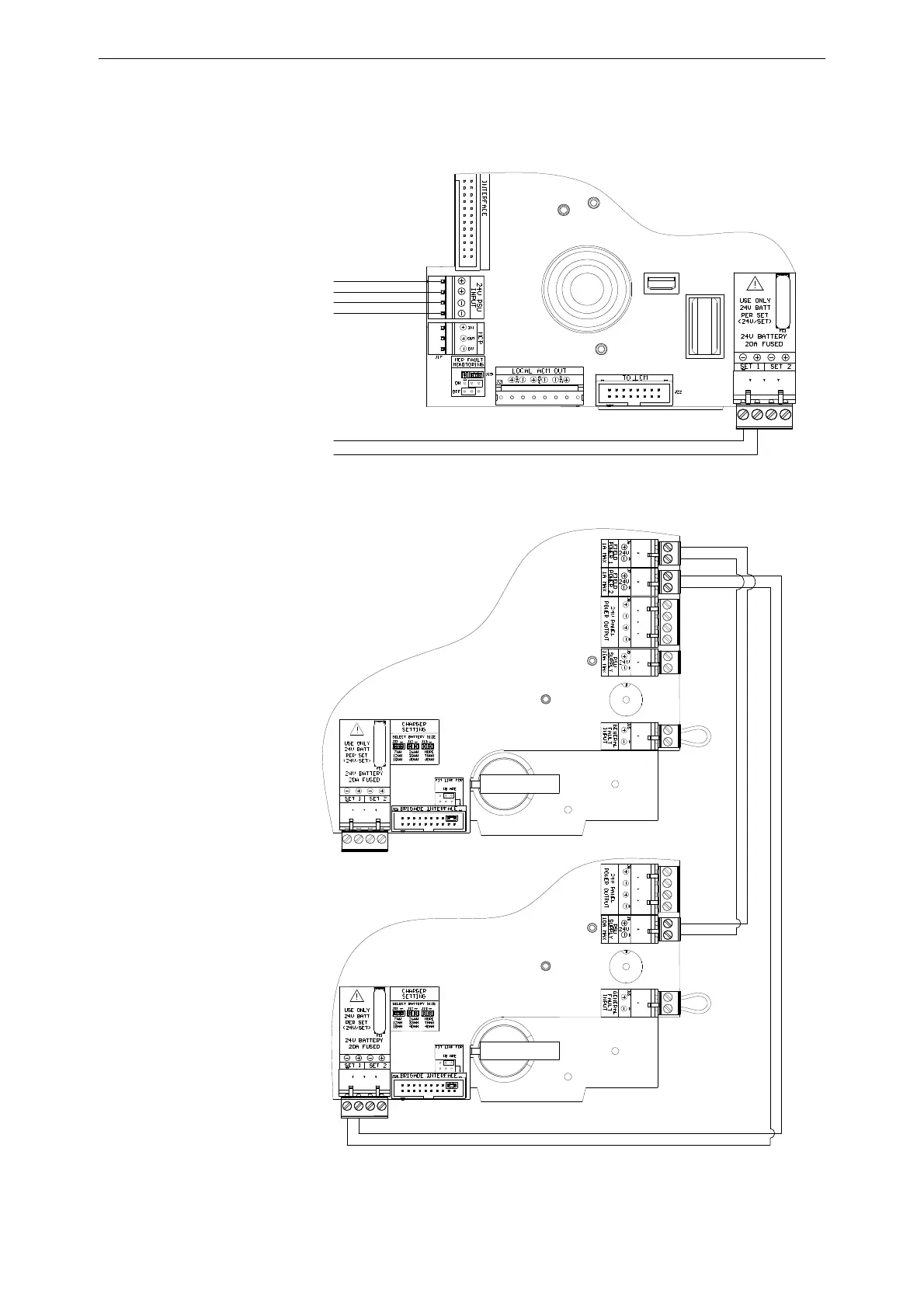

Figure 3.16 Connecting a Locally Powered CPU to power
Figure 3.17 Connecting a Remotely Powered CPU to the Main CPU
Red
Red
Black
Black
To NPS
Power
Supply
To
Battery
Black
Red
Main CPU
(Locally Powered)
Red (+)
Black (-)
Red (+)
Black (-)
Remote CPU
