AFP-3030 Installation Manual — P/N DOC-01-037:B 25/08/2016 44
Laying Out Equipment in Cabinet and Chassis Cabinet and Mounting Information
B.6 Laying Out Equipment in Cabinet and Chassis
The AFP-3030 allows for flexible system design. It mounts in a CAB650 or CAB900 backbox
using the CHS-3L or in a U-Series backbox using the CHS-4L. Follow these guidelines when
deciding where to locate equipment in the backbox. The number of layers that can be mounted in
each position of the chassis depends on the module size.
CHS-3L
The CPU and power supply assembly
mount in the top row of the CAB650
or CAB900 cabinet. The AFP-3030
keypad is door mounted in front of the
CPU and power supply assembly. The
CHS-3L Chassis is mounted below the
CPU and power supply assembly.
In the CAB900, a second CHS-3L
Chassis can be installed below the first
for additional equipment.
CHS-4L
The CPU and power supply
assembly mount in the top row of the
U-Series cabinet. The AFP-3030
keypad is door mounted in front of
the CPU and power supply assembly.
The CHS-4L Chassis is mounted
below the CPU and power supply
assembly.
In the 28U and 40U cabinets,
additional CHS-4L Chassis can be
installed below the first for
additional equipment.
CAUTION:
IT IS CRITICAL THAT ALL MOUNTING HOLES OF THE FIRE ALARM CONTROL PANEL ARE
SECURED WITH A SCREW OR STAND-OFF TO INSURE CONTINUITY OF EARTH GROUND.

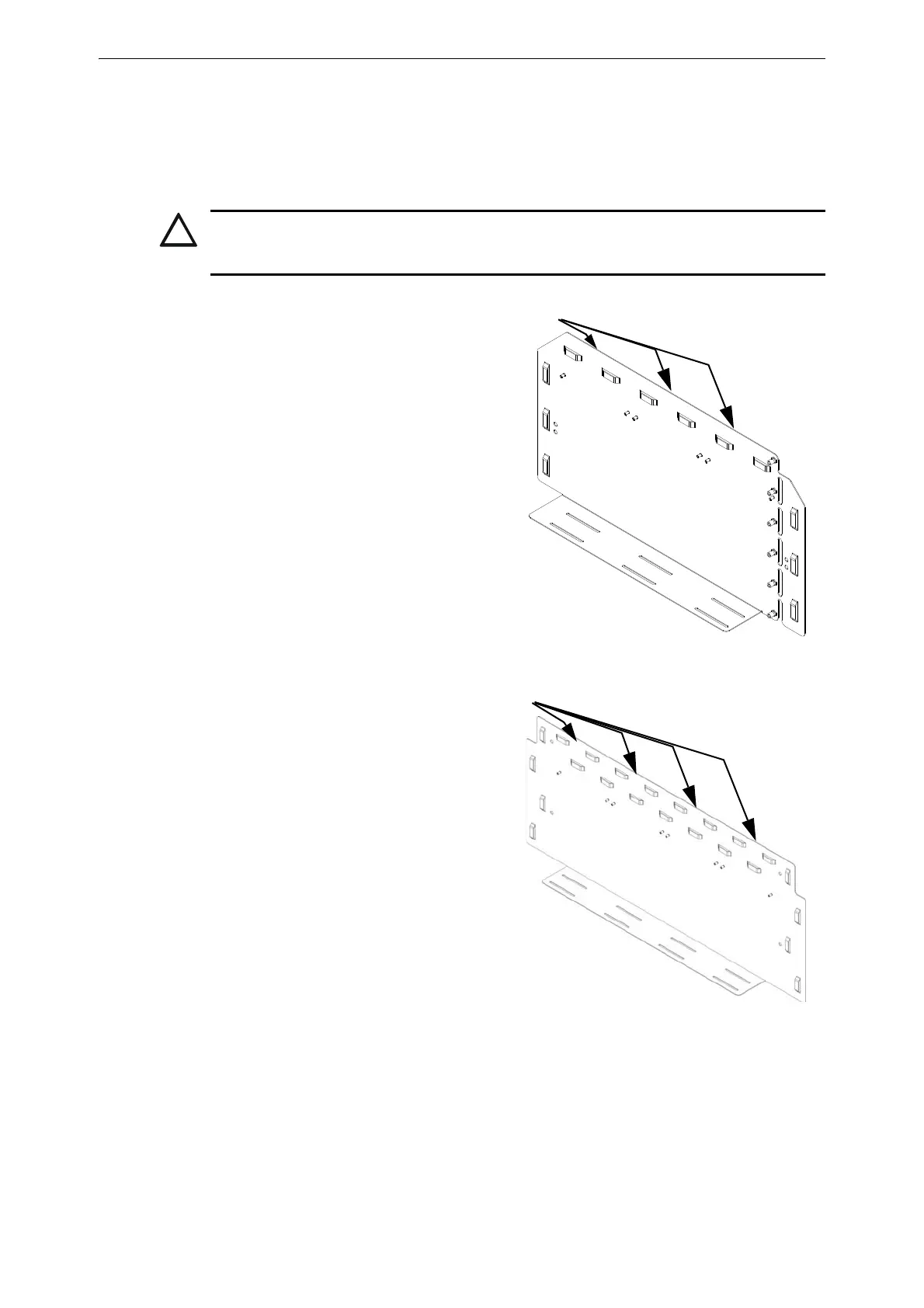

Figure B.6 Chassis CHS-3L
1
2
3
Three positions
on chassis
CHS-3L
CHS-3L-NEW.wmf
Figure B.7 Chassis CHS-4L
1
2
3
Four positions
on chassis
CHS-3L
4
