Notifier AM-6000 User Manual

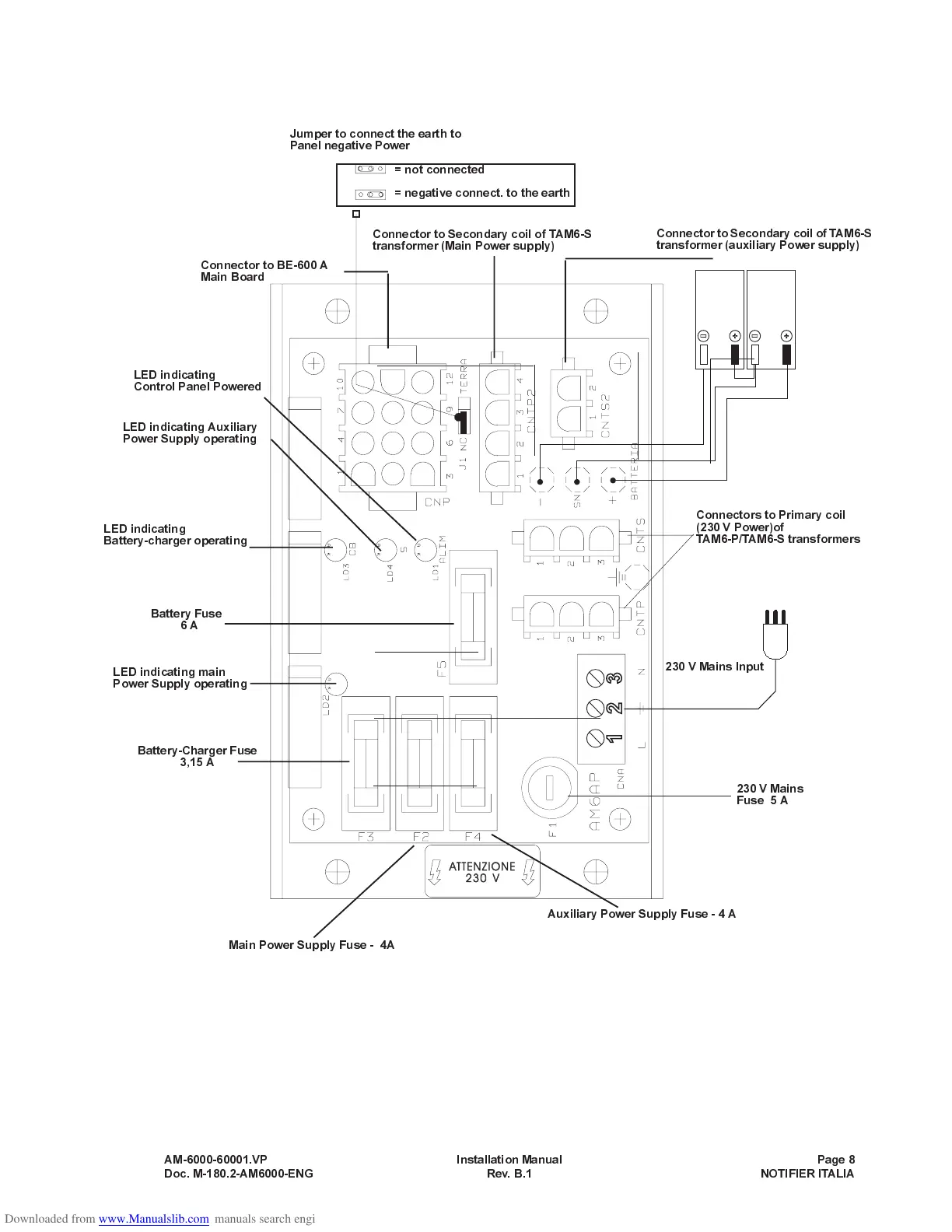

“BPS-600" BOARD for 230 V MAINS WIRING
AM-6000-60001.VP Installation Manual Page 8
Doc. M-180.2-AM6000-ENG Rev. B.1 NOTIFIER ITALIA
ATTENZIONE
230 V
ATTENZIONE
230 V
LED indicating
Battery-charger operating
LED indicating Auxiliary
Power Supply operating
LED indicating
Control Panel Powered
Battery Fuse
6A
Connectors to Primary coil
(230 V Power)of
TAM6-P/TAM6-S transformers
Connector to Secondary coil of TAM6-S
transformer (auxiliary Power supply)
Connector to BE-600 A
Main Board
Jumper to connect the earth to
Panel negative Power
LED indicating main
Power Supply operating
Battery-Charger Fuse
3,15 A
Main Power Supply Fuse - 4A
Auxiliary Power Supply Fuse - 4 A
230 V Mains
Fuse 5 A
230 V Mains Input
Connector to Secondary coil of TAM6-S
transformer (Main Power supply)
= not connected
= negative connect. to the earth
