Notifier AM-6000 - Cabinet

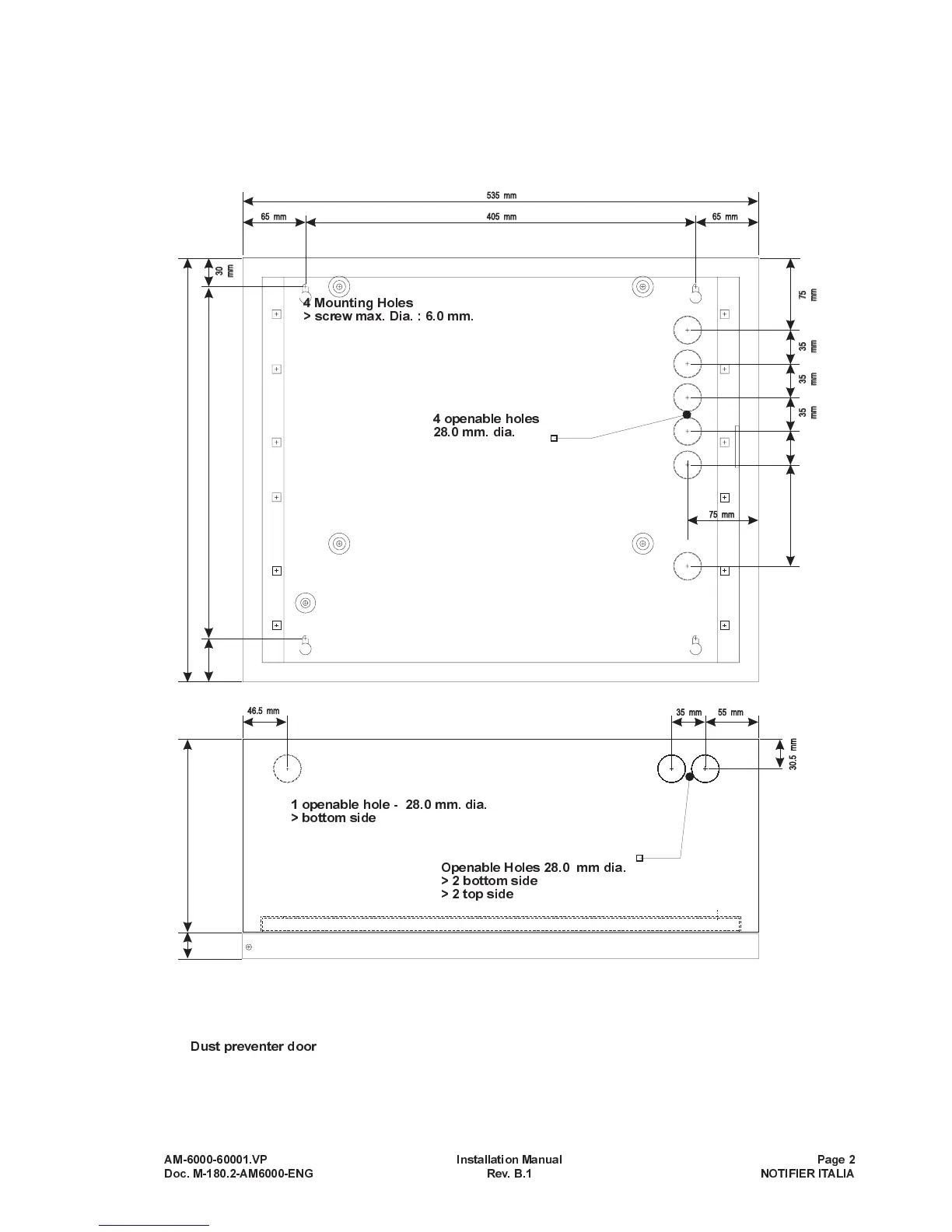

CABINET
AM-6000-60001.VP Installation Manual Page 2
Doc. M-180.2-AM6000-ENG Rev. B.1 NOTIFIER ITALIA
65 mm 405 mm
535 mm
65 mm
75 mm
55 mm
46.5 mm
30.5 mm
35 mm
30
mm
30
mm
35
mm
35
mm
75
mm
75
mm
35
mm
35
mm
35
mm
35
mm
35
mm
35
mm
105 mm 105 mm
45
mm
45
mm
365 mm 440 mm
200 mm
30 mm
.
.
4 Mounting Holes
> screw max. Dia. : 6.0 mm.
4 openable holes
28.0 mm. dia.
1 openable hole - 28.0 mm. dia.
> bottom side
Openable Holes 28.0 mm dia.
> 2 bottom side
> 2 top side
Dust preventer door
