Notifier AM-6000 User Manual

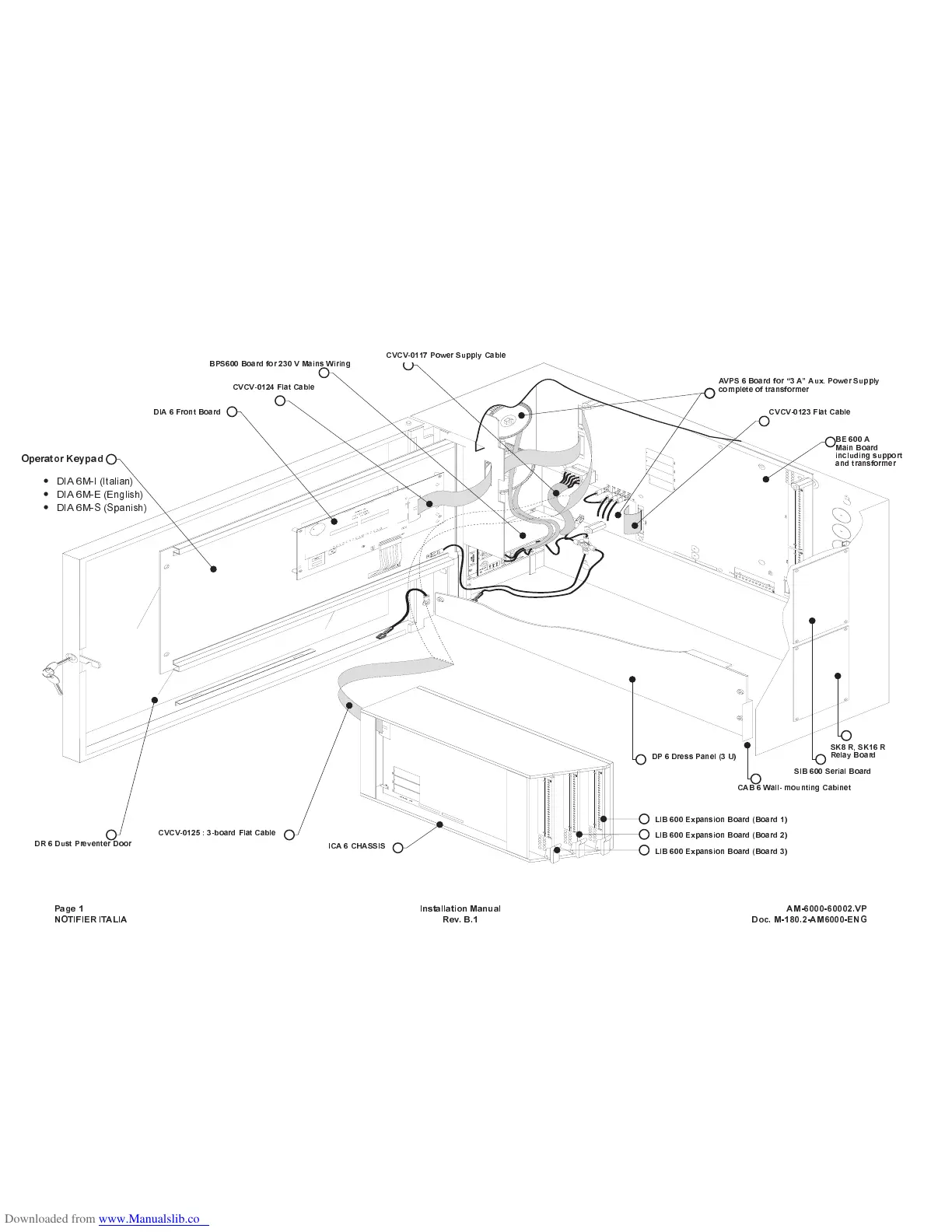

AM-6000 EXPLODED VIEW
Page 1 Installation Manual AM-6000-60002.VP
NOTIFIER ITALIA Rev. B.1 Doc. M-180.2-AM6000-ENG
ATTENZIONE
230 V
ATTENZIONE
230 V
1
26
1
1
12
12
1
26
1
26
1
26
AVPS 6 Board for 3 A Aux. Power Supply
complete of transformer
BE 600 A
Main Board
including support
and transformer
CVCV-0117 Power Supply Cable
DR 6 Dust Preventer Door
CVCV-0125 : 3-board Flat Cable
ICA 6 CHASSIS
LIB 600 Expansion Board (Board 1)
LIB 600 Expansion Board (Board 2)
LIB 600 Expansion Board (Board 3)
DP 6 Dress Panel (3 U)
CVCV-0123 Flat Cable
CAB 6 Wall- mounting Cabinet
SIB 600 Serial Board
SK8 R, SK16 R
Relay Board
BPS600 Board for 230 V Mains Wiring
CVCV-0124 Flat Cable
DIA 6 Front Board
Operator Keypad
•
DIA 6M-I (Italian)
•
DIA 6M-E (English)
•
DIA 6M-S (Spanish)
