Notifier AM-6000 - DIA-6: Front Panel Display and Keypad Interface Layout

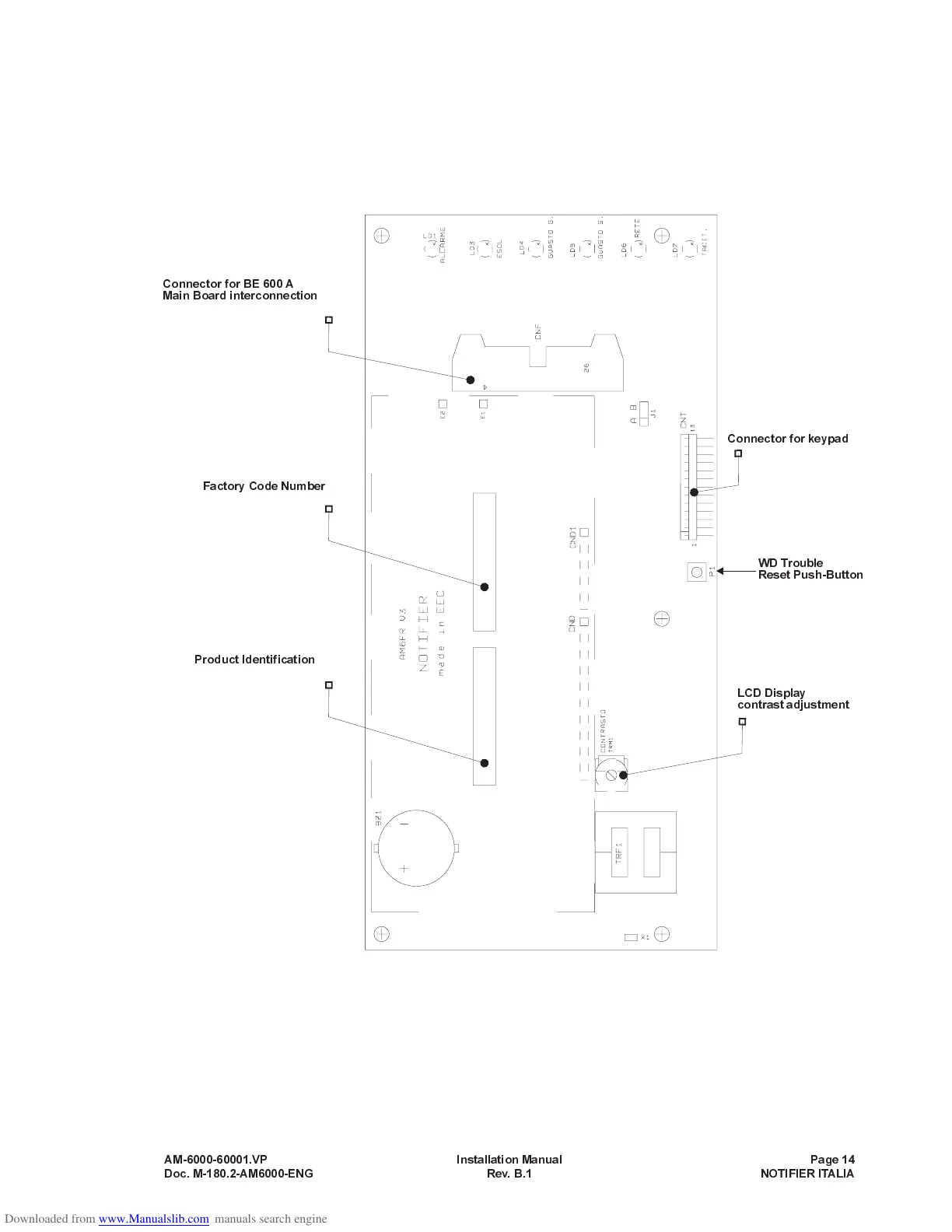

“DIA-6":FRONT PANEL DISPLAY and KEYPAD INTERFACE LAYOUT
AM-6000-60001.VP Installation Manual Page 14
Doc. M-180.2-AM6000-ENG Rev. B.1 NOTIFIER ITALIA
LCD Display
contrast adjustment
Product Identification
Factory Code Number
Connector for keypad
Connector for BE 600 A
Main Board interconnection
WD Trouble
Reset Push-Button
