Notifier AM-6000 - BE-600 A Main Board Details

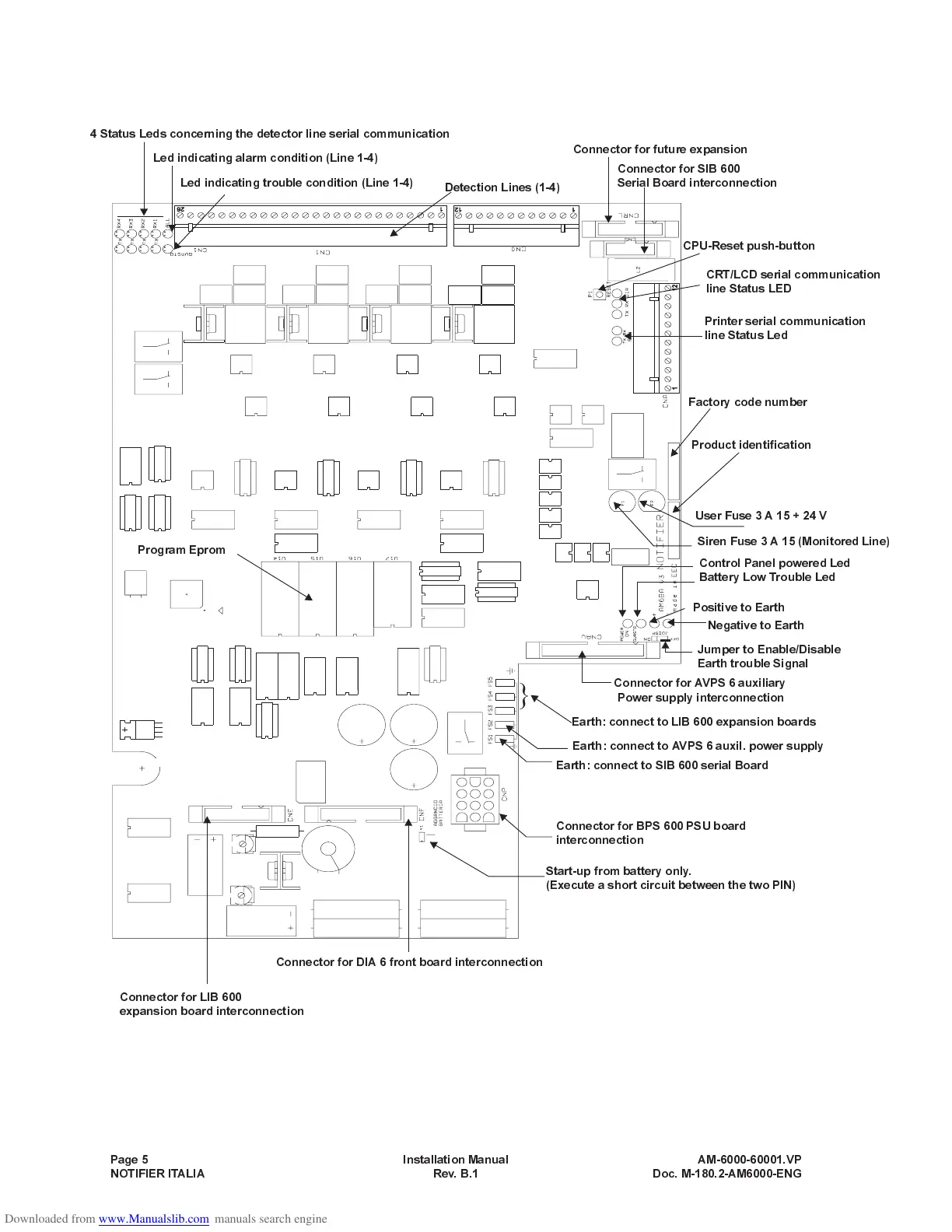

“BE-600 A” MAIN BOARD LAYOUT
Page 5 Installation Manual AM-6000-60001.VP
NOTIFIER ITALIA Rev. B.1 Doc. M-180.2-AM6000-ENG
1 26
1
1
12
12
Led indicating trouble condition (Line 1-4)
CPU-Reset push-button
Led indicating alarm condition (Line 1-4)
Connector for SIB 600
Serial Board interconnection
CRT/LCD serial communication
line Status LED
Product identification
Factory code number
Siren Fuse 3 A 15 (Monitored Line)
Jumper to Enable/Disable
Earth trouble Signal
Start-up from battery only.
(Execute a short circuit between the two PIN)
Connector for BPS 600 PSU board
interconnection
Earth: connect to SIB 600 serial Board
Earth: connect to LIB 600 expansion boards
Control Panel powered Led
Battery Low Trouble Led
Printer serial communication
line Status Led
Connector for AVPS 6 auxiliary
Power supply interconnection
Earth: connect to AVPS 6 auxil. power supply
Connector for DIA 6 front board interconnection
Connector for LIB 600
expansion board interconnection
Connector for future expansion
4 Status Leds concerning the detector line serial communication
Detection Lines (1-4)
Program Eprom
User Fuse 3 A 15 + 24 V
Positive to Earth
Negative to Earth
}
