Notifier AM-6000 - Wiring Main Board External Devices

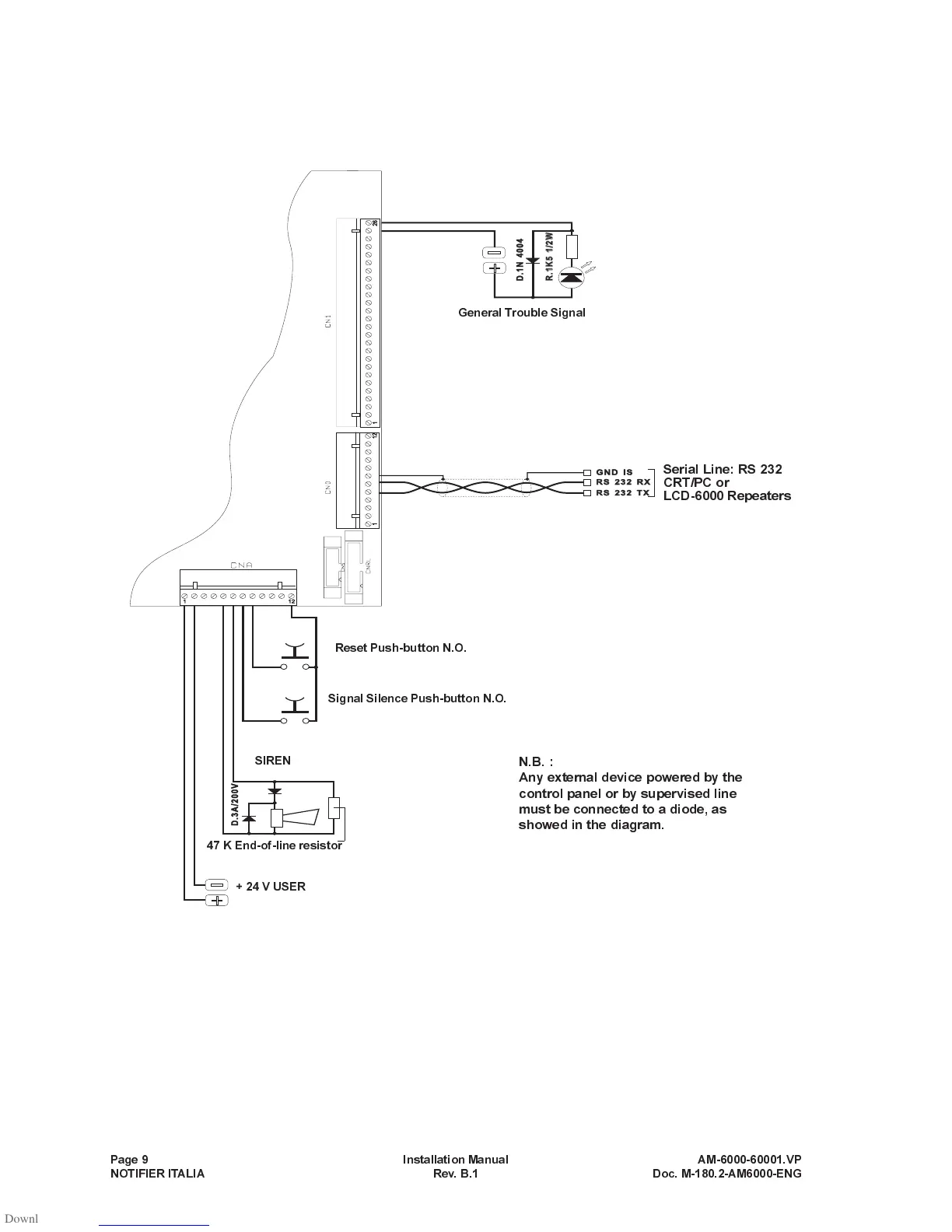

WIRING THE “BE-600 A” MAIN BOARD EXTERNAL DEVICES
Page 9 Installation Manual AM-6000-60001.VP
NOTIFIER ITALIA Rev. B.1 Doc. M-180.2-AM6000-ENG
1
26
1
1
12
12
RS 232 RXRS 232 RX
D.3A/200V
D.1N 4004 R.1K5 1/2WR.1K5
1/2W
RS 232 TXRS 232 TX
GND IS
General Trouble Signal
Serial Line: RS 232
CRT/PC or
LCD-6000 Repeaters
Reset Push-button N.O.
Signal Silence Push-button N.O.
SIREN
47 K End-of-line resistor
+ 24 V USER
N.B. :
Any external device powered by the
control panel or by supervised line
must be connected to a diode, as
showed in the diagram.
