Notifier AM-6000 - Detector and Module Loop Wiring

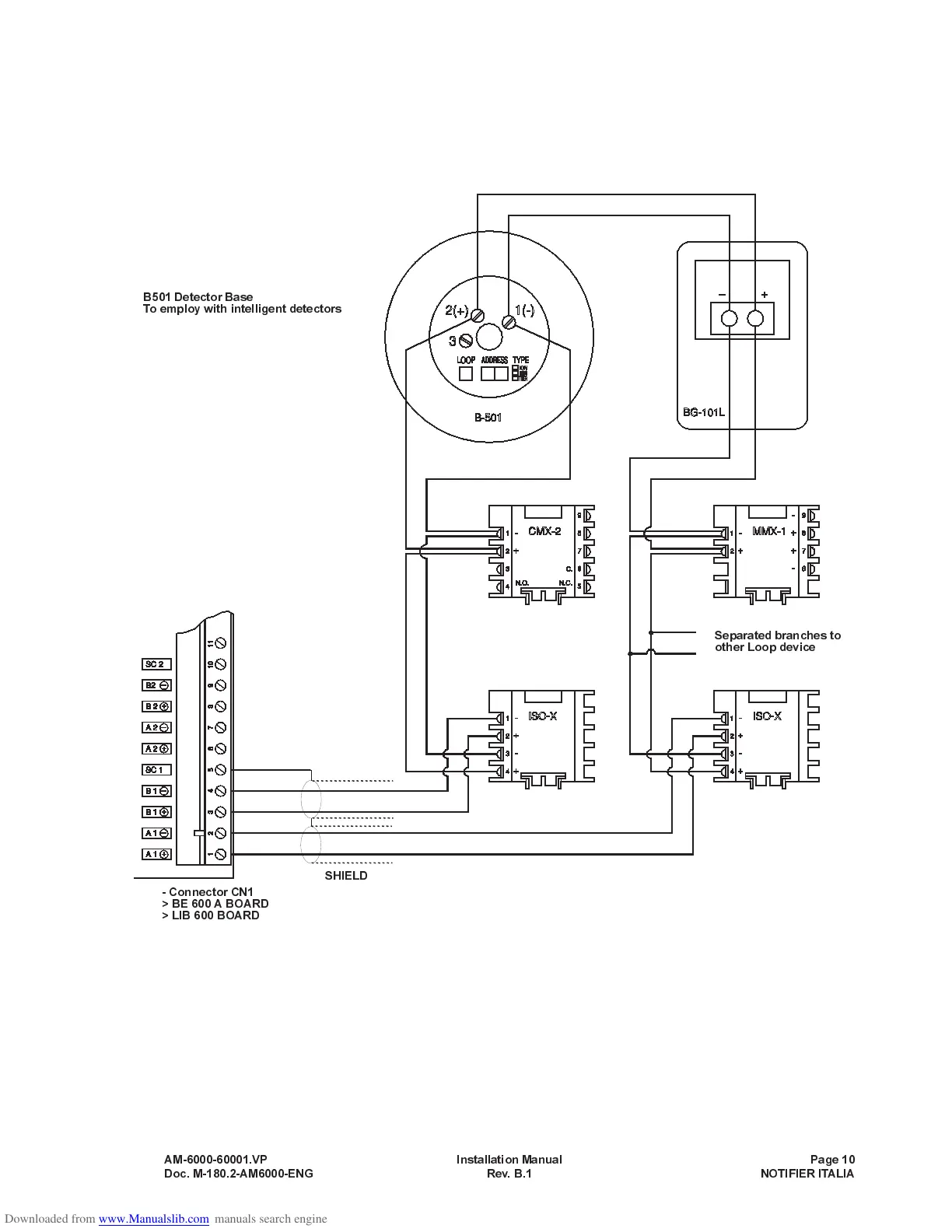

DETECTOR AND MODULE WIRING
Typical LOOP line (style 6)
AM-6000-60001.VP Installation Manual Page 10
Doc. M-180.2-AM6000-ENG Rev. B.1 NOTIFIER ITALIA
B501 Detector Base
To employ with intelligent detectors
Separated branches to
other Loop device
- Connector CN1
> BE 600 A BOARD
> LIB 600 BOARD
SHIELD
