APPENDIX A - AFP-200
PN 50702:B2 4/14/03 21
Connecting the APS-6R to an AFP-200 Power Supply
Make the following connections as shown in the figure below.
• Connect primary power from TB1 on the APS-6R to terminal
block TB7 (
NEUT and HOT) on the AFP-200.
• Connect secondary power from TB3 on the APS-6R to terminal
block J3 (+ and –) on the AFP-200.
• Connect trouble input from J3 on the APS-6R to terminal block
J11 on the AFP-200.

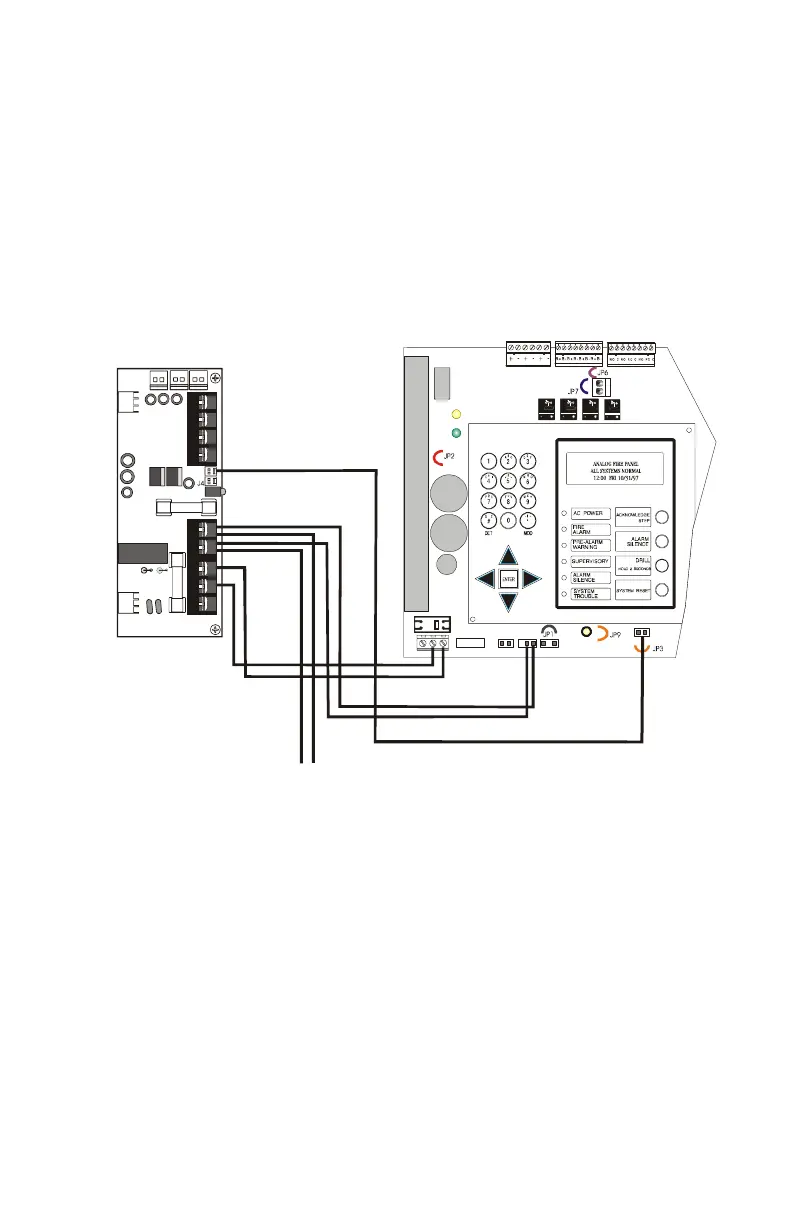

Figure 12 Wiring to AFP-200 Power Supply
J2
J9
J3
J1
TB2
JP3JP2
APS-6R to AFP-200ps.cdr
To battery backup
+
-
