APPENDIX B - AFP-300/AFP-400
22 PN 50702:B2 4/14/03
APPENDIX B - AFP-300/AFP-400
Mounting an APS-6R in a CAB-400AA Backbox
An Auxiliary Power Supply is mounted as shown in the figure below.
To mount the APS-6R, follow these instructions:

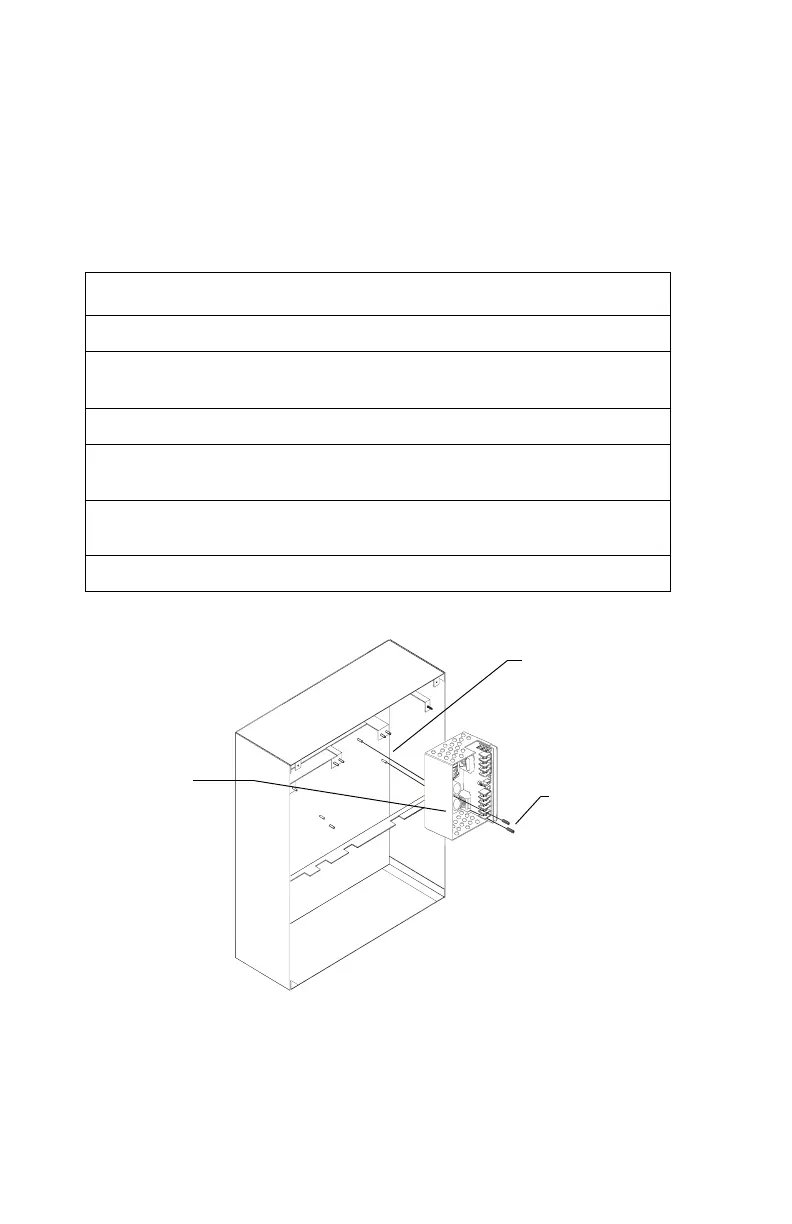

Figure 13 Mounting an APS-6R to a CAB-400AA Backbox
Step Action
1 Remove plastic cover from APS-6R.
2 If 240 VAC is to be used, cut JP1 jumper at this time. See instructions
and high voltage warning in Page 18 in "Configuring the APS-6R".
3 Place the APS-6R onto the mounting studs in the backbox.
4 Insert a standoff through each of the printed circuit board mounting
holes, threading each standoff to the mounting studs.
5 Tighten the standoffs until the APS-6R is securely fastened to the
backbox.
6 Reinstall the plastic chassis cover.
Standoff
(2 places)
APS-6R
Assembly
CAB-400AA
Backbox
Mounting
Studs
APS-6R to CAB-AA.cdr
