APPENDIX D - System 500
PN 50702:B2 4/14/03 25
APPENDIX D - System 500
Mounting an APS-6R in a CAB-500 Backbox
An Auxiliary Power Supply is mounted in the same way as the AFP-
400, see Appendix B.
Connecting the APS-6R to an MPS-24BRB
Make the following connections as shown in the figure below.
• Connect primary power from TB1 on the APS-6R to
MPS-24BRB terminal block TB1, Pin 3(
NEUT) and Pin 4(HOT).
• Connect secondary power from TB3 on the APS-6R to
MPS-24BRB terminal block TB3, Pin 1(+) and Pin 2(–).
• Connect trouble input from J3 on the APS-6R to MPS-24BRB
terminal block P4.

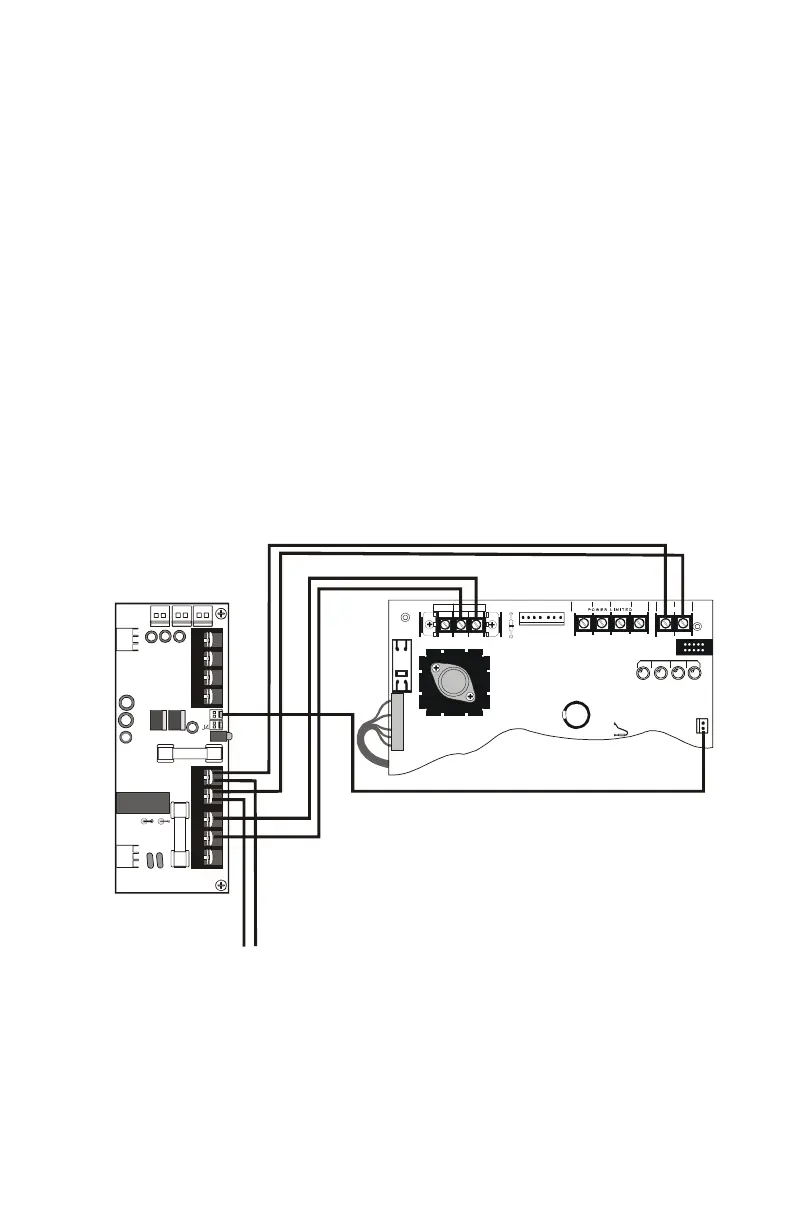

Figure 16 Wiring to MPS-24BRB
J2
J9
J3
J1
TB2
JP3JP2
JP3
P3
P4
TB3
P1
TB2
TB1
CB1
P2
R55
1 2 3 4 6 7 8
7
5
3
2
1
EARTH
AC NEUT
COMM ON
COMM ON
BATT -
+24 VRESET
AC HOT
MPS-24BPCC
REV ___
+24 VPOWER
BATT +
TROUBL ES
AC BATT +EF -EF
2 3 4
1 2 3 4
1 2
APS-6R to MPS-24B.cdr
To battery backup
+
-
