Notifier LCD-80 User Manual

12 PN 15037:D2 9/9/02

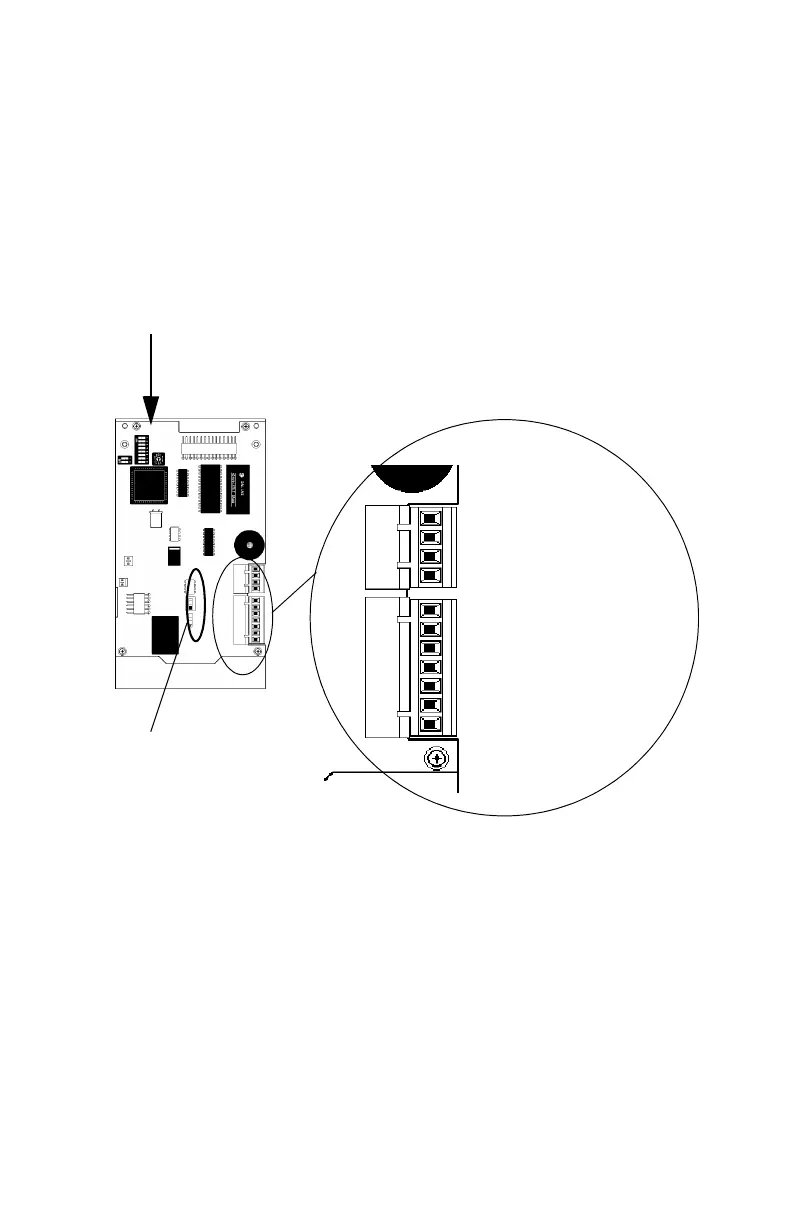

Figure 2-1 Configuring the LCD-80 for ACS Mode
SW1-1)Set “ON” for Receive Only
operation (for LCD-80s in addition
to those that occupy available
addresses).
SW1-2)Set “ON” for European Time.
SW1-3)Set “ON” to Piezo Disable.
SW1-4)Set “ON” to disable Acknowledge,
Signal Silence and Reset
switches.
SW1-5) Size (see Table 2-1 below).
SW1-6) Size (see Table 2-1 below).
SW1-7) Set “OFF” in this mode.
SW1-8) Not used.
Operating Mode Switches
Set both switches in the UP
position for ACS Mode.
ACS Mode Connections
(power-limited)
-EIA-485 In
-EIA-485 Out
+EIA-485 In
+EIA-485 Out
EIA-232 Transmit (to printer)
EIA-232 Reference
- System Common Out
- System Common In
+24 Volts Out
+24 Volts In
EIA-232 Receive (from printer)
4
3
2
1
7
6
5
4
3
2
1
P1
P2
8-position DIP switch (SW1)
