PN 15037:D2 9/9/02 47
APPENDIX B AIM-200 Point
Annunciation
The CPU-5000 can be programmed for an alternate method of
annunciating the AIM-200. Up to 192 intelligent devices can be
annunciated on a single LCD-80 annunciator. The System 5000
annunciates the AIM-200 installed directly to the right of the CPU-
5000. Note that an annunciator cannot be used to execute manual ON/
OFF control of intelligent AIM-200 points only standard System 5000
zones. The option provides annunciation of up to 256 points for the
System 5000, broken down as follows:
Annunciator Address 1:
• 8 CPU points (CPU point shift not an option).
• 8 unusable points (redundant AIM-200 points).
• 48 points mapped to the next six modules installed in the System
5000 (which can also be AIM-200s for annunciation of their 8
software zones).
Annunciator Address 2
Intelligent Detectors, addressed 1-64, on the AIM-200 installed next
to the CPU-5000.

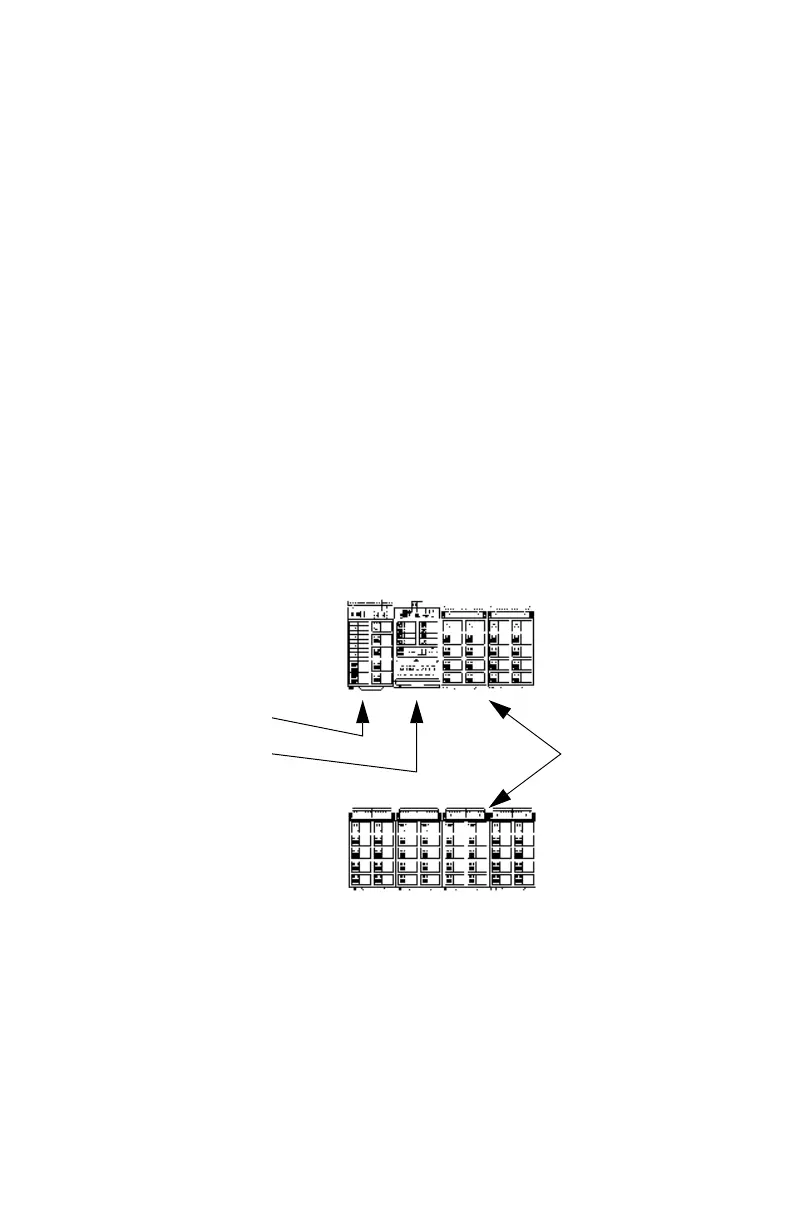

8 CPU points
8 unusable
AIM-200 points
48 points mapped to
the next six modules
installed.
To Next Page
