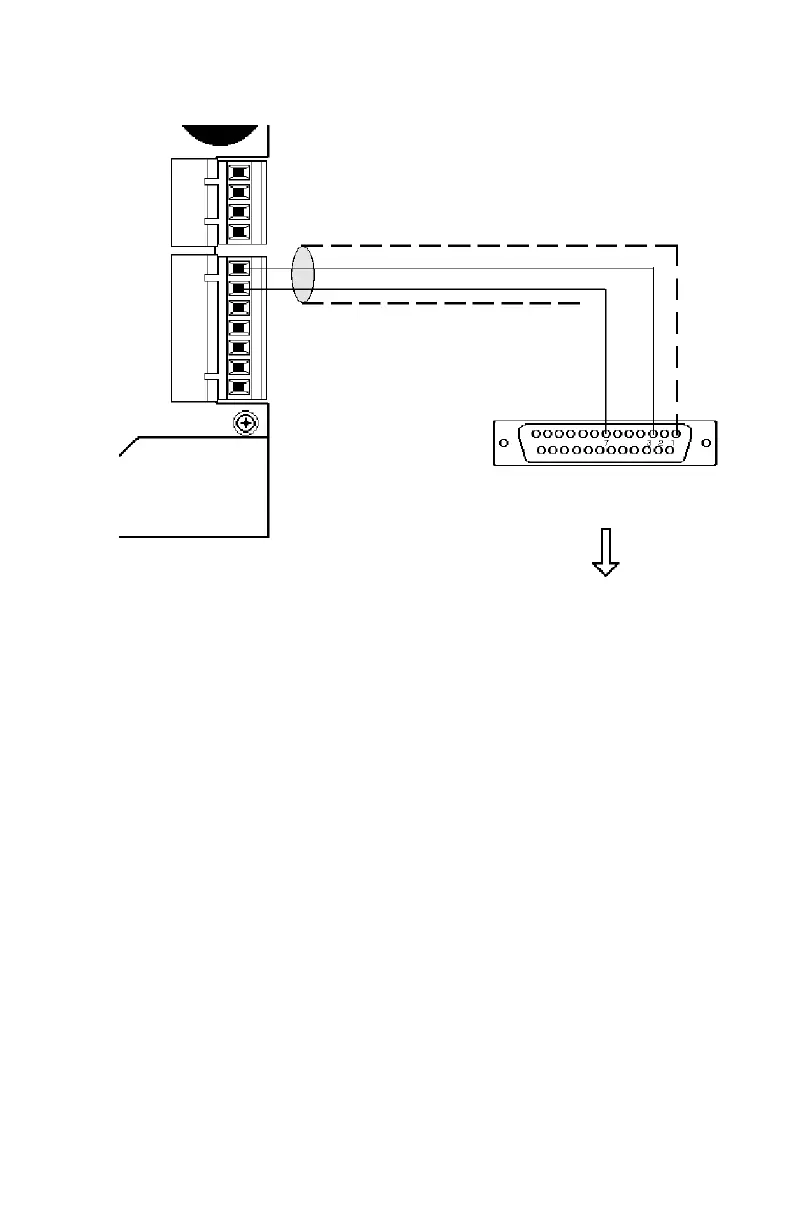

Figure 2-4 Remote Printer Connection Diagram (ACS Mode)
Shield (connect to chassis common on
printer - no connection at LCD-80)
4
3
2
1
7
6
5
4
3
2
1
P1
P2
Twisted shielded pair
Plug this DB-25 connector into
the EIA-232 port of the printer.
PRN
See Section 2.3 “Printer
Configuration” for setup.
